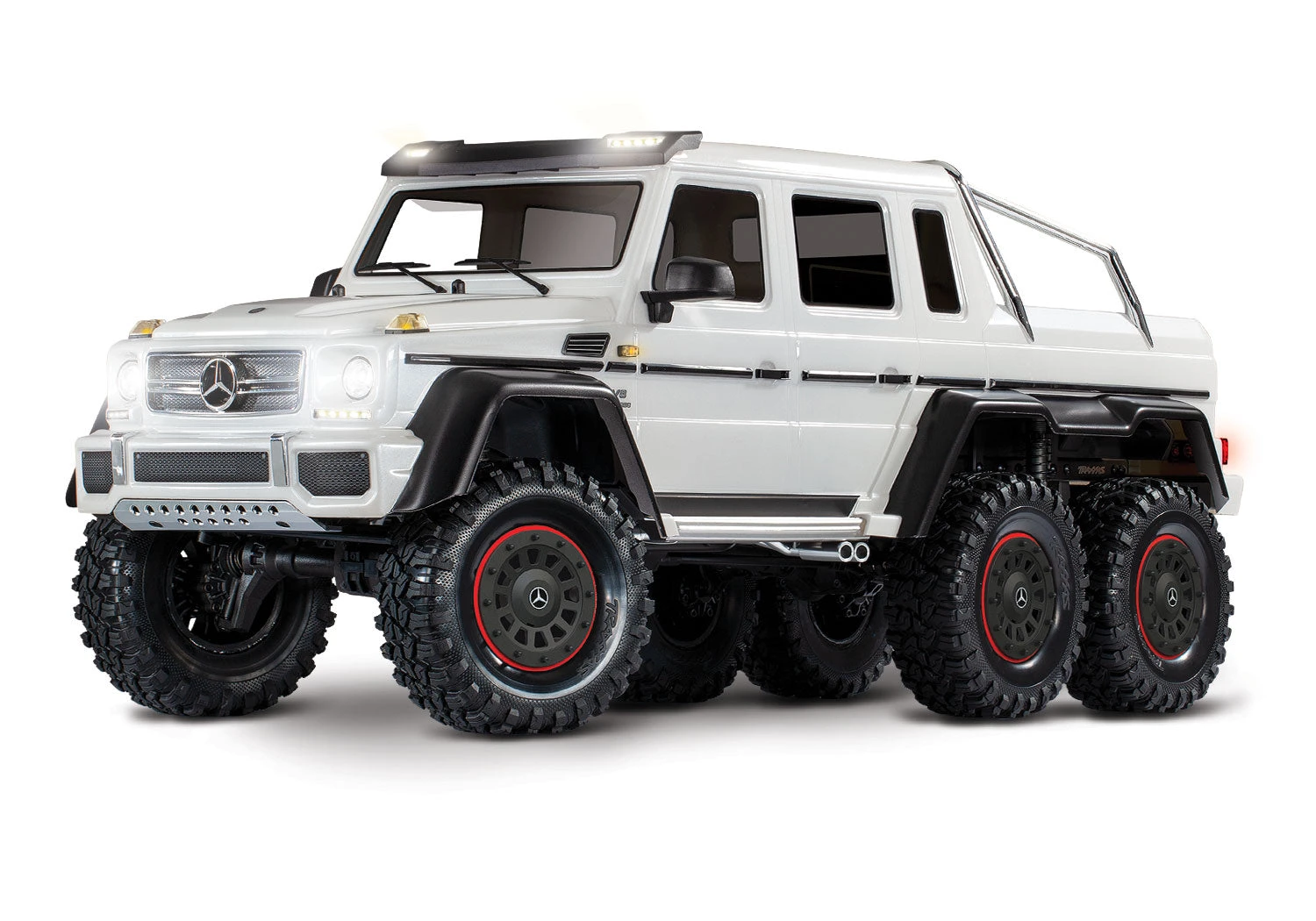

Traxxas 88096-4 TRX-6 RTR White Mercedes Benz G 63 AMG 6×6 Trail Crawler

“Special Edition”

The Mercedes-Benz G 63 AMG 6×6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6×6 with an officially licensed detailed scale replica built on the proven TRX-6 platform. Six drive wheels, three T-Lock™ remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.

SUPERIOR 6X6 DESIGN
A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.

EXCEPTIONAL BODY DETAIL
The TRX-6 Mercedes-Benz G 63 AMG 6×6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.

FACTORY-EQUIPPED LED LIGHTING
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.

FEATURES:

• Officially Licensed Mercedes-Benz G 63 AMG 6×6 Body
• Scale details: chrome grille, chrome running boards, side mirrors, side trim, windshield visor, door handles, wipers, and dual side exhaust
• Authentic decal sheet
• Full Nylon composite wheel wells and floor pans
• Chrome roll bars
• Chrome front and rear skid plates
• Installed LED Light Kit
• Includes headlights, tail lights, roof lights, and side markers
• Sealed waterproof design
• Color-coded power distribution block for easy and secure connections
• Traxxas LED lighting module
• Regulated to provide consistent and reliable power output
• Eliminates overheating, glitching, and other electronics issues
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan® 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• Innovative Chassis Design
• 1.5 mm thick steel frame rails increase torsional rigidity
• Extended wheelbase for added stability on inclines
• Intermediate drive axle to reduce high-centering
• Tough reinforced bumpers with integrated skid plates
• Chrome running boards adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 6-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — Dual triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter lower steel link rods with 4 mm threaded ends
• Wheels and Tires
• 2.2” Beadlock-style wheels with hub inserts
• Unique 2.2” all-terrain tires with trail-tuned foam inserts
• Trail-tuned S1 rubber compound
• 12 mm steel hex
• Transmitter
• TQi™ 2.4GHz 4-channel transmitter
• Traxxas Link enabled
• Telemetry ready #6533 5-channel micro receiver with failsafe
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

SPECIFICATIONS:

• Length: 25.61 inches (651 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Ground Clearance: 3.14 inches (80 mm)
• Weight: 8.8 pounds (3.99 kg)
• Height: 10.78 inches (274 mm)
• Wheelbase (to intermediate axle): 12.76 inches (324 mm)
• Wheelbase (to rear axle): 17.87 inches (454 mm)
• Approach Angle: 60°
• Departure Angle: 55°
• Breakover Angle: 57°
• Front Shock Length: 3.54 inches (90 mm)
• Rear Shock Length: 3.54 inches (90 mm)
• Battery Tray: 158.75 L x 47 W x 23/26 mm H
• Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
• Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
• Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor (electric): Titan® 21T Reverse Rotation
• Transmission: 2-speed High/Low, Remote Shifting
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-Driven 6WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1
• Motor:
• Type: High-torque brushed motor
• Size: 550
• Weight: 390g (13.76oz)
• Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
• Turns: 21T reverse rotation
• Voltage: 16.8V
• ESC:
• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Case Size: 1.23” W x 2.18” D x 1.04” H
• Weight: 2.6oz (74g)
• Motor Limit: 21-turns (550 size)
• On Resistance Forward: 0.004 Ohms
• On Resistance Reverse: 0.004 Ohms
• Peak Current – Forward: 100A
• Peak Current – Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18ABEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5”
• Input Harness Wire: 26 Gauge / 14.5”
• Transistor Type: MOSFET
• PWM Frequency: 1700Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
• Single-button setup: Yes, Traxxas EZ-Set®

* Patented
