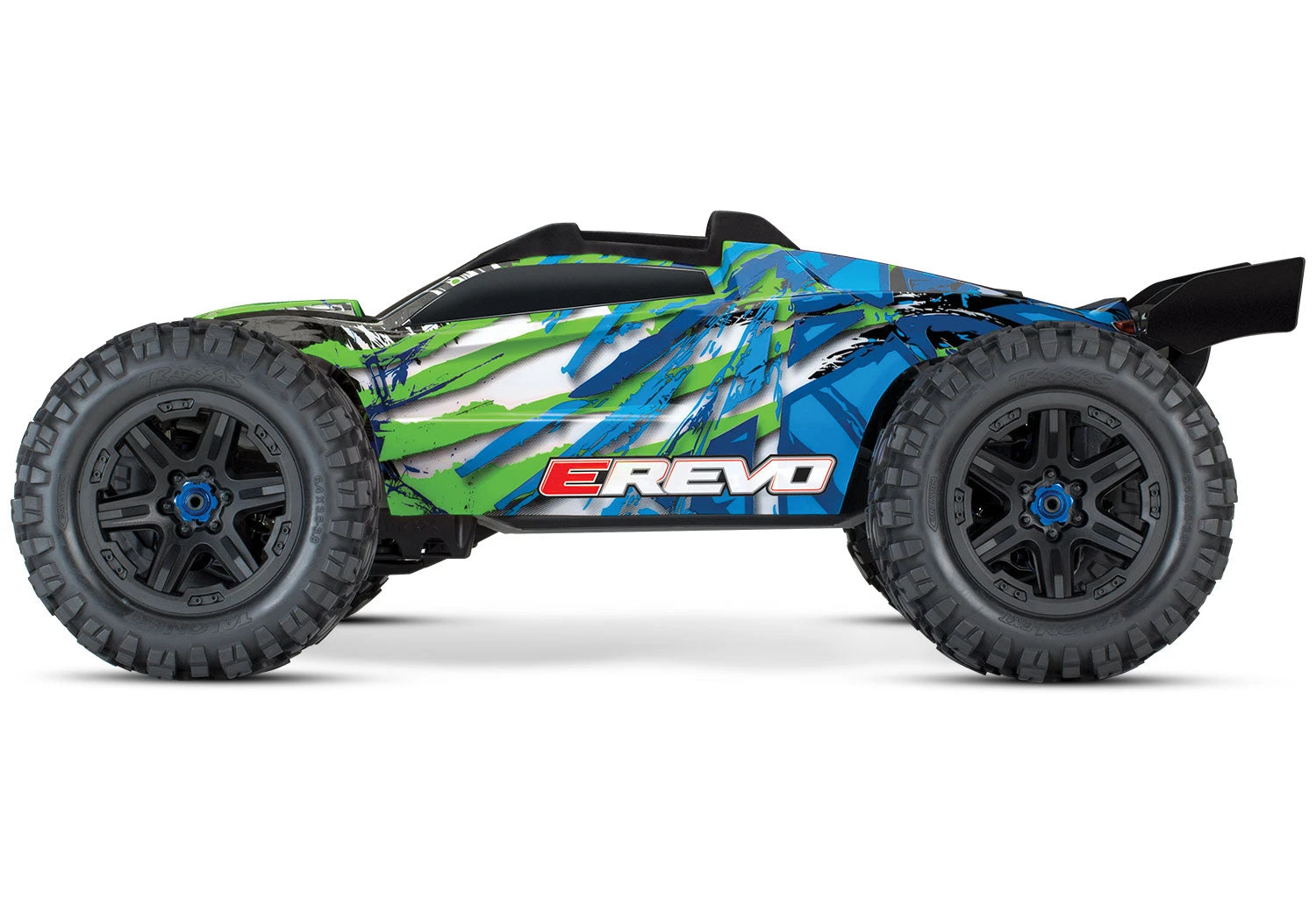

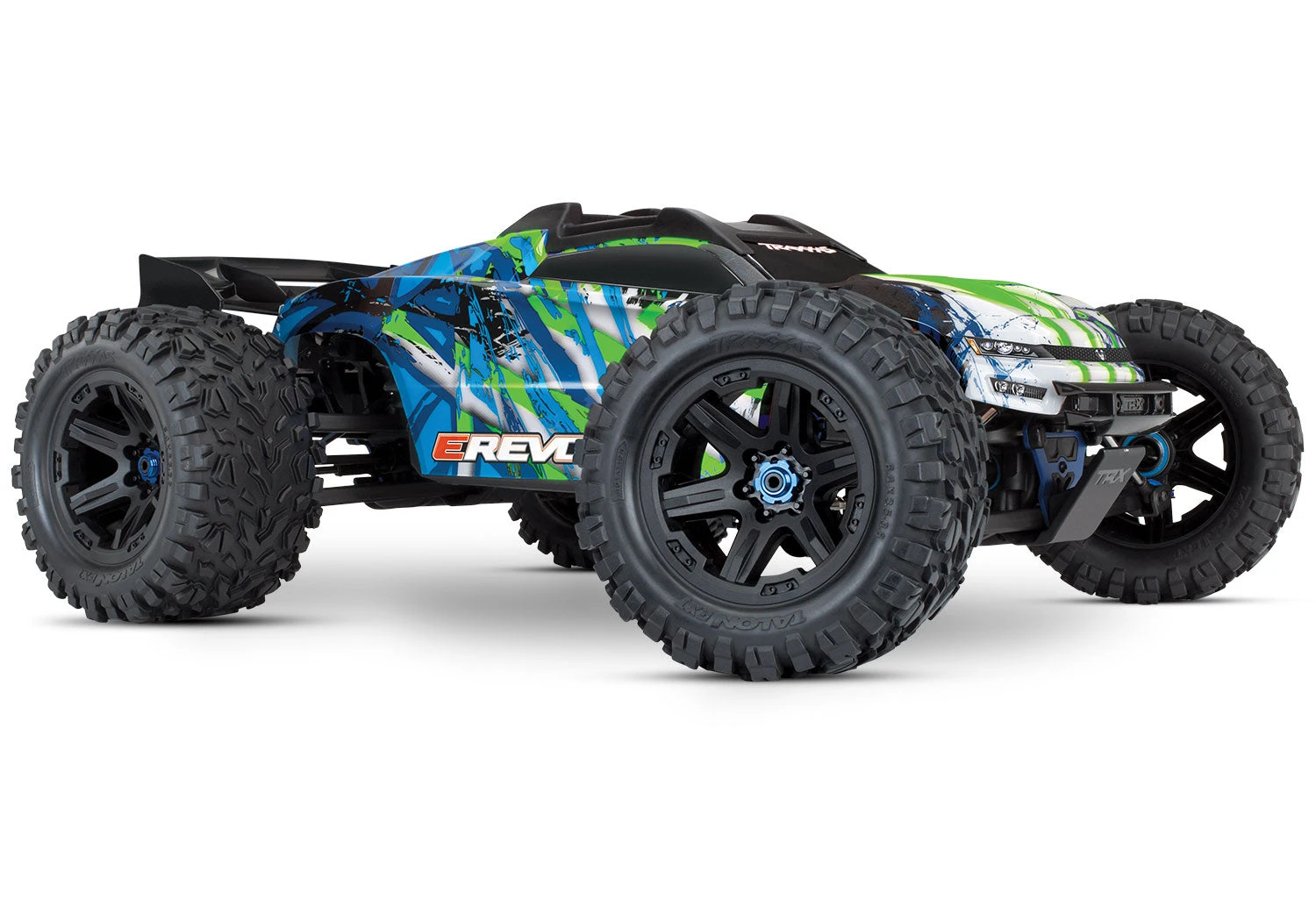

Traxxas 86086-4 E-Revo 2.0 VXL Brushless 1/10 Scale 4WD Brushless Electric Monster Truck Green

Originally designed as a lightweight racing truck, the E-Revo set the benchmark for monster truck performance. The next generation of E-Revo retains its legendary innovation and technology, but fortifies it with brute strength to deliver the ultimate monster machine. Get ready for a whole new level of power, strength, and speed.

There is no other monster truck like E-Revo. It embodies the highest level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation, and unheard of speed that reset every benchmark for racing monster truck performance. Now there is a new generation of E-Revo. This new E-Revo retains all the benefits of its original ground-breaking, award-winning design, but fortifies them with brute strength and an intense, take-no-prisoners attitude to deliver what is simply the ultimate 6s monster. Get ready for a whole new level of power, strength, and speed.

MAXX-SPEC™ DRIVELINE
Taking inspiration from its big brother X-Maxx, E-Revo’s drive system has evolved to meet today’s demands for punishing 6s performance. Jump higher. Rip harder. Release your inner beast mode. E-Revo comes out of the box ready to attack, ready for wherever your imagination takes you.

SELF-RIGHTING
E-Revo’s over-the-top power can sometimes land you upside down. Traxxas’ exclusive Self-Righting system keeps the fun going with minimal interruption. Simply press a button on the transmitter and, in most circumstances, E-Revo will be back on its wheels in just seconds.

BRUTAL 6s POWER
Armed with a fortified drivetrain, E-Revo’s VXL-6s power system now pounds out more tire-scorching motivation than ever before, all the way to 70+ mph. Advanced design and sophisticated microprocessor control make this the most punchy and reliable high-voltage VXL power system ever. Traxxas Extreme Power is the new normal and E-Revo comes ready for any challenge.

FEATURES:

• VXL-6s™ Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors
• Velineon® 2200kV Brushless Motor
• 4-pole 2200kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Up to 70+ mph with Two 3s LiPo Batteries
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Drivetrain
• Maxx-Spec™ steel CV driveshafts
• 8mm steel stub axles
• Heavy-duty telescoping center driveshafts
• Transmission
• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive
• Cush Drive (no slipper clutch)
• 5mm aluminum motor plate
• Differentials
• Heavy-duty sealed 4-gear design
• Redesigned bulkheads with underside access
• Maxx-Spec™ ring and pinion gears
• Large 8mm output shafts
• Steel drive cups
• Suspension
• Oil-filled GTR shocks with height-adjustable threaded aluminum bodies
• Inboard rocker arm suspension design for extreme articulation
• Low-CG design improves handling and protects components
• Upgraded heavy-duty axle carriers with oversized bearings
• Heavy-duty rocker arms and rod ends

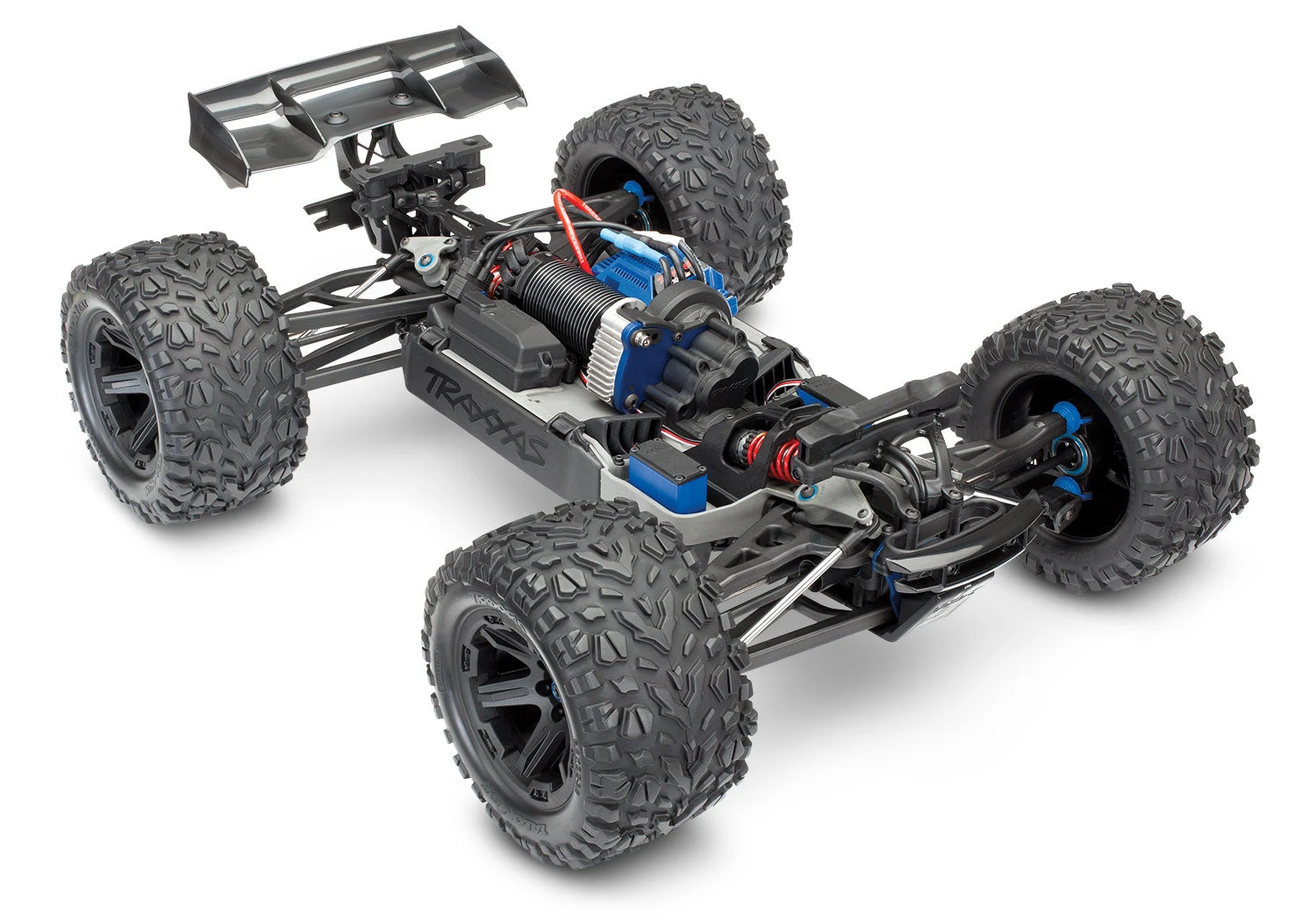

• Chassis
• Reinforced composite tub for greater durability
• Vented internal battery compartments with quick-release doors
• Low-CG design for improved handling
• Tough skid plates for driveline protection
• ProGraphix® Body
• Clipless body mounting system
• Tough internal frame
• Adjustable rear wing
• External reinforcement for rollover protection
• Wheels and Tires
• Aggressive Talon™ EXT all-terrain tires
• New tire construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm blue aluminum axle hubs
• Steering
• High-throw bellcrank steering design
• Dual waterproof 2075 servos for 250 oz.-in. of torque
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 23.05 inches (585mm)
• Width: 18.32 inches (465mm)
• Ground Clearance: 2.9 inches (73mm)
• Weight: 11.2lb (5.08kg)
• Height: 8.7 inches (221mm)
• Wheelbase: 14.94 inches (380mm)
• Front Shock Length: 3.42 inches (87mm)
• Rear Shock Length: 3.42 inches (87mm)
• Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
• Wheels: 3.8 inches (97mm)
• Speed Control: Velineon® VXL-6s
• Motor (electric): 2200kV
• Transmission: Single speed
• Gear Pitch: 1.0 Metric pitch (Mod-1)
• Final Drive Ratio: 20.49:1
• Differential Type: Sealed, 4-gear
• Center Differential Type: Sealed, 4-gear (20M weight oil)
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank
• Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
• Servo: Dual 2075
• Top Speed (optional gearing): 70+ mph
• Skill Level: 3
• Battery Compartment: 156mm x 50mm x 29mm
