Traxxas 82034-4 TRX-4 Sport 4WD 4×4 Crawler Truck with Traxx Orange

Hit the trail fully outfitted for fun and adventure with the TRX-4® equipped with Traxx™. Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model. Plus it’s factory-equipped with powerful lighting and a full array of performance parts and scale detail accessories. The fully-painted body with clear windows further enhances the realism.

MAXIMUM TRACTION

Outfitted with Traxx, the TRX-4 transforms into an all-terrain monster. The enormous contact patch and grippy treads shrug off the deepest mud and float across sand. Traxx’ increases ground clearance and approach angles to let you straddle even larger obstacles and climb steeper grades without breaking a sweat.

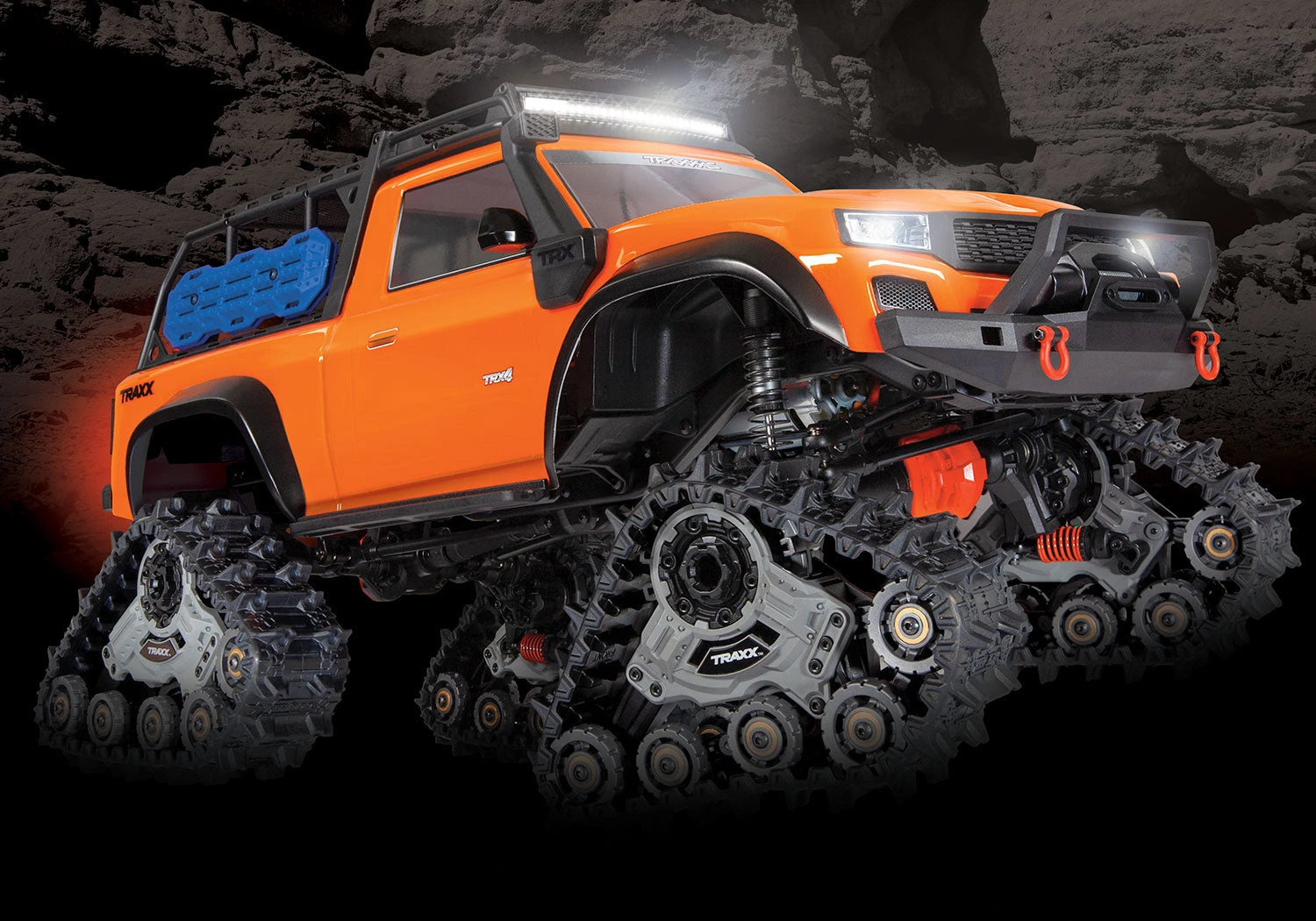

LED LIGHT KIT

The pre-installed LED light kit features headlights, taillights, and a wide 28-LED rack-mounted light bar. Fully waterproof for all-weather adventure, the LED light kit keeps the fun going long after the sun sets. The injection molded grill and tailgate feature integrated lenses for additional scale detail and rugged functionality.

SCALE ACCESSORIES

The TRX-4 Traxx Edition includes an entire complement of scale accessories. The tough and functional Expedition Rack comes outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and canisters for extreme scale detail. Inner fenders and clear windows give the TRX-4 a realistic appearance for maximum impact.

FEATURES:

• Tough, Lightweight Pickup Truck Body
• Low profile bumpers for increased clearance
• Red differential covers and D-rings
• Clear windows
• Scale Accessories
• Rugged Expedition Rack with detailed accessories
• Tough inner fenders
• Injection-molded snorkel, side mirrors, and grilles
• All-Terrain Traxx
• Virtually unstoppable traction on practically any terrain
• Oil-filled coilover dampers to control rotational movement
• Suspended road wheels allow treads to conform to irregular surfaces
• Specially designed one-piece rubber treads resist de-tracking
• Longer rear Traxx drive units for steep climbing stability
• Designed for all-weather fun
• Sealed bearings on drive wheels
• Low-maintenance self-lubricating bushings on guide wheels
• LED Light Kit
• Sealed waterproof design
• Color-coded power distribution block for easy and secure connections
• Traxxas LED lighting module
• Regulated to provide consistent and reliable power output
• Eliminates overheating, glitching, and other electronics issues
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
• Two stage low voltage protection (LVD)
• Motor
• Powerful Titan™ 21T reverse rotation motor with internal cooling fan
• Precise preset gear mesh adjustments
• Motor retention separate from gear mesh

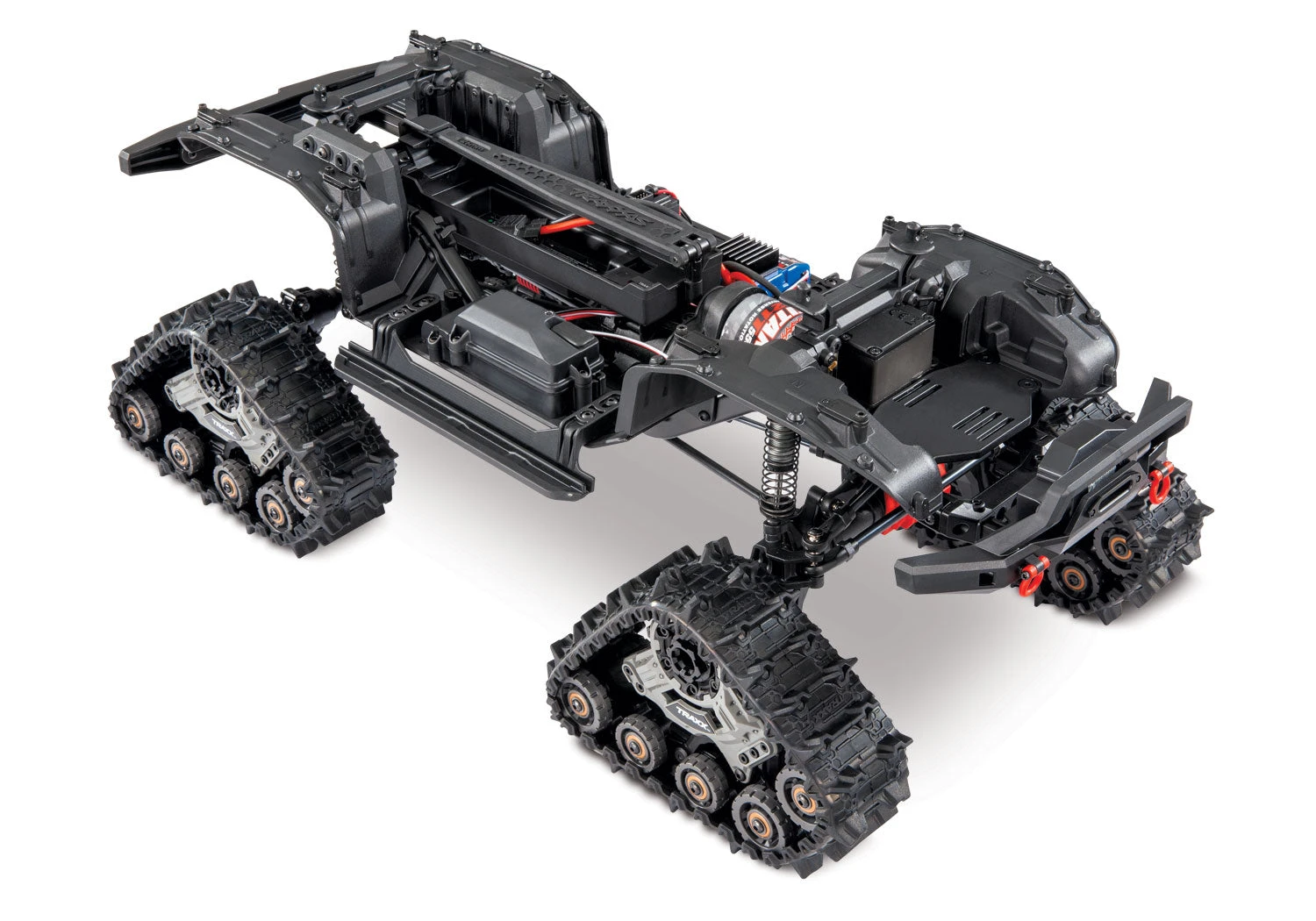

• Rigid Steel Frame
• 1.5mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Drivetrain
• Full-time shaft driven 4-wheel drive
• Tough 6mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Spool-locked front and rear differentials
• Steel gear transfer case
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
• Single-speed with steel gears
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• TQ™ 2.4GHz 2-channel transmitter
• Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 21.93 inches (557mm)
• Front Track: 10.48 inches (266 mm)
• Rear Track: 10.48 inches (266 mm)
• Ground Clearance: 3.54 inches (90 mm)
• Weight: 8.71lbs (3.95 kg)
• Height: 10.29 inches (261 mm)
• Wheelbase: 12.28 inches (312mm)
• Approach Angle: 76°
• Departure Angle: 76°
• Breakover Angle: 81°
• Front Shock Length: 3.54 inches (90mm)
• Rear Shock Length: 3.54 inches (90mm)
• Battery Tray: 158.75 L x 47 W x 23/26mm H
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse Rotation
• Transmission: Single Speed
• Gear Pitch: 32P
• Differential Type: Spool (no differential)
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft Driven 4WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
• Receiver: 6519
• Skill Level: 1
• Motor:
• Type: High-torque brushed motor
• Size: 550
• Weight: 390g (13.76oz)
• Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
• Turns: 21T reverse rotation
• Voltage: 16.8V
• ESC:
• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Case Size: 1.23” W x 2.18” D x 1.04” H
• Weight: 2.6oz (74g)
• Motor Limit: 21-turns (550 size)
• On Resistance Forward: 0.004 Ohms
• On Resistance Reverse: 0.004 Ohms
• Peak Current – Forward: 100A
• Peak Current – Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5”
• Input Harness Wire: 26 Gauge / 14.5”
• Transistor Type: MOSFET
• PWM Frequency: 1700Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
• Single-button setup: Yes, Traxxas EZ-Set®
  * Patented

INCLUDES:

• TRX-4, Ready-To-Drive® model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQ™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
