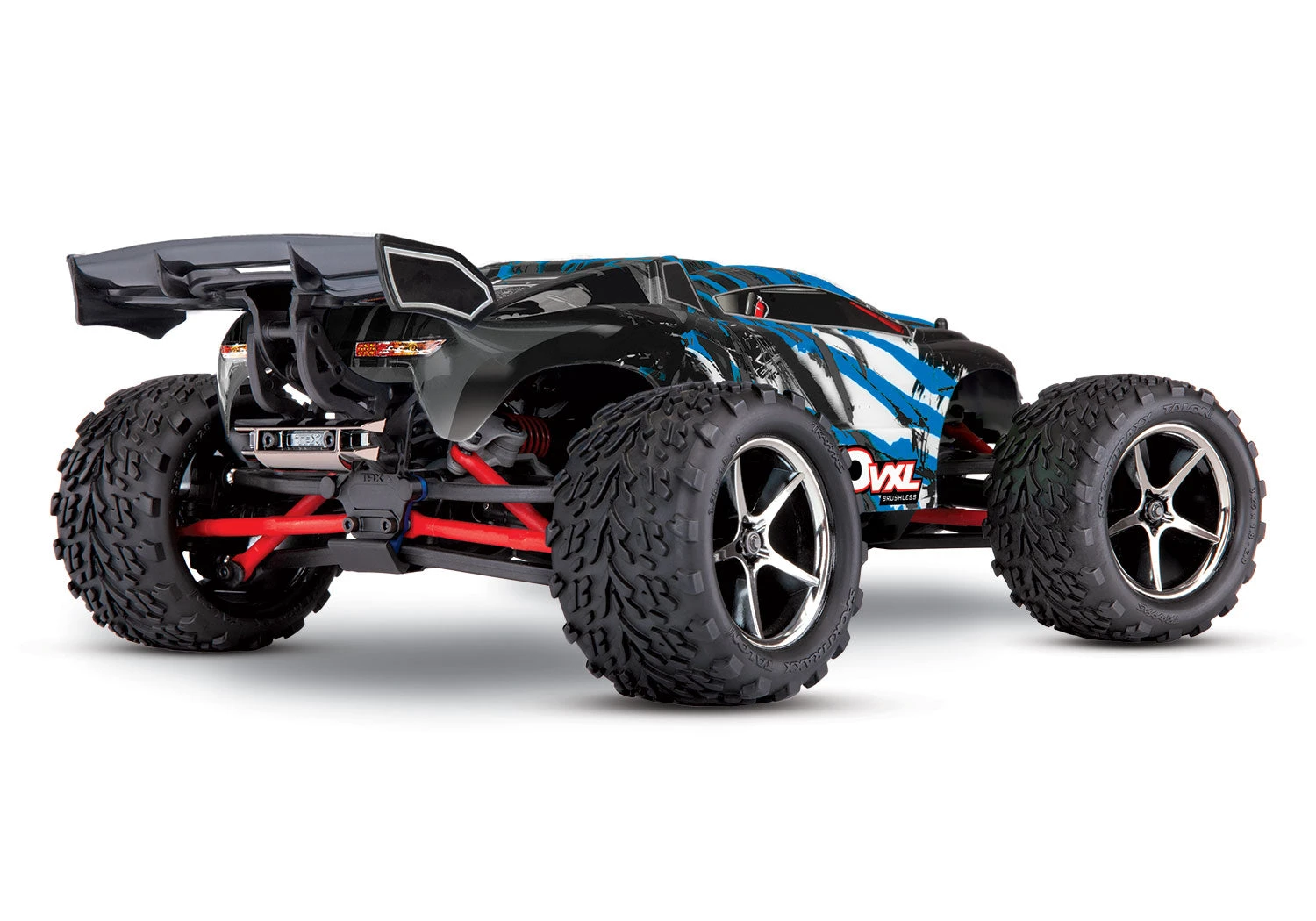

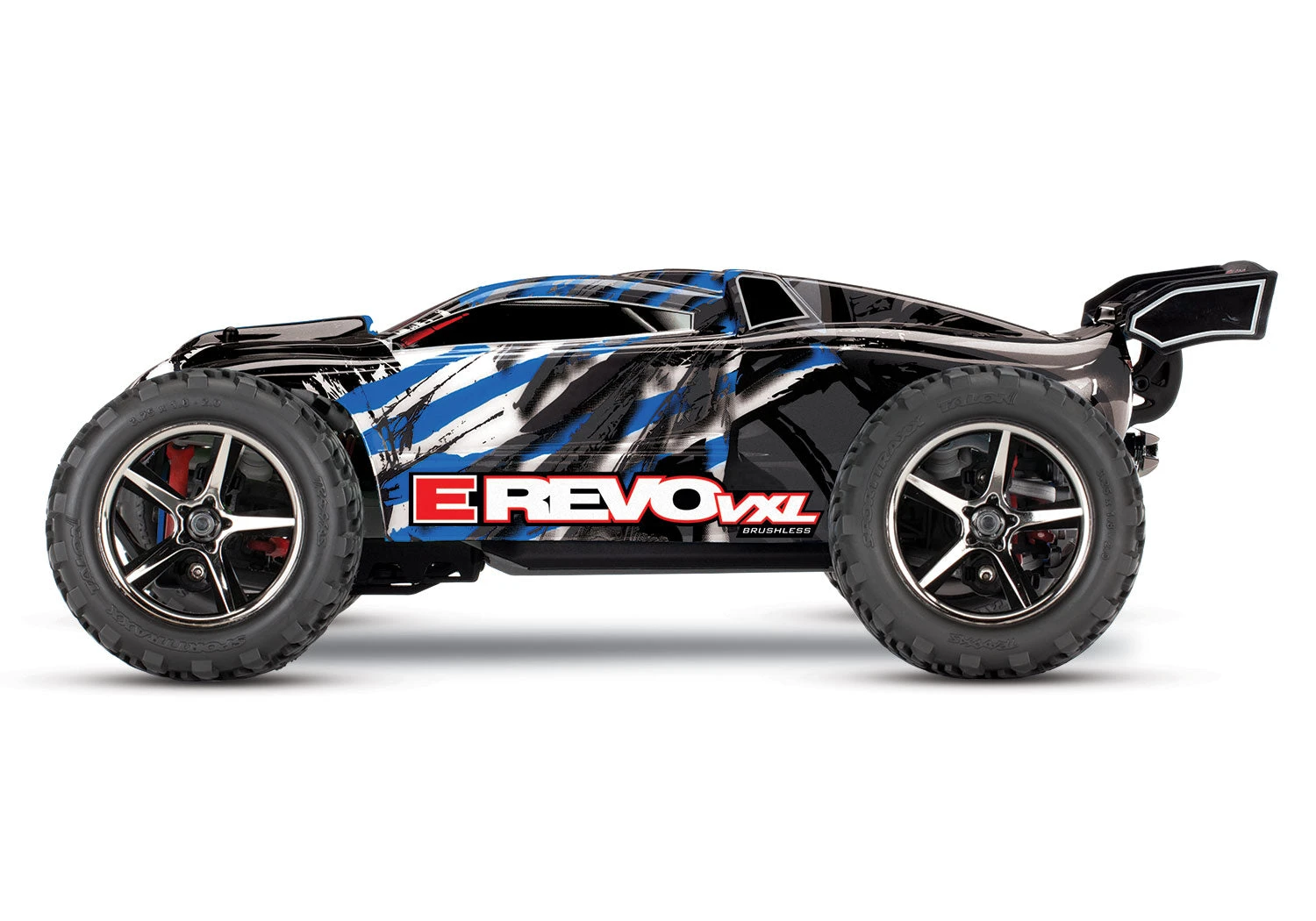

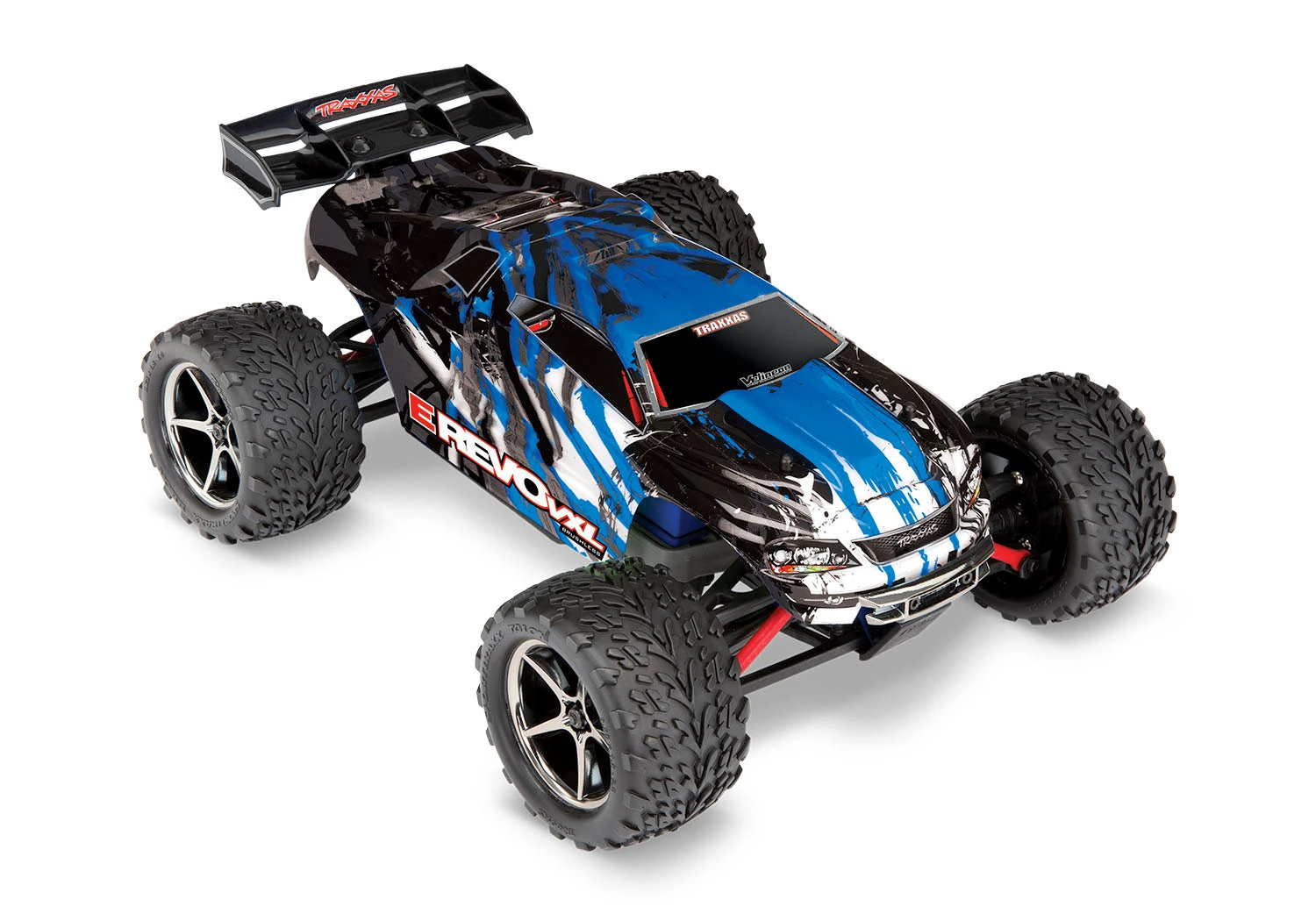

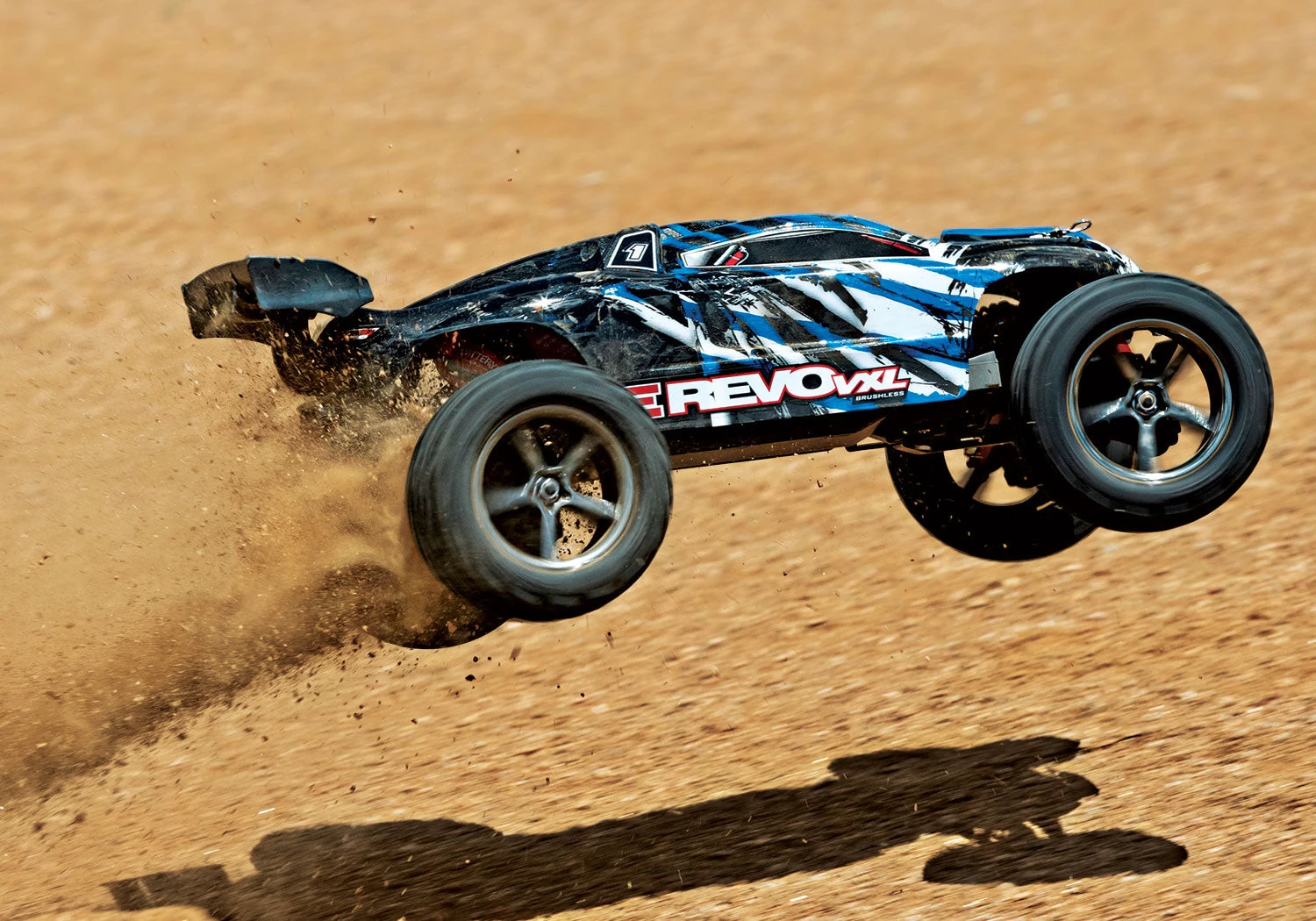

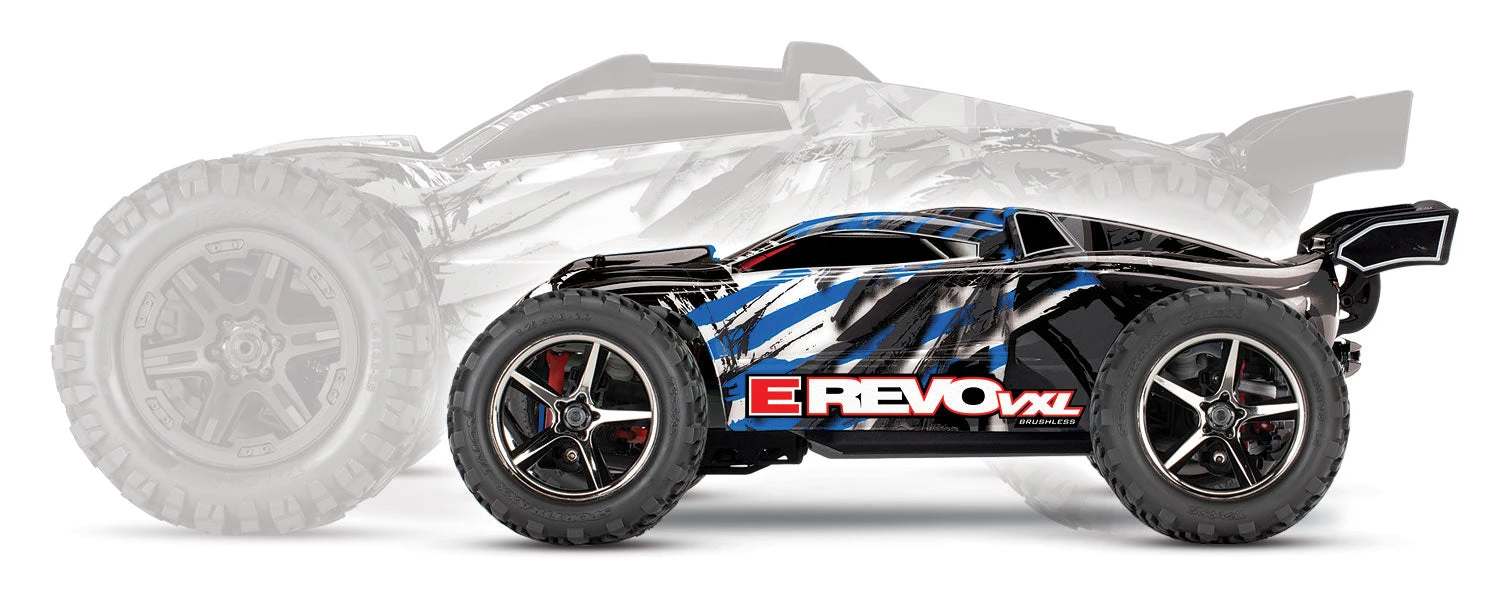

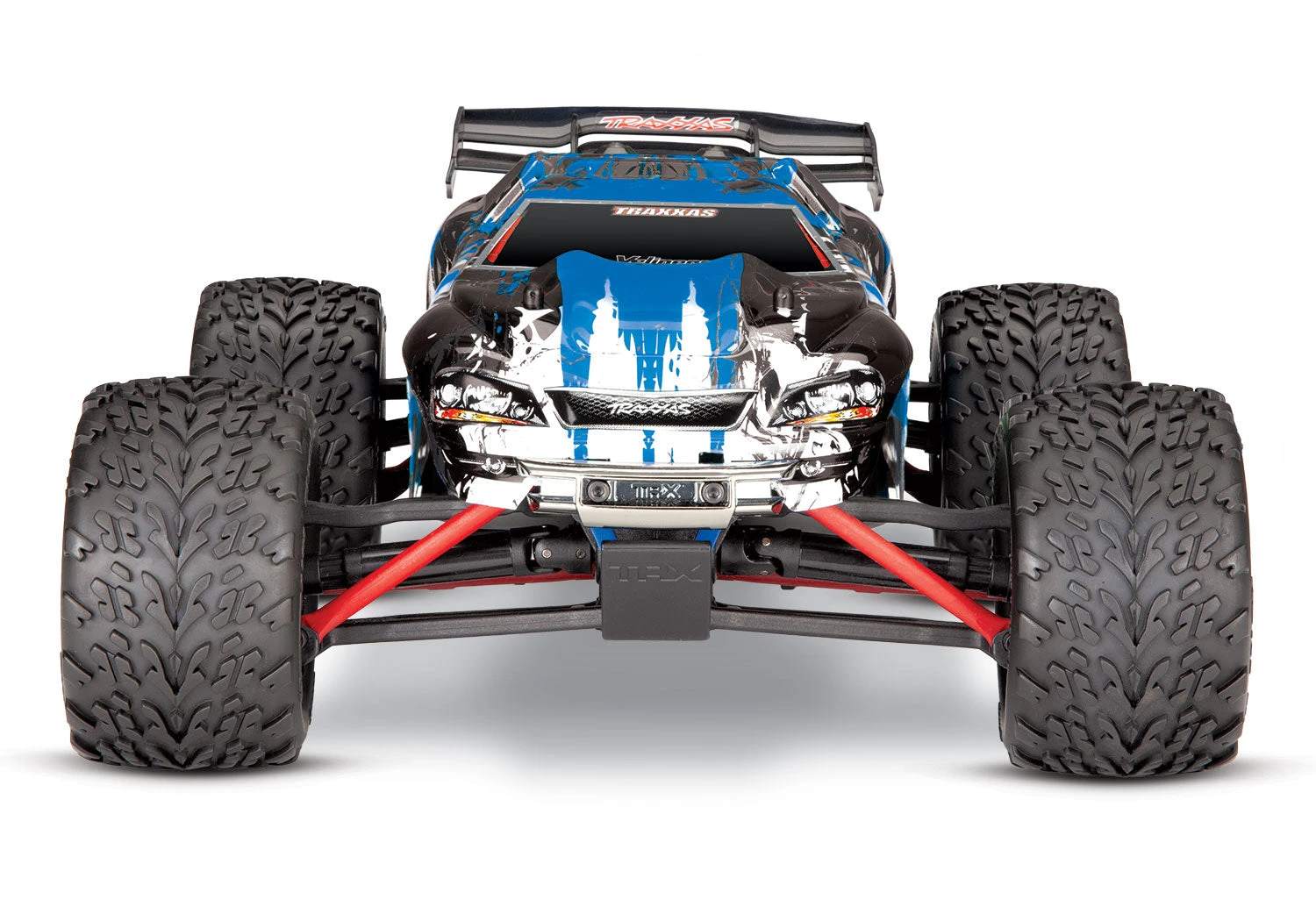

Traxxas 71076-3 1/16 Scale RTR E-Revo 4WD Racing Monster Truck Blue

The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The Revo’s rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. Intricately molded as a single piece, the monocoque chassis balances strength and weight to far surpass the standards of the “mini” category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.

FEATURES:

• Traxxas Stability Management®
• 2-amp DC Peak Detecting Fast Charger
• 7.2 volt NiMH battery pack with iD®
• TQi 2.4GHz radio system
• Race-inspired suspension technology and integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon® Brushless Power System
• Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control
• LiPo and NiMH compatible with two-stage low-voltage detection
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Patented Training Mode™ – 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor
• High-performance sensorless design
• High-strength Neodymium magnets
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Gold-plated 3.5 mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control™ slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued Talon™ tires with high-performance foam inserts
• Black-chrome Gemini™ 5-spoke wheels
• High-downforce rear wing
• Full line of genuine Traxxas accessories available
• E-Revo VXL is backed by unparalleled Traxxas support and parts availability

Class-Leading Speed

Some mini-models are “fast for a mini.” That’s not good enough for Traxxas. The 1/16 E-Revo VXL is just plain fast. At 30+mph with the included 6-cell NiMH battery, E-Revo VXL is nearly twice as fast as most mini models, and faster than most electric RTR trucks of any scale. Install a second 6-cell battery to unleash the Velineon Brushless Power System’s full fury, and E-Revo VXL jumps to over 50mph. No other RTR truck, regardless of scale, makes it so easy and affordable to experience this level of high speed and wheelie-popping power.

Velineon Brushless Power

VXL-3m Brushless Electronic Speed Control (ESC) (#3375), WaterproofBuilt specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon® 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives E-Revo VXL precise throttle control and blistering top speed. The Velineon 380 is built to the same no-compromise specs as the Velineon 3500 found in Traxxas’ 70+mph 1/10 scale VXL models. High-speed ball bearings. Sintered rotor. Neodymium magnets. Gold plated 3.5 mm connectors. It all adds up to 50,000 rpm of pure power and speed!

100% Ready-To-Race®

The 1/16 E-Revo VXL is fully assembled with TQi radio system, Velineon brushless power system, painted and decaled body, pre-glued tires, and quick start guide. A Traxxas Power Cell NiMH battery and charger are also included, making the E-Revo VXL truly Ready-To-Race. Traxxas backs the E-Revo VXL and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the E-Revo to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).

SPECIFICATIONS:

• Length: 12.9 inches (328 mm)
• Front Track: 9.4 inches (239 mm)
• Rear Track: 9.4 inches (239 mm)
• Weight: 38 ounces (1.09 kg)
• Height (overall): 4.6 inches (117 mm)
• Wheelbase: 7.9 inches (202 mm)
• Front Shock Length: 48 mm
• Rear Shock Length: 48 mm
• Front Tires (pre-glued): Talon™ 2.0″
• Rear Tires (pre-glued): Talon™ 2.0″
• Front Wheels: 2.0″ Gemini™ (black-chrome)
• Rear Wheels: 2.0″ Gemini™ (black-chrome)
• Electronic Speed Control: Waterproof Velineon® VXL-3m ESC
• Motor (electric): Velineon® 380 Brushless
• Transmission: Heavy-Duty Single Speed
• Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
• Overall Drive Ratio: 9.00 (stock, out-of-box)
• Differential Type: Hardened Steel Bevel, Sealed
• Gear Pitch: 48-Pitch
• Chassis Structure/Material: Molded Composite Nylon Monocoque
• Brake Type: Electronic
• Drive System: Shaft-Driven 4WD
• Steering: Bellcrank
• Radio System: TQi 2.4GHz w/Traxxas Stability Management®
• Top Speed: 30+mph (50+mph with dual batteries)*
• Skill Level: 2
• Included Batteries: 6-cell NiMH with iD®
• Included Charger: 2-amp DC peak detecting fast charger
• Required Batteries: 4 “AA” (transmitter)
