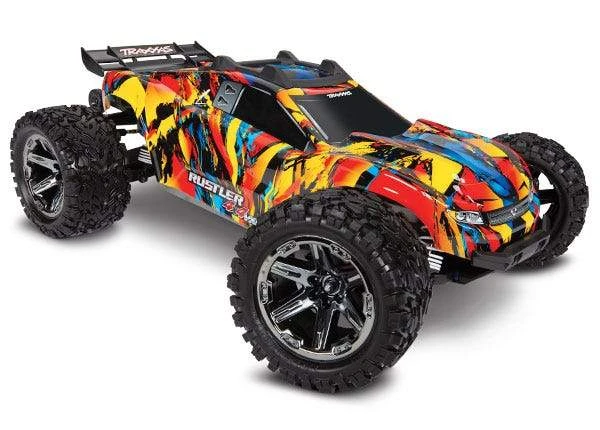

Traxxas 67076-4 Solar Flare Rustler 4X4 VXL 1/10 Scale Stadium Truck

The all-new Rustler® 4X4 VXL is a hard-charging wheelie machine that captures the speed and classic style of the number-one-selling Rustler and injects it with brutal 4-wheel drive performance, increased durability, and even more fun! Bury the throttle and the Rustler 4X4 VXL launches its front wheels skyward as it shreds the ground underneath. Beneath the sleek clipless body, the heavy-duty driveline delivers extreme Velineon® brushless horsepower. The larger Talon™ EXT wheels and tires provide versatility and grip for any terrain, from backyard trails to concrete skate parks. Rustler 4X4 VXL destroys convention to become the new performance and fun standard for 4X4 stadium trucks!

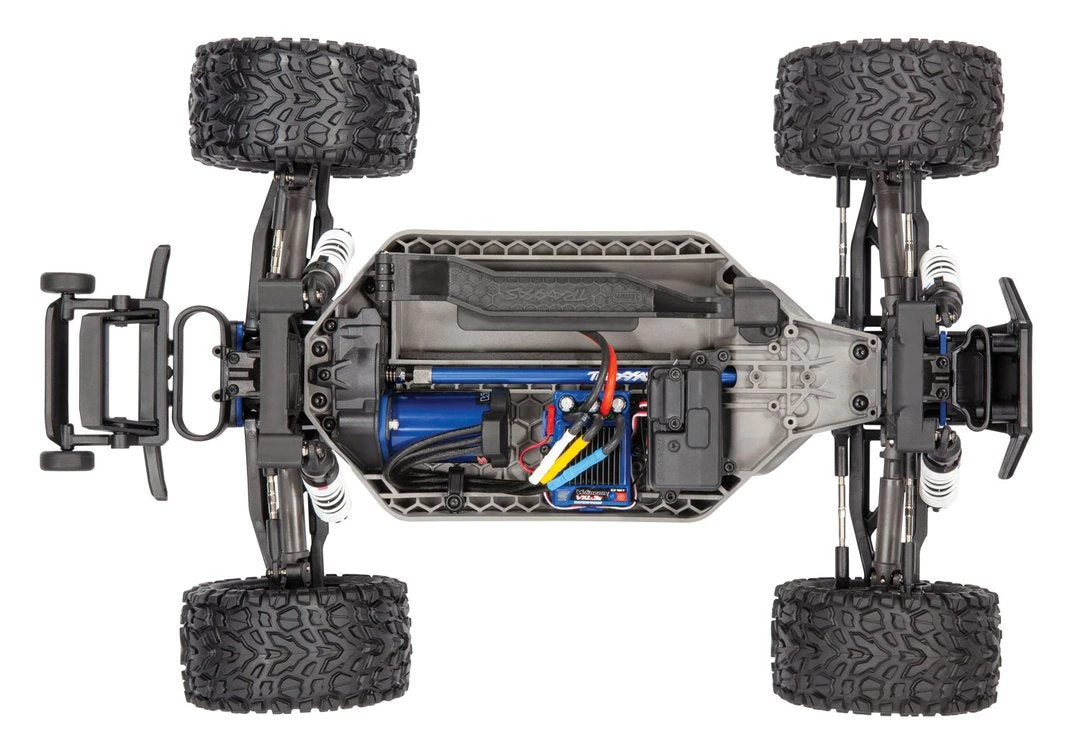

ALL-NEW CHASSIS
The all-new low-CG chassis positions the weight low for aggressive handling. The wheelbase has been lengthened 20mm for the perfect balance of stability and quick response. Brushless Velineon power flows through a larger Revo®-Spec slipper clutch and new extreme heavy-duty driveshafts to ensure performance and strength.

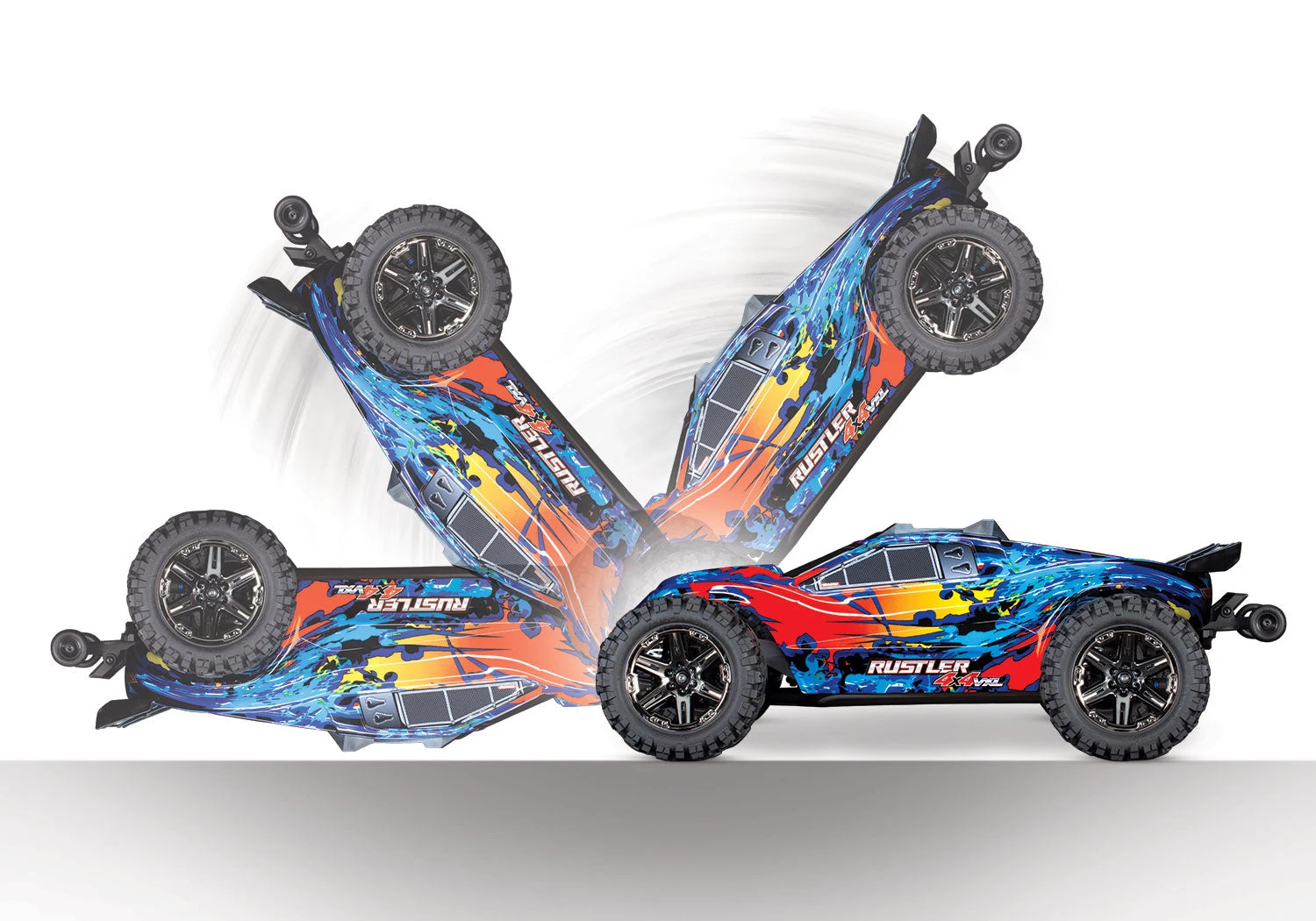

SELF-RIGHTING
The Rustler 4X4 VXL uses Traxxas’ patented Self-Righting feature to keep the fun going, even when you get carried away with the wheelies or land that big trick upside down. Simply press a button on the TQi transmitter and, in most circumstances*, the Rustler 4X4 VXL will be back on its wheels in just seconds and ready for more action!
*3s power recommended for optimal performance

CLIPLESS BODY MOUNTING
Similar to the flagship E-Revo, the Rustler 4X4 VXL uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-Tough™ durability.

FEATURES:

• VXL-3s™ Waterproof Electronic Speed Control
• Three Programmable Drive Profiles:
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Large heat sink
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® 3500kV Brushless Motor
• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• 3500kV
• Brilliant blue-anodized finish
• Up to 65+ mph with 3S LiPo battery
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Clipless ProGraphix® Body
• Easy one-handed removal
• Reinforced inner cage
• Strong oversized latch
• Rugged roof rollover protector
• Molded composite plastic wing
• Chassis
• Low-CG design for responsive handling
• Modular composite tub design
• Latching battery hold-down
• Reinforced integrated wheelie bar
• High-approach front bumper to climb curbs
• Suspension
• Adjustable toe and camber links
• New impact-resistant suspension arm composite
• Oil-filled Ultra Shocks
• Rugged front and rear shock towers
• White powder-coated progressive springs
• Steering
• Chassis-mounted #2075 servo
• Dual bellcrank design with integrated servo saver
• Drivetrain
• New extreme heavy-duty driveshafts
• Oil-filled steel gear front and rear differentials
• Large 32-pitch gearing
• Torque Control™ heavy-duty slipper clutch with aluminum pads
• Anodized-aluminum center driveshaft
• Wheels and Tires
• Large 2.8” black chrome wheels
• 2.8” Talon™ EXT tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 18.78 inches (477mm)
• Width: 12.94 inches (329mm)
• Ground Clearance: 1.1 inches (27mm)
• Weight: 5.12lbs (2.32 kg)
• Height: 6.35 inches (161mm)
• Wheelbase: 11.62 inches (295mm)
• Front Shock Length: Long
• Rear Shock Length: XX-Long
• Tires (pre-glued): 4.5” x 2.3” (114mm x 58mm) Talon™ EXT
• Wheels: 2.8 inches (71mm) Black Chrome
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 3500 Brushless
• Transmission: Single speed
• Overall Drive Ratio: 13.97:1
• Differentials: Sealed, 2-gear
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank with integrated servo saver
• Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
• Servo: Waterproof #2075
• Top Speed (optional gearing): 65+ mph with 3-cell LiPo and 20/54 gearing
• Skill Level: 1
• Battery Compartment: 162mm x 50mm x 25mm
• Motor
• Type: Velineon 3500kV sensorless brushless
• Weight: 9.24oz (262g)
• Length: 2.20 inches (56mm)
• Diameter: 1.41 inches (36mm)
• Connector Type: 3.5mm bullet
• ESC
• Input Voltage (cells): 4.8 – 11.1V (4–9 cells NiMH), 2S–3S LiPo
• Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.3” (33mm)
• Weight: 3.84oz (109g)
• BEC Voltage: 6.0 V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

INCLUDES:

• Rustler 4X4 VXL with Velineon® VXL-3s and 3500kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: Rustler 4X4 VXL requires a single NiMH or LiPo battery.
• Charger: Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

*42mm with optional battery strap (sold separately)
