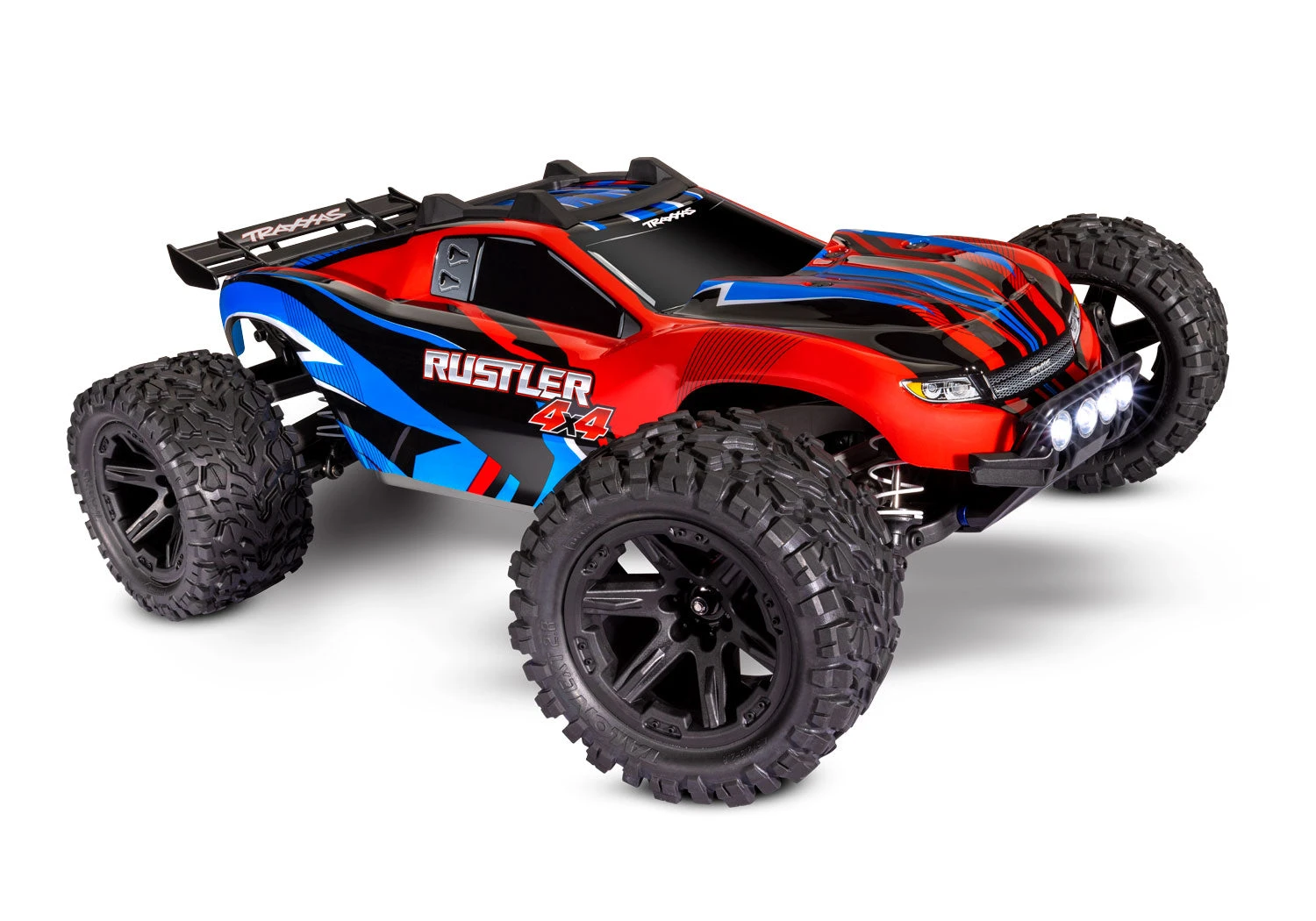

Traxxas 67064-61 Red Rustler 4×4 XL-5 Brushed 1/10 Stadium Truck with LED Lights

Rustler 4X4 infuses the speed and agility of the number-one-selling Rustler with 4-wheel drive performance, increased durability, and even more fun! Beneath the reinforced clipless body, the modular chassis sits low and wide for increased stability. The XL-5 electronic speed control and Titan® motor deliver high-octane horsepower and wheel-standing torque. Waterproof electronics keep the fun going through wet weather conditions and LED lighting extends your driving fun after dark. Rustler 4X4 destroys convention to become the new standard for 4X4 stadium trucks!

The Titan® 12T 550 motor pumps out incredible power with an integrated cooling fan to keep temperatures down. The XL-5 Electronic Speed Control provides smooth, reliable power delivery with EZ-Set® one-button setup and three different drive profiles.

The waterproof XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

The Rustler 4X4 never shies away from an adventure and, thanks to its fully waterproof electronics, neither will you. Experience 4X4 fun year-round no matter what the weather conditions. Water, mud, and snow don’t slow down the Rustler; its electronic speed control, receiver box, and high-torque digital steering servo are all waterproof for no-worry fun. Drive the Rustler where you want, when you want—the only limit is your imagination.

Rustler 4X4 uses a convenient clipless body for secure mounting and fast, one-handed removal. A heavy-duty latch locks the body in place with a rugged internal frame for maximum strength and durability. Tough roof skids provide rollover protection for long life and Traxxas-Tough™ durability.

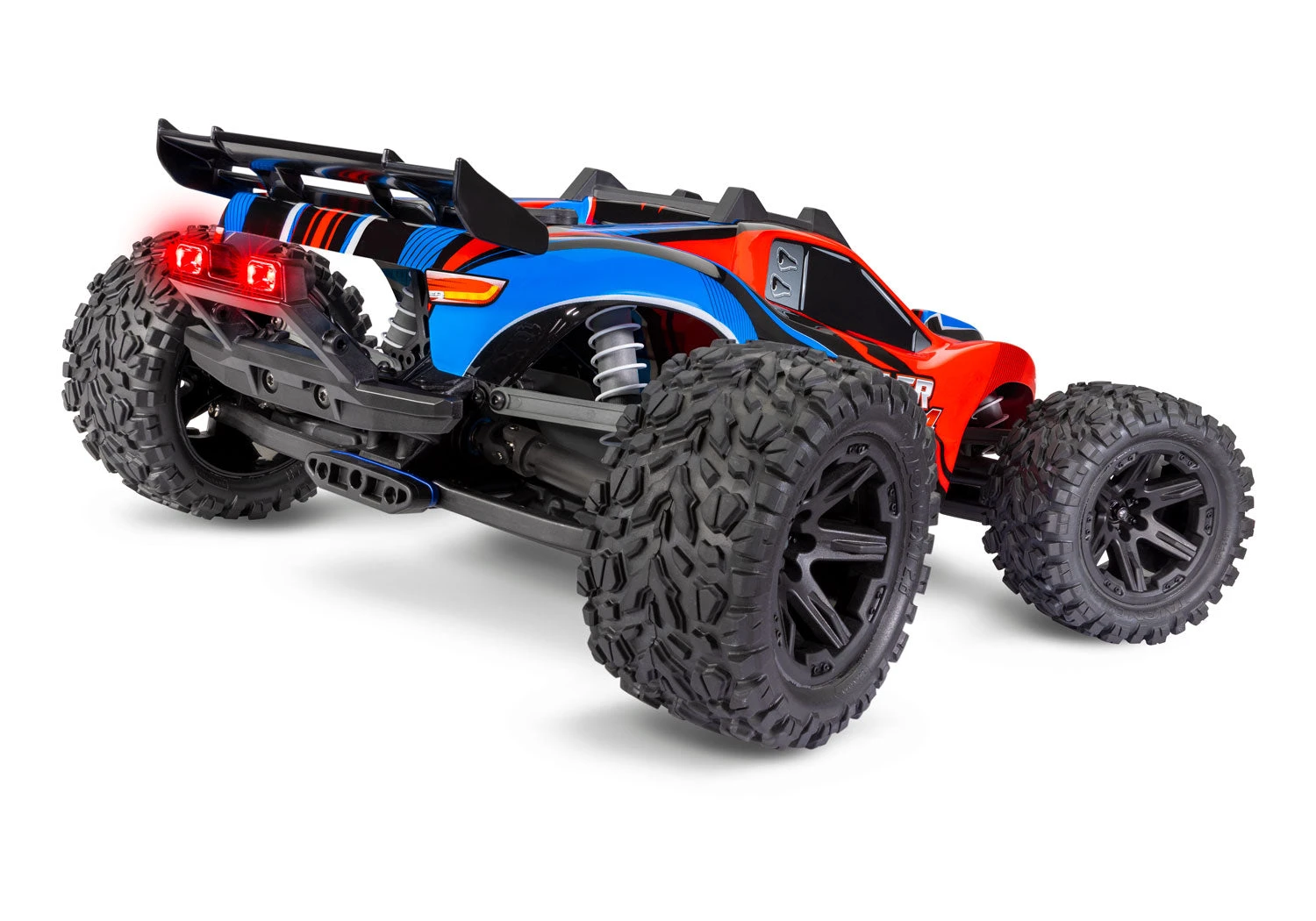

The Rustler 4X4 now includes LED lighting as standard equipment for more fun after dark. Thick impact-resistant bumpers protect the lights against crash damage with fully-waterproof construction for all-weather fun.

FEATURES:

• 4-amp DC Peak Detecting Fast Charger
• Traxxas 3000mAh, 8.4V, 7-cell NiMH battery with iD®
• Fully assembled and Ready-To-Drive®
• Front and rear LED lighting
• Full-time 4WD
• TQ™ 2.4GHz 2-channel radio system
• Sealed, silicone-filled differentials with steel gears
• Tough Torque-Control™ slipper clutch with large 32p gears
• Waterproof electronics for all-weather driving excitement
• Powerful Titan® 12T 550 motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Speed control and receiver are securely screwed to the chassis
• Equipped with patented Traxxas High-Current Connectors
• Easy motor access with single-screw motor plate attachment
• High-torque Waterproof Traxxas steering servo (#2056)
• Efficient telescoping heavy-duty U-joint driveshafts
• Bellcrank steering system with integrated servo saver
• Modular simplicity, fiber-composite monocoque chassis
• Easy access battery compartment
• 2.8″ wheels with aggressive Talon™ EXT tires
• Fully adjustable Ultra Shocks™ with X-ring technology
• Precision high-quality hex hardware throughout
• Efficient rubber-sealed ball bearings
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Clipless pre-painted ProGraphix® body

SPECIFICATIONS:

• Length: 18 inches (457 mm)
• Front Track: 12.94 inches (329 mm)
• Rear Track: 12.94 inches (329 mm)
• Center Ground Clearance: 1.1 inches (27 mm)
• Weight: 75.7 ounces (2.15 kg)
• Height (overall): 6.35 inches (161 mm)
• Wheelbase: 11.6 inches (295 mm)
• Shock Length: Long (front), XX-Long (rear)
• Tires: Talon™ EXT with Foam Inserts
• Tire Diameter: 4.5 inches (114 mm) (front and rear)
• Wheels (front/rear): 2.8″ Black Multi-Spoke
• Wheel Diameter: 2.8 inches (71 mm)
• Speed Control Type: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-turn)
• Overall Drive Ratio: 19.23:1 (stock, out-of-box)
• Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
• Gear Pitch: 32
• Chassis Structure/Material: Molded Tub / Nylon Composite
• Drive System: Shaft-Driven, Direct Drive 4WD
• Steering: Dual-Bellcrank with Integrated Servo Saver
• Radio System: TQ™ 2.4GHz (2-channel)
• Body: Clipless ProGraphix®
• Skill Level: 1
• Battery Tray Dimensions: 162 mm x 50 mm x 25 mm*
• Required Items: 4 “AA” Batteries (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 mm x 55 mm x 15.5 mm
• Weight: 2.44 Ounce
• Motor Limit: 15-turns** (540 Size), 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5″
• Input Harness Wire: 26 Gauge / 9″
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode:
• 100% FWD, 100% brakes, 100% REV
• Race Mode:
• 100% FWD, 100% brakes, no REV
• Training Mode (patented):
• 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®

*6726X battery expansion kit available (sold separately).
**Properly Geared
