Traxxas 58034-61 1/10 XL-5 Brushed  2WD Slash Short Course Truck with LED Lights – Green

The award-winning Traxxas Slash short-course race truck puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Full-scale short-course race trucks embody the spirit of Traxxas RC with their extreme 900+ horsepower racing engines full-throttle, dirt-roosting power slides, giant suspension travel, and big-air jumps. The Traxxas Slash brings all the action home so you can experience the high-speed head-to-head competition at the track or in your own backyard. The rear-wheel drive Slash is purpose built to fly over jumps and rip full-throttle through the turns. Slash hangs it out for an all new way to challenge your driving skills. The 4-wheel independent suspension has been carefully tuned to replicate the real world driving and handling experience as closely as possible. The scale appearing tires provide just the right amount of bite and thick, blinding clouds of dirt roost.

Switch on the power and drive! That’s all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. The TQ’s ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Slash’s powerful Titan 12T 550 motor is made for rock-crushing torque, lightning-quick acceleration, hardcore wheelies, explosive jumping, and just about any other 4-wheel fun that demands real horsepower. The Titan’s oversize armature features 12 turns of pure copper wire for big torque and increased power-handling. The integrated cooling fan pulls cool air through the motor to keep temperatures down for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run.

The waterproof XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

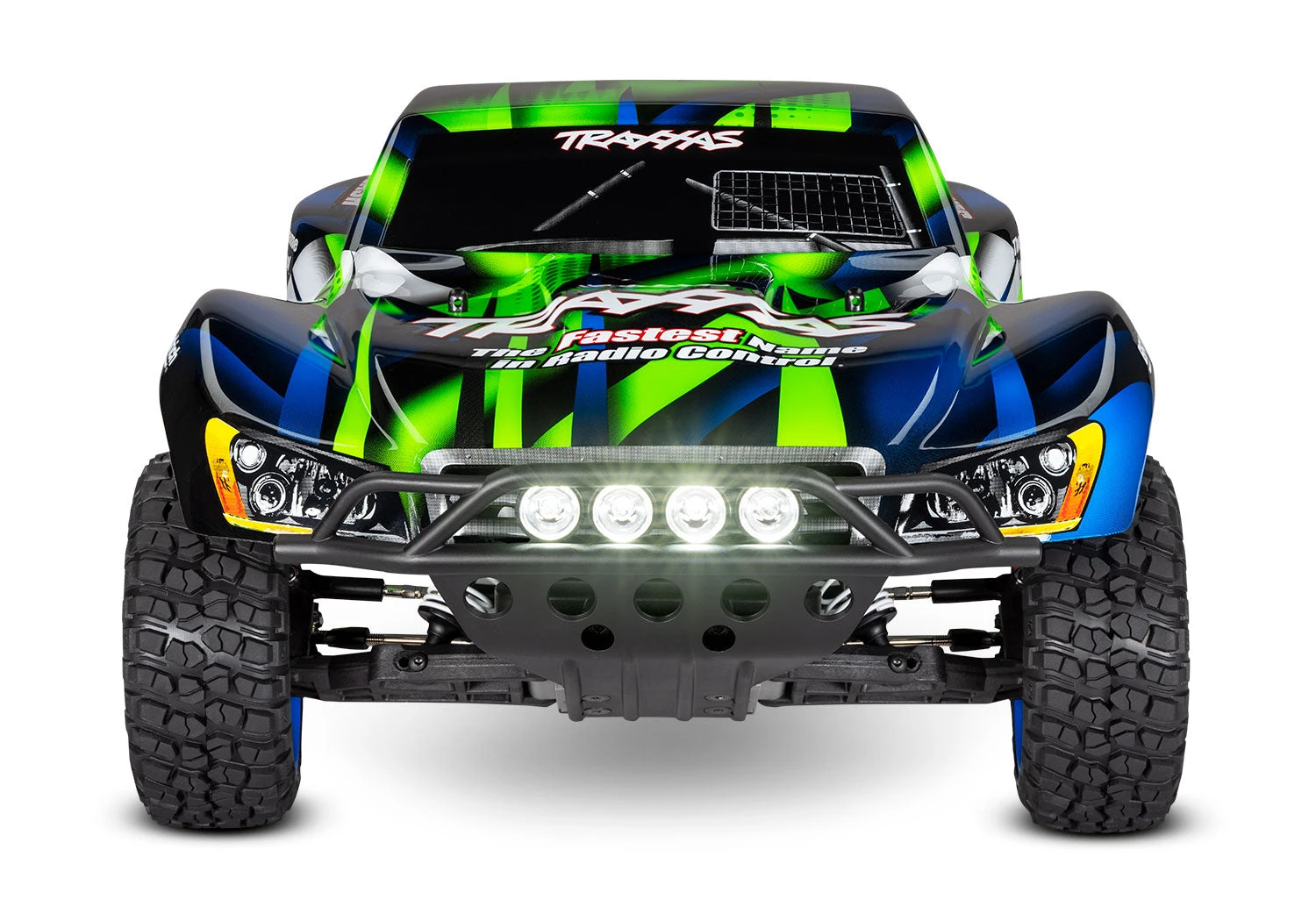

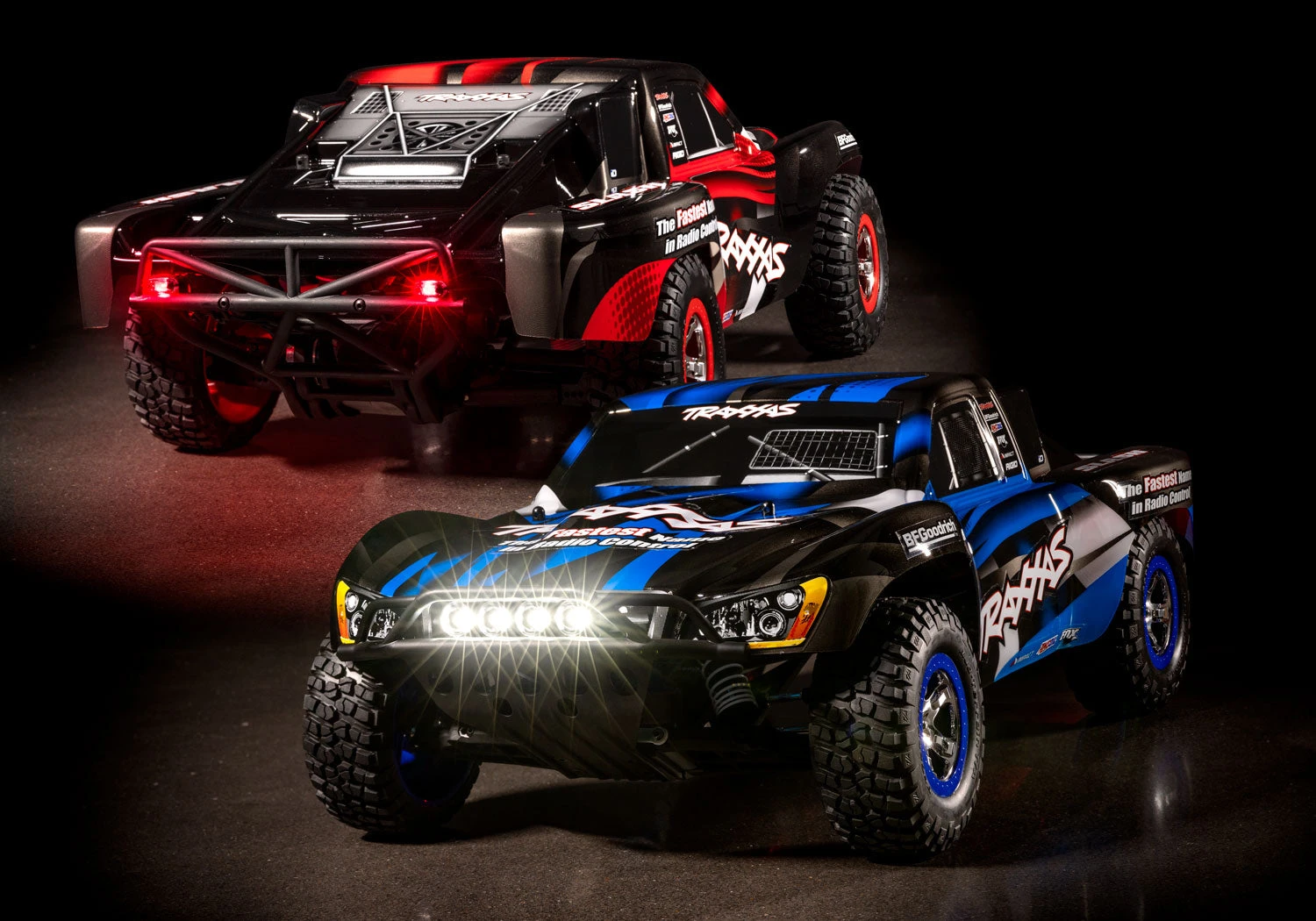

Slash’s LED lighting extends your fun long after dark. Four brilliant white lights illuminate the path ahead while dual red LEDs let you track Slash’s progress from behind. The lights are protected behind rugged bumpers and the entire system is waterproof for worry-free performance.

FEATURES:

• 4-amp DC Peak Detecting Fast Charger
• Traxxas 7-cell NiMH battery with iD®
• Front and rear LED lighting
• Slash reaches speeds in excess of 30 mph using the included optional 23-tooth pinion gear*
• Powerful Titan® 12T 550 motor with internal cooling fan
• Waterproof electronics permit driving in water, mud and snow
• TQ 2.4GHz transmitter
• XL-5 Waterproof Electronic Speed Control
• Innovative watersealed design
• High current handling
• Forward/reverse/brake
• Smooth high-frequency control
• EZ-Set® push-button setup
• Thermal shutdown protection
• LiPo and NiMH compatible with two-stage low-voltage detection
• Three easy-to-program drive profiles
• Equipped with Traxxas High-Current Connectors (patented)
• Traxxas High-Current Connector (patented)
• Digital high-torque waterproof steering servo
• 125 oz-in of torque and 0.16-second speed
• O-ring sealed watertight receiver box keeps the micro receiver dry
• Long-wheelbase fiber-composite monocoque chassis
• 13.2 inch wheelbase
• Over 3.5-inches of ground clearance
• Easy access battery compartment
• Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
• Chassis nerf bars absorb impact and support the body
• Scale front and rear tube-style bumpers
• Body mounts incorporate reinforced washers for additional body support
• Efficient Magnum 272™ metal-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Planetary gear differential with steel ring gear
• Heavy-duty telescoping U-joint driveshafts and yokes
• Adjustable steel turnbuckles and captured rod ends
• Precision hex hardware throughout
• Efficient rubber-sealed ball bearings
• Fully adjustable Ultra Shocks™ with X-ring technology
• Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
• ProGraphix® painted race replica body
• Scale dimensions and looks of actual short course off-road race trucks
• Authentic race-replica tires pre-glued on 2.2″ short course wheels

SPECIFICATIONS:

• Length: 22.8 inches (578 mm)
• Front Track: 11.65 inches (296 mm)
• Rear Track: 11.65 inches (296 mm)
• Weight: 76.2 ounces (2.16 kg)
• Height (overall): 8.425 inches (214 mm)
• Wheelbase: 13.2 inches (335 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires: Traxxas SCT 2.2″
• Rear Tires: Traxxas SCT 2.2″
• Front Wheels: 2.2″ Satin-Finish
• Rear Wheels: 2.2″ Satin-Finish
• Speed Control Type: Waterproof XL-5 ESC
• Motor (electric): Titan® 12T 550 (12-turn)
• Gear Ratio (internal): 2.72 (final drive: 12.58)
• Differential Type: Steel Composite Planetary
• Gear Pitch: 48-Pitch
• Transmission: Metal Gear Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Center Ground Clearance: 3.5 inches (89 mm)
• Top Speed: 30+mph*
• Skill Level: 1
• Radio System: TQ™ 2.4GHz (2-channel)
• Included Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas 7-cell NiMH battery with iD®
• Required Batteries: 4 “AA” (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 mm x 55 mm x 15.5 mm
• Weight: 2.44 ounces
• Motor Limit: 15-turns** (540 Size), 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5 inches
• Input Harness Wire: 26 Gauge / 9 inches
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode:
• 100% FWD, 100% brakes, 100% REV
• Race Mode:
• 100% FWD, 100% brakes, no REV
• Training Mode (patented):
• 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®

* With 7-cell battery and included optional 23-tooth pinion gear
**Properly Geared
