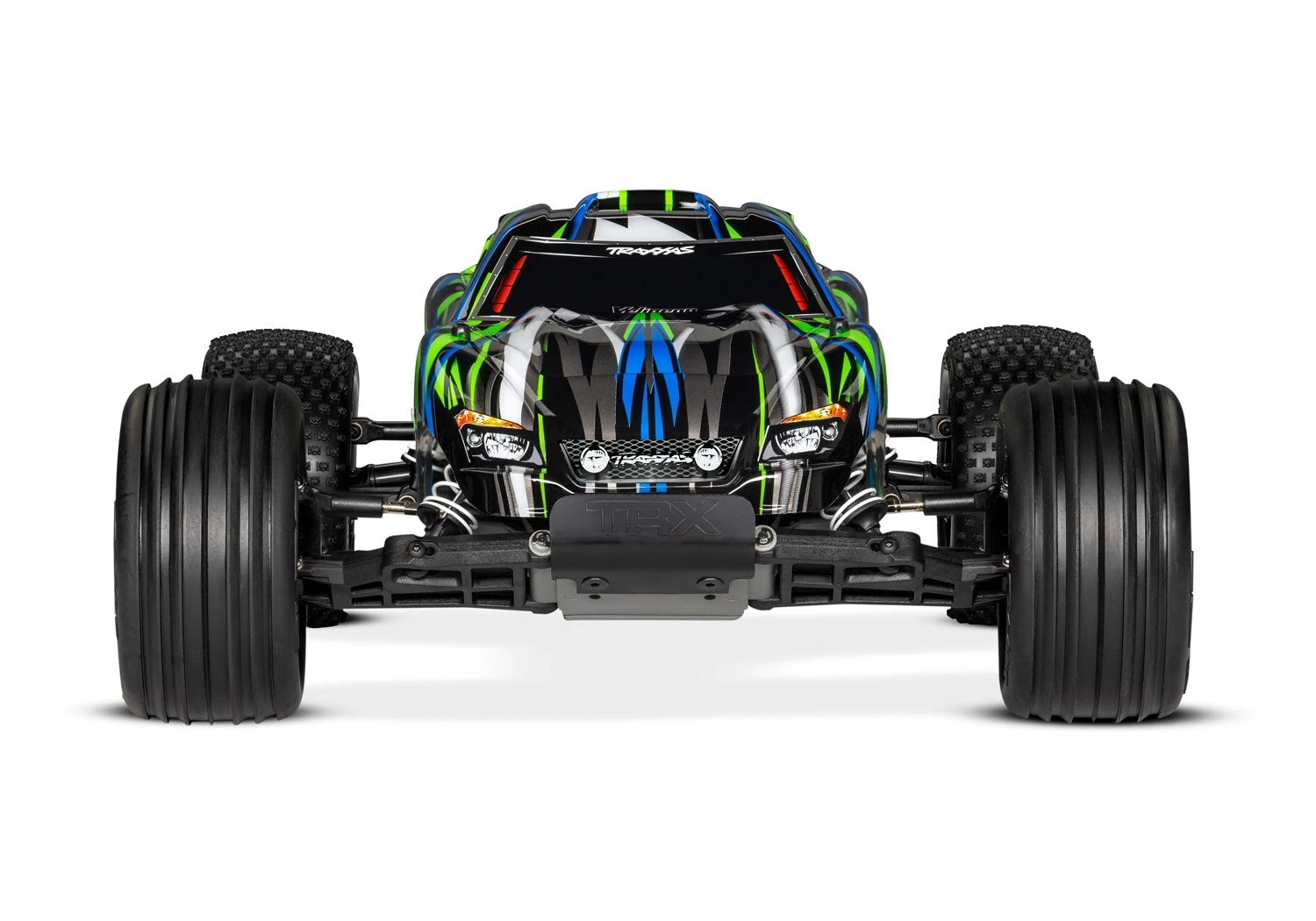

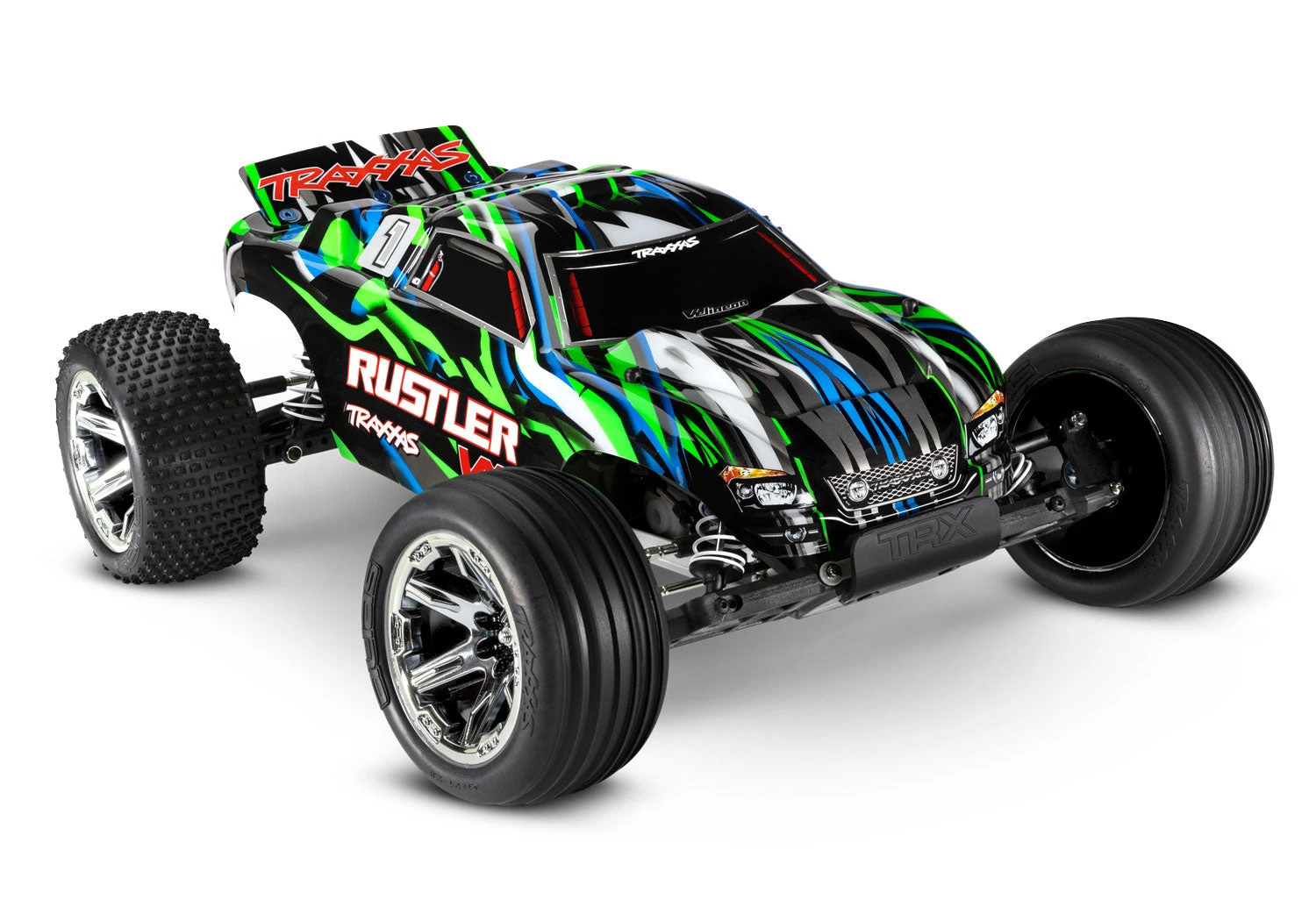

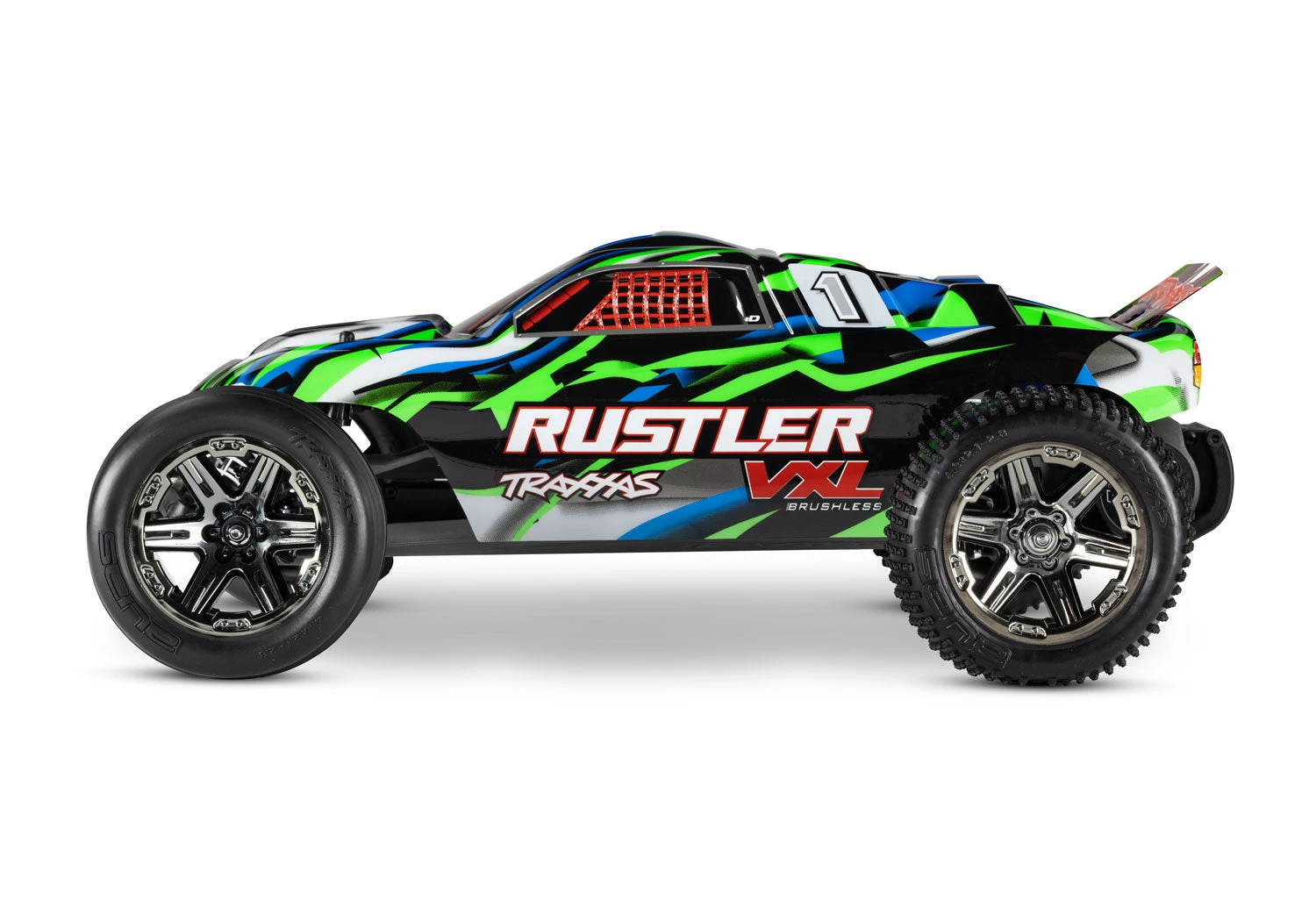

Traxxas 37076-74 2WD Rustler VXL 1/10 RTR Brushless Stadium Truck with 272R Transmission – Green

Rustler® VXL combines outrageous Velineon® horsepower with the proven fun and durability that made Rustler the number-1 selling stadium truck. Rustler’s low, wide stance provides razor-sharp handling and phenomenal grip with Traxxas Stability Management® (TSM) keeping the power under your control. The Velineon Brushless Power System launches Rustler VXL to new heights with speeds of 70 mph and beyond! Go ahead, rip full throttle! Rustler VXL kicks up towering roosts of mud with fully-waterproof electronics to ensure that no adventure is out of reach, no matter how extreme.

Pro Series Magnum 272R™ Transmission
The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Rustler VXL.

Class-Leading Velineon Brushless Power
The Velineon brushless motor and electronic speed control (ESC) deliver the ultimate in efficiency, speed, and run time. With the Rustler VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 70 mph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.

Traxxas Stability Management®
Micro Receiver, TQi 2.4GHz with Traxxas Link and TSM (5-channel) (#6533) (three-quarter view)Traxxas Stability Management (TSM) works behind the scenes to help prevent spinouts and loss of control on slippery surfaces. TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds.

FEATURES:

• Traxxas Stability Management TSM®
• Powered by the Velineon® Brushless Power System
• Rustler VXL reaches speeds in excess of 70mph!*
• Waterproof electronics extend brushless power and performance to water, mud, and snow
• Velineon VXL-3s Electronic Speed Control
• LiPo and NiMH compatible with two-stage low-voltage detection
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ – 50% forward / brake / 50% reverse (patented)
• Velineon 3500 brushless motor
• Consistent high-power output
• Low-maintenance design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• TQi 2.4GHz transmitter
• Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel turnbuckles and captured rod ends
• High Performance Magnum 272R transmission
• All-metal internal gears
• Sealed beveled-gear differential
• 3.2 mm aluminum motor plate
• Low-profile case
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch
• External gear cover with easy slipper access
• Updated heavy-duty telescoping U-joint driveshafts and yokes

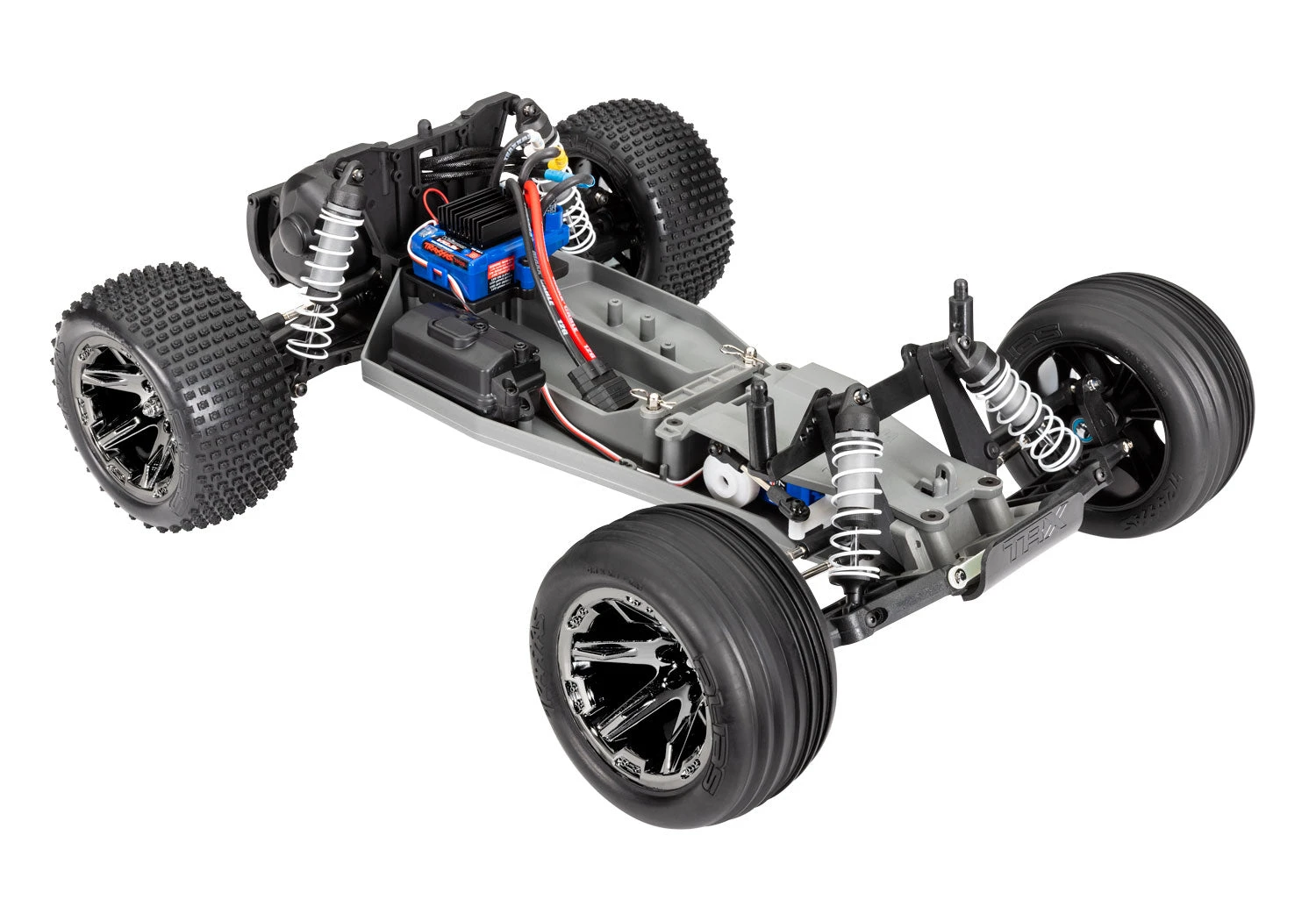

• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias® step-pin rear tires and Alias ribbed front tires offer superior
• off-road traction
• Rustler’s tires include performance foam inserts and come
• pre-glued on black chrome 2.8″ All-Star™ wheels
• Tough ProGraphix® pre-painted body
• Wing attaches securely to the body with precision hex hardware

SPECIFICATIONS:

• Length: 17.5 inches (445 mm)
• Front Track: 12.25 inches (311 mm)
• Rear Track: 12.25 inches (311 mm)
• Weight: 59.6 ounces (1.69 kg)
• Height (Overall): 7 inches (178 mm)
• Wheelbase: 11.4 inches (289 mm)
• Front Shock Length: Long
• Rear Shock Length: XX-Long
• Front Tires (Pre-Glued): Alias® Ribbed 2.8″
• Rear Tires (Pre-Glued): Alias® Step-Pin 2.8″
• Front Wheels: 2.8″ Black-Chrome (All-Star™)
• Rear Wheels: 2.8″ Black-Chrome (All-Star™)
• Electronic Speed Control: VXL-3s™ Electronic Speed Control
• Motor (Electric): Velineon® 3500 Brushless
• Gear Ratio (internal): 2.72 (Final Drive: 9.05)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch
• Transmission: Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Radio System: TQi™ 2.4GHz Radio System w/TSM Receiver
• Top-Speed: 70+mph**
• Skill Level: 2
• *Battery Tray Dimensions: 166 mm x 47.5 mm x 28 mm
• Required Items: NiMH or LiPo Battery, Charger, 4 “AA” Batteries (Transmitter)

VXL-3s WATERPROOF ESC SPECIFICATIONS:

• Input Voltage:
• NiMH 4-9 Cells (4.8 to 10.8 Volts DC)
• LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
• Case Size: 39 mm x 55 mm x 33 mm
• Weight: 90 grams
• Motor Limit (Brushless): No motor limit
• On Resistance Forward: 0.00075 Ohms
• On Resistance Reverse: 0.00075 Ohms
• BEC Voltage: 6.0 V
• BEC Current: 2.5A
• Power Wire: 12-Gauge Maxx® Cable
• Input Harness Wire: 26 Gauge / 100 mm
• Low Voltage Detection: 2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Profile selection:
• Sport Mode:
• 100% FWD, 100% BRAKES, 100% REV
• Race Mode:
• 100% FWD, 100% BRAKES, NO REV
• Patented Training Mode:
• 50% FWD, 100% BRAKES, 50% REV
• Single-Button Setup: Yes, Traxxas EZ-Set®
• Battery Input Connector : Traxxas High-Current Connector
• Motor Types : Brushless
• Ports: RX Input, auxiliary fan

*Battery expansion kit available (#3725X)
**With 3S LiPo battery and optional 31-tooth pinion gear (sold separately)
