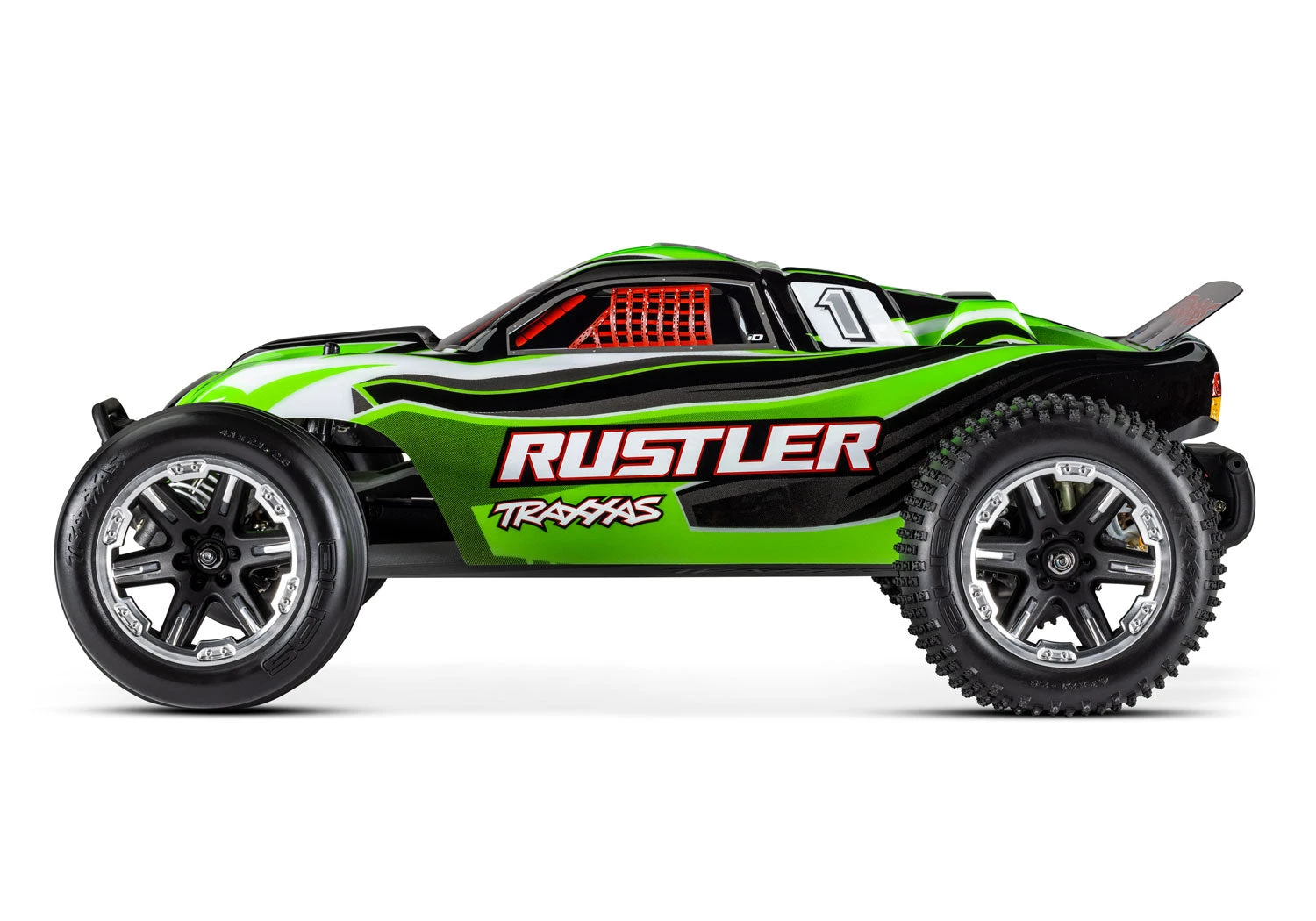

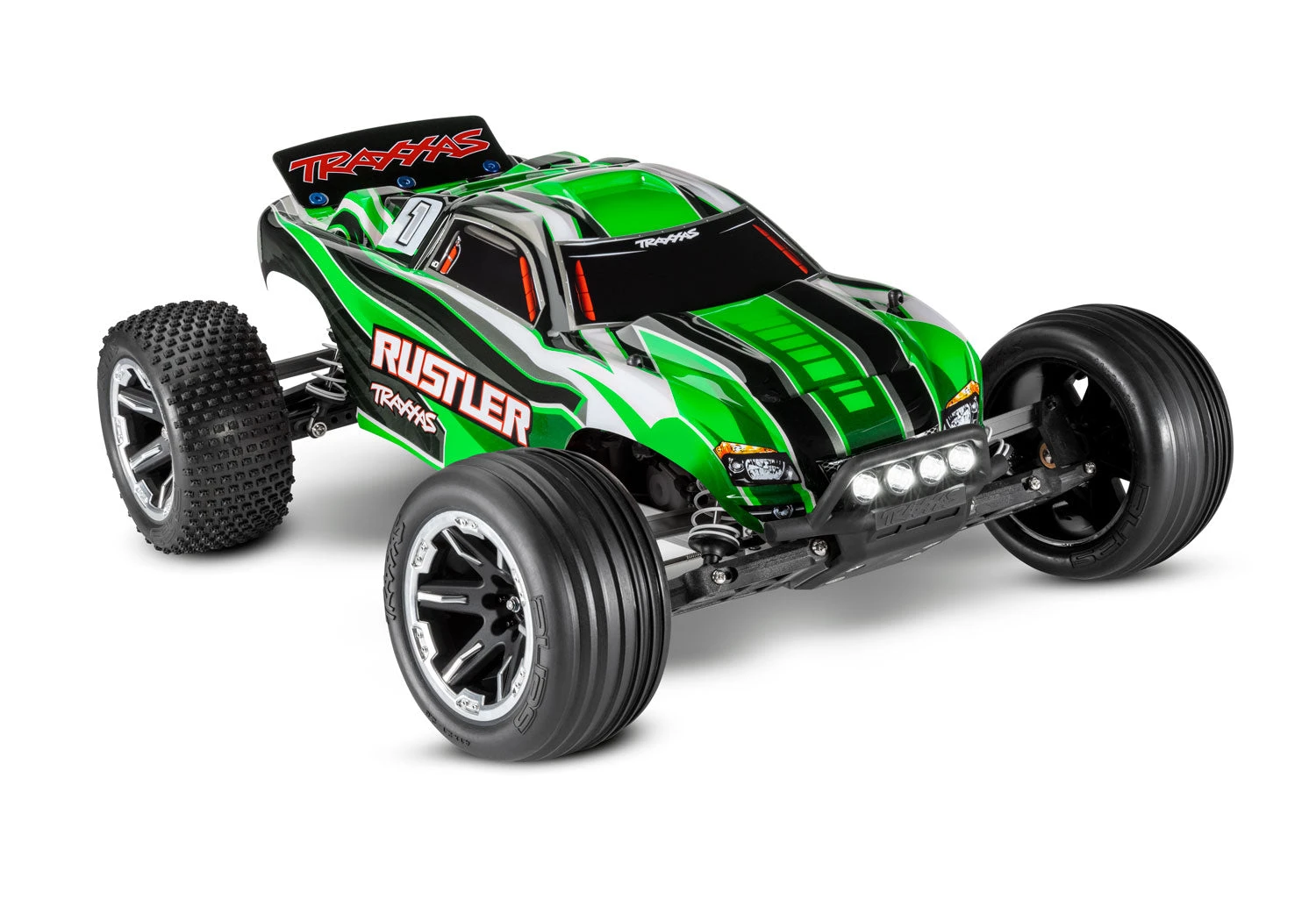

Traxxas 37054-61 1/10 XL-5 Brushed 2WD Rustler RTR Stadium Truck with LED Lights – Green

The Traxxas Rustler RC stadium truck sits low and wide for maximum high-speed stability and cornering speed. The short wheelbase and lightweight chassis provide quick steering response for an agile feel not found on other trucks. Rustler dominates dirt tracks and tears up the tarmac with a blistering 35+ MPH* top speed. Traxxas’ waterproof electronics let you live out your wildest off-road adventures blasting though puddles, slinging mud, and shredding snow. Rustler delivers power-sliding, full-throttle fun in a Ready-to-Race® package backed by Traxxas’ legendary innovation and toughness.

Rustler’s powerful Titan 12T 550 motor is made for rock-crushing torque, lightning-quick acceleration, hardcore wheelies, explosive jumping, and just about any other 4-wheel fun that demands real horsepower. The Titan’s oversize armature features 12 turns of pure copper wire for big torque and increased power-handling. The integrated cooling fan pulls cool air through the motor to keep temperatures down for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run.

The waterproof XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

Rustler includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

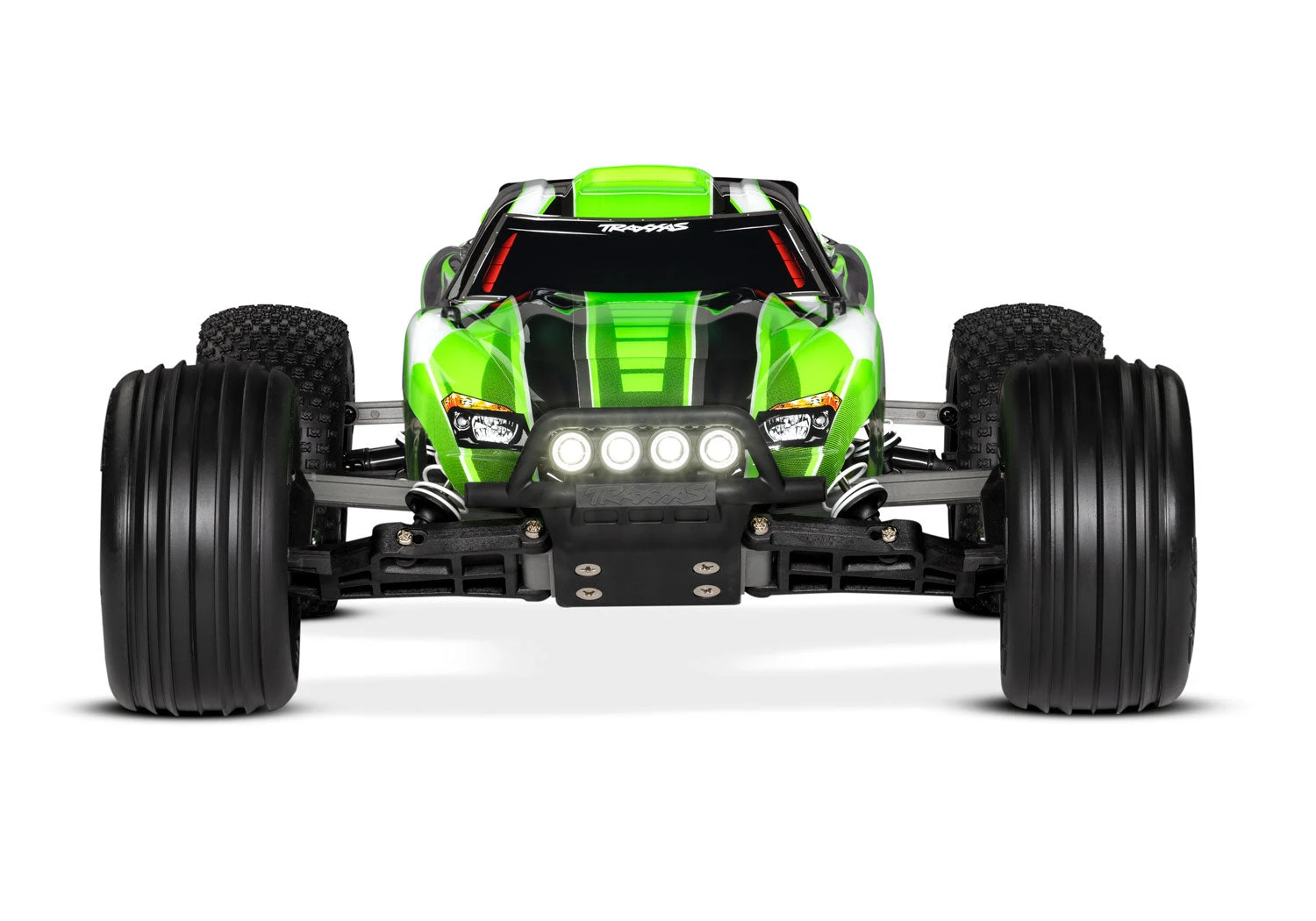

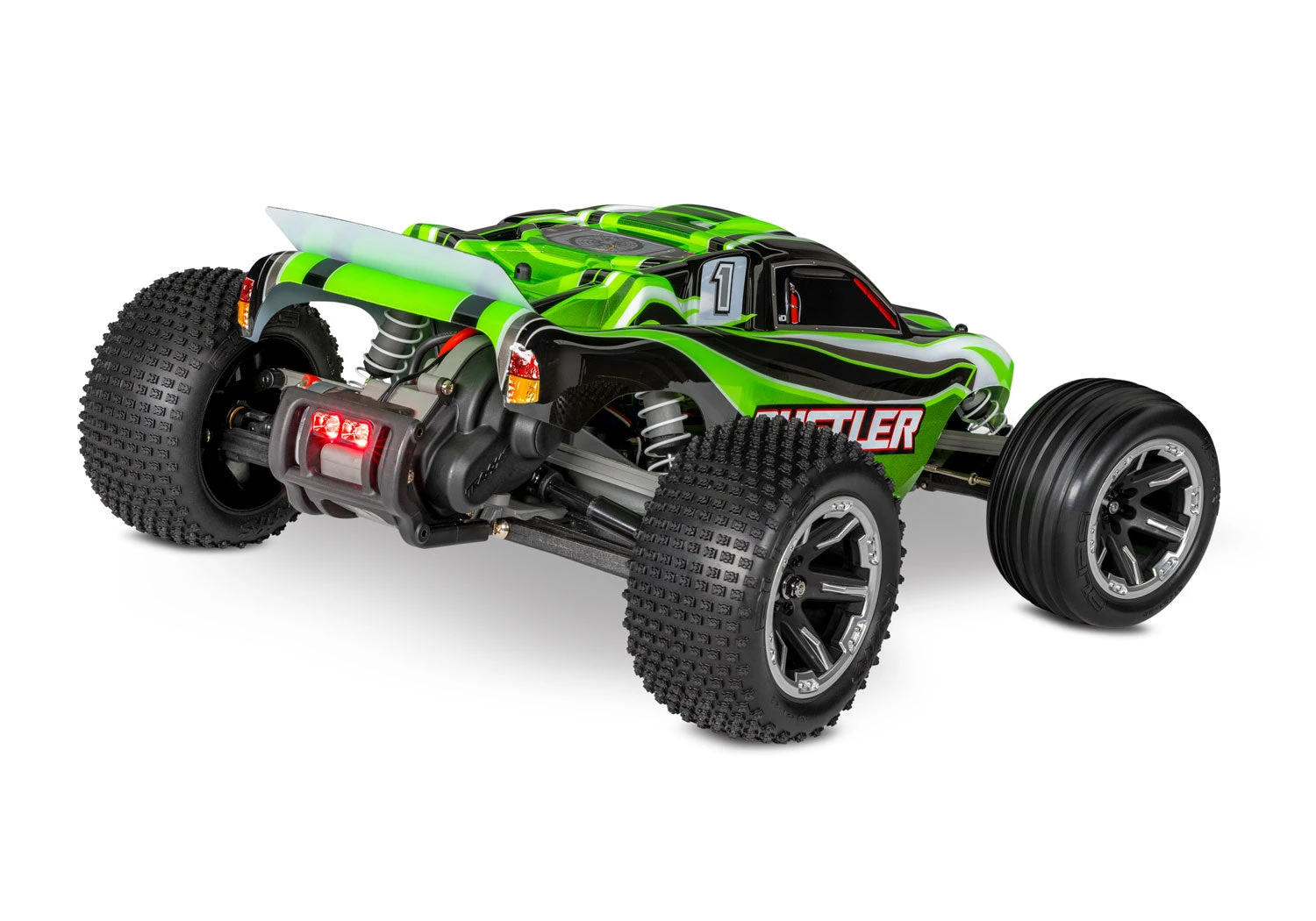

Rustler’s LED lighting extends your fun long after dark. Four brilliant white lights illuminate the path ahead while dual red LEDs let you track Rustler’s progress from behind. The lights are protected behind rugged bumpers and the entire system is waterproof for worry-free performance.

FEATURES:

• Traxxas 4-amp DC Peak Detecting Fast Charger
• Traxxas Power Cell 3000 mAh, 8.4V, NiMH Battery with iD®
• Traxxas TQ 2.4GHz Radio System
• Traxxas #6519 TQ 3-channel micro receiver
• Waterproof electronics permit driving in water, mud and snow
• High-torque Waterproof Traxxas #2056 steering servo
• Powerful Titan® 12T 550 motor with internal cooling fan.
• Rustler reaches speeds in excess of 35 mph using the included optional 28-tooth pinion gear*
• High-performance waterproof XL-5™ Electronic Speed Control.
• Innovative watersealed design
• Three Drive Profiles
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• Front and rear LED lighting
• Large axle carriers with 5×11 mm Oilite Bushings
• Tough Magnum 272™ transmission
• Sealed gearbox protects the transmission
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Telescoping U-joint driveshafts
• Fiber-composite monocoque chassis.
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs with responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Alias® step-pin rear tires and ribbed front tires offer superior off-road traction
• Rustler’s tires include performance foam inserts and they come
• pre-glued on black and chrome 6-spoke wheels
• ProGraphix® multi-colored painted body
• Wing is securely attached to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

SPECIFICATIONS:

• Length: 18.1 inches (445 mm)
• Front Track: 12.25 inches (311 mm)
• Rear Track: 12.25 inches (311 mm)
• Weight: 59.6 ounces (1.69 kg)
• Height (overall): 7 inches (178 mm)
• Wheelbase: 11.4 inches (289 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires (pre-glued): Alias® Ribbed 2.8″
• Rear Tires (pre-glued): Alias® Step-Pin 2.8″
• Front Wheels: 2.8″ Black and Chrome 6-Spoke
• Rear Wheels: 2.8″ Black and Chrome 6-Spoke
• Electronic Speed Control: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-turn 550)
• Steering Servo: #2056 High Torque Waterproof
• Transmitter: TQ 2.4GHz Radio
• Receiver: #6519 TQ 3-Channel Micro
• Gear Ratio (internal): 2.72 (final drive: 10.17)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch
• Transmission: Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Top-Speed: 35+mph**
• Skill Level: 1
• *Battery Tray Dimensions: 166 mm x 47.5 mm x 28 mm
• Included Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas Power Cell 3000 mAh, 8.4V, NiMH Battery with iD®
• Required Batteries: 4 “AA” (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 mm x 55 mm x 15.5 mm
• Weight: 2.44 ounces
• Motor Limit: 15-turns*** (540 Size), 12-turns*** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5 inches
• Input Harness Wire: 26 Gauge / 9 inches
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode:
• 100% FWD, 100% brakes, 100% REV
• Race Mode:
• 100% FWD, 100% brakes, no REV
• Training Mode (patented):
• 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®

*Battery expansion kit available (#3725X)
**With 7-cell battery and included optional 28-tooth pinion gear
***Properly Geared
