Traxxas 36054-61 1/10 XL-5 Brushed 2WD Stampede  RTR Monster Truck with LED Lights – Orange

The Stampede’s legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 30+ mph* and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and the Titan® motor’s massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don’t stand a chance against this high-octane monster truck thanks to Traxxas’ waterproof electronics. Add more excitement to your RC adventures with the quality and performance of the Traxxas Stampede.

The Stampede’s powerful Titan 12T 550 motor is made for rock-crushing torque, lightning-quick acceleration, hardcore wheelies, explosive jumping, and just about any other 4-wheel fun that demands real horsepower. The Titan’s oversize armature features 12 turns of pure copper wire for big torque and increased power-handling. The integrated cooling fan pulls cool air through the motor to keep temperatures down for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run.

The waterproof XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

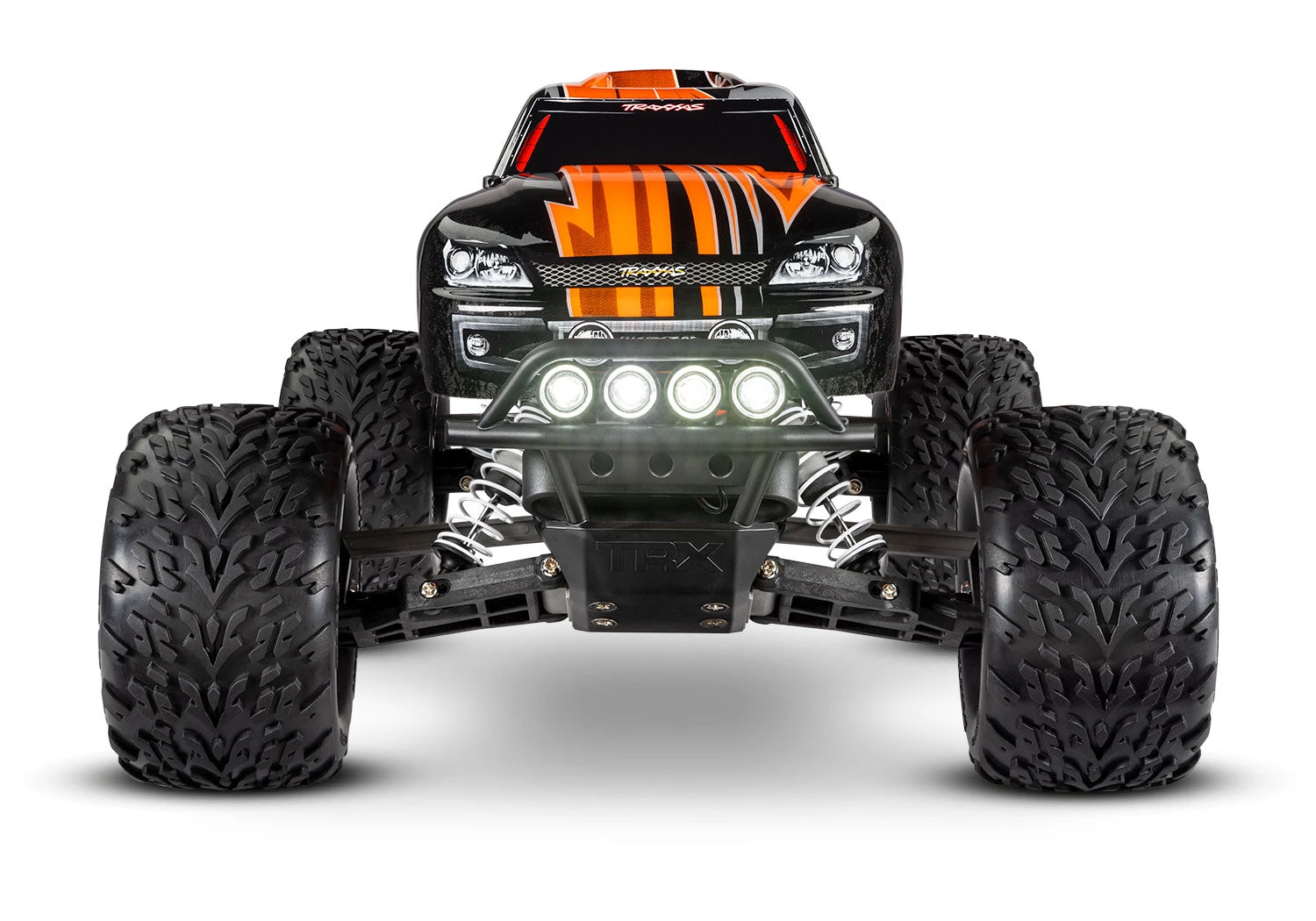

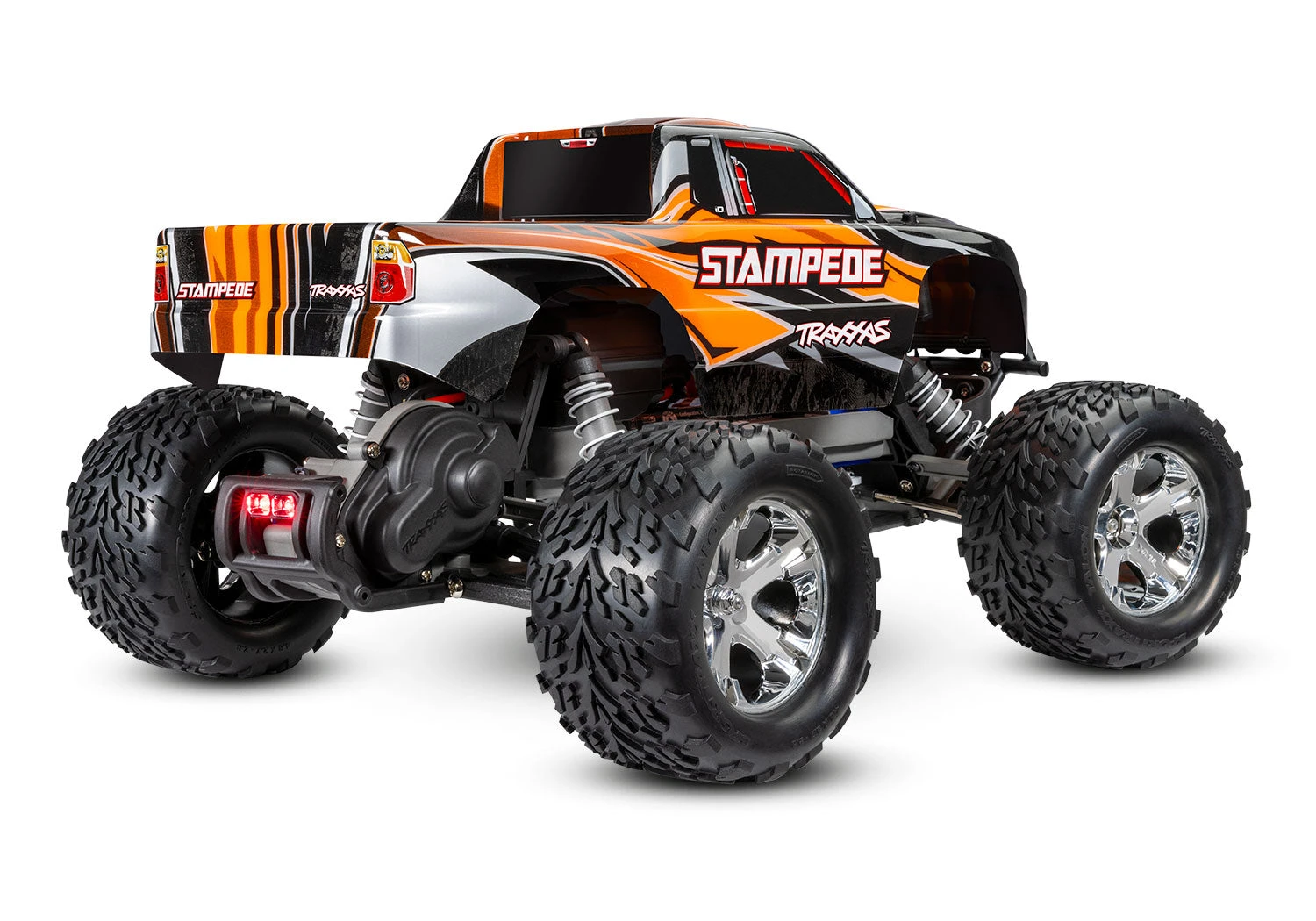

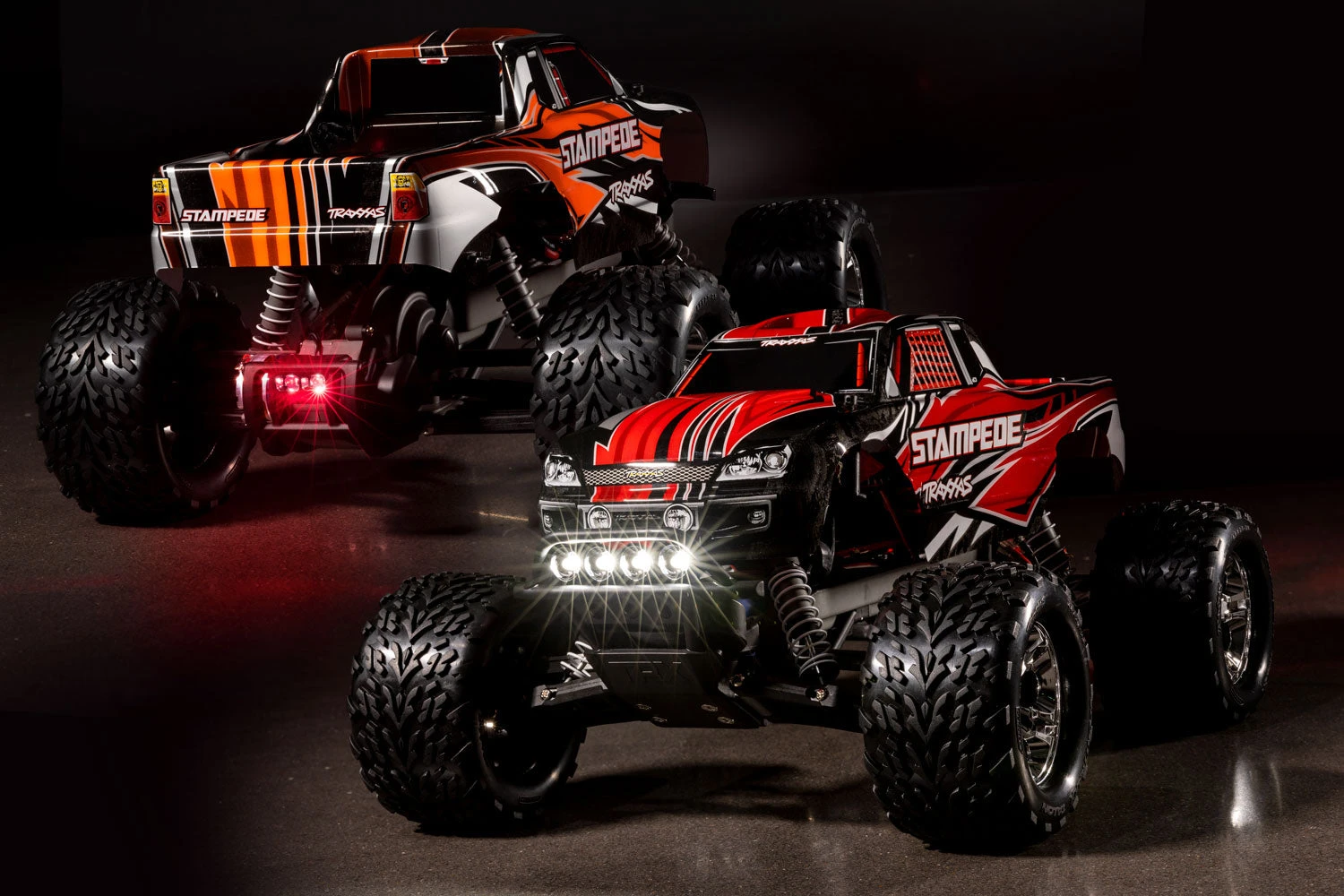

Stampede’s LED lighting extends your fun long after dark. Four brilliant white lights illuminate the path ahead while dual red LEDs let you track Stampede’s progress from behind. The lights are protected behind rugged bumpers and the entire system is waterproof for worry-free performance.

FEATURES:

• 4-amp DC Peak Detecting Fast Charger
• Traxxas 7-cell NiMH battery with iD®
• TQ 2.4GHz radio system
• Front and rear LED lighting
• Waterproof electronics permit driving in water, mud and snow
• High-torque Waterproof Traxxas #2056 steering servo
• Monstrous 4-inches of ground clearance
• Top speed over 30mph*
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Innovative watersealed design
• Three Drive Profiles
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• Tough Magnum™ 272 transmission
• Sealed gearbox protects the transmission
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Efficient telescoping U-joint driveshafts
• Fiber-composite monocoque chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Talon™ 2.8″ tires are pre-glued on stunning mirror-chrome 2.8″ All-Star™ wheels
• Performance foam tire inserts
• ProGraphix® multi-colored painted body

SPECIFICATIONS:

• Length: 16.9 inches (428 mm)
• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Weight: 65.3 ounces (1.85 kg)
• Height (overall): 9.5 inches (241 mm)
• Wheelbase: 10.6 inches (270 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires (pre-glued): Talon™ 2.8″
• Rear Tires (pre-glued): Talon™ 2.8″
• Front Wheels: 2.8″ Mirror-Chrome (All-Star™)
• Rear Wheels: 2.8″ Mirror-Chrome (All-Star™)
• Electronic Speed Control: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-Turn)
• Steering Servo: #2056 High Torque Waterproof
• Transmitter: TQ 2.4GHz Radio
• Receiver: #6519 3-Channel Micro
• Gear Ratio (internal): 2.72 (final drive: 12.34)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch
• Transmission: Magnum 272™
• Steering: Single Point
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Top Speed: 30+mph**
• Skill Level: 1
• *Battery Tray Dimensions: 164 mm x 46 mm x 26 mm
• Included Charger: 4-amp DC Peak Detecting Fast Charger
• Included Batteries: Traxxas 7-cell NiMH battery with iD®
• Required Batteries: 4 “AA” (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 mm x 55 mm x 15.5 mm
• Weight: 2.44 ounces
• Motor Limit: 15-turns*** (540 Size), 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5 inches
• Input Harness Wire: 26 Gauge / 9 inches
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode:
• 100% FWD, 100% brakes, 100% REV
• Race Mode:
• 100% FWD, 100% brakes, no REV
• Training Mode (patented):
• 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®

*Battery expansion kit available (#3725X)
**With 7-cell battery and included optional 21-tooth pinion gear
***Properly Geared
