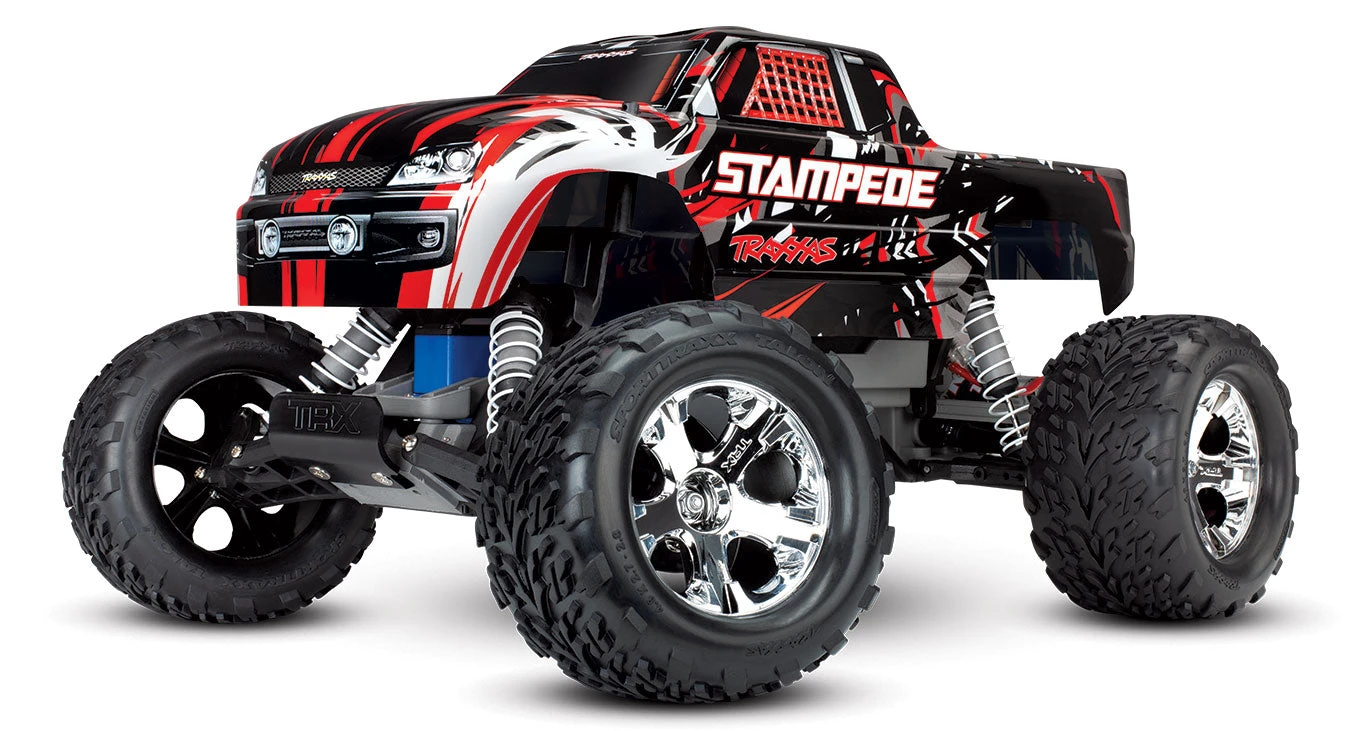

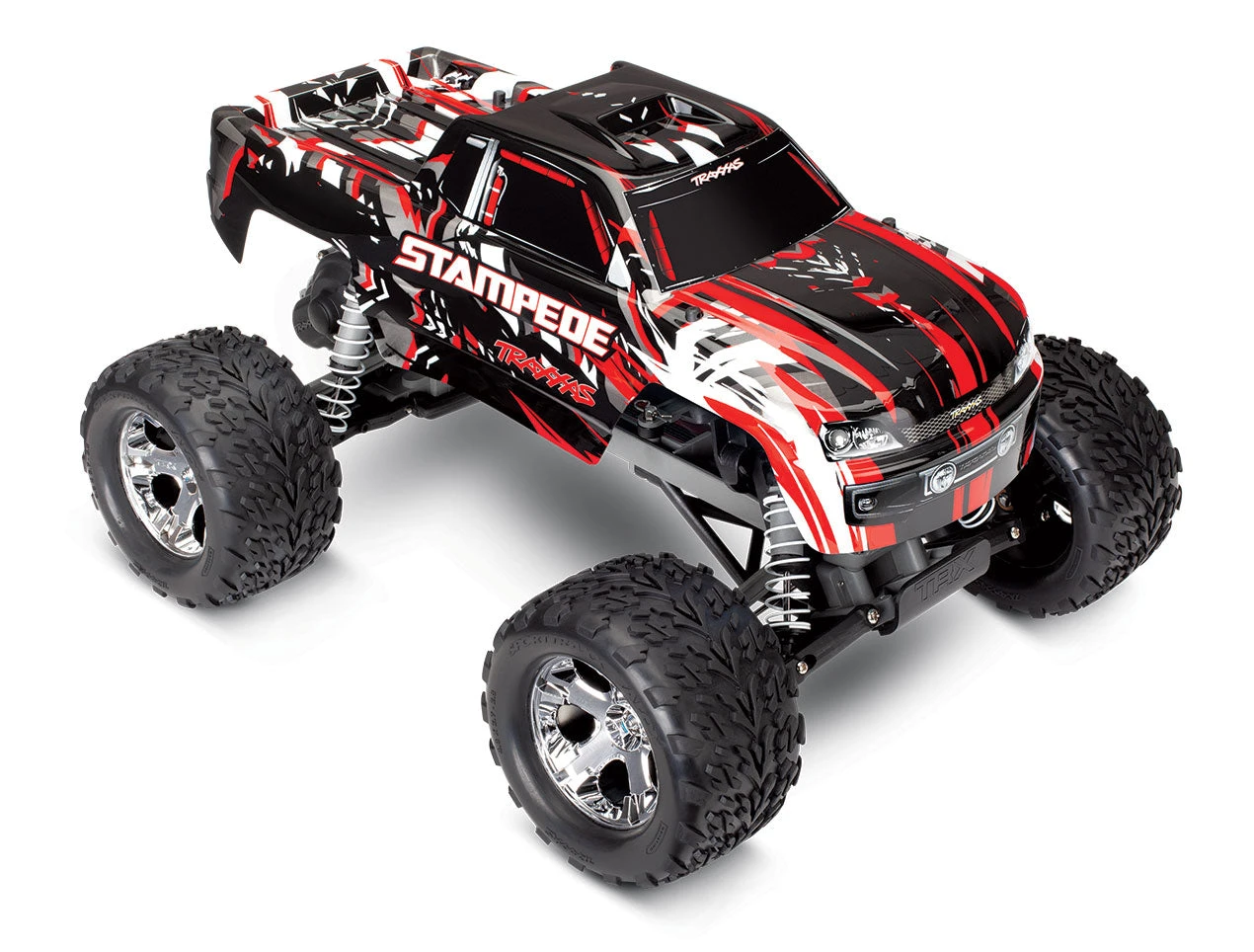

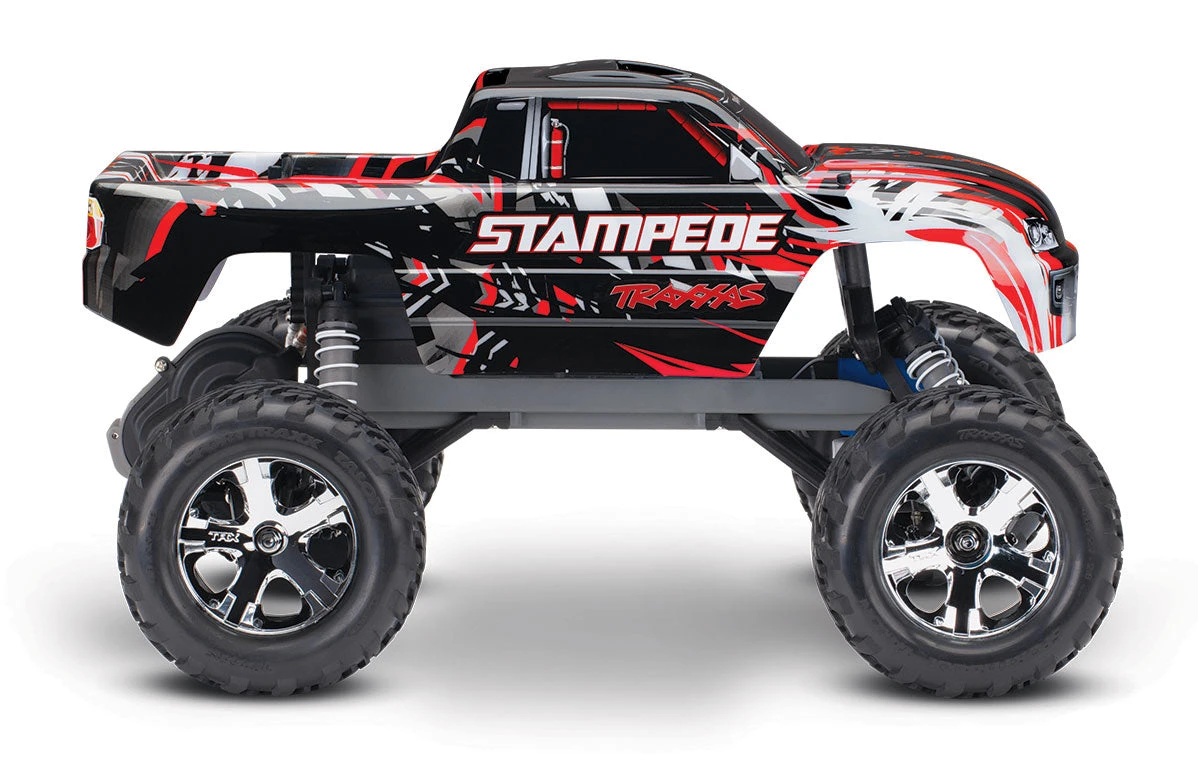

Traxxas 36054-4 Stampede 1/10 Scale RTR 2WD Monster Truck Red

The best-selling Traxxas Stampede is the original high performance monster truck. Its legendary ruggedness has made the Stampede name synonymous with off-road fun. Today, the Stampede has a bold look, innovative features, and of course, more power. With a top speed of 30+mph and a tall drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Waterproof electronics allow it to blast through puddles and shred snow for all-weather adventure. Step up to genuine Traxxas quality and performance and discover a whole new level of fun with the Traxxas Stampede!

The Stampede includes a powerful Titan 12T 550 modified motor with internal cooling fan – an industry first for this class of truck! The Titan’s oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for rock-crushing torque, hardcore wheelie launches, explosive jumping, and just about any other 4-wheel fun that demands real horsepower.

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC packs impressive features that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

FEATURES:

• Traxxas TQ 2.4GHz radio system
• Waterproof electronics permit driving in water, mud and snow
• High-torque Waterproof Traxxas #2056 steering servo
• Monstrous 4-inches of ground clearance
• Top speed over 30mph*
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Innovative watersealed design
• Three Drive Profiles
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Speed control and receiver are securely screwed to the chassis
• Efficient Magnum 272™ three-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor
• guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable planetary gear differential
• Efficient telescoping U-joint driveshafts
• Fiber-composite monocoque chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won’t pop off for superior durability
• Talon™ 2.8″ tires are pre-glued on stunning mirror-chrome
• 2.8″ All-Star™ wheels
• Performance foam tire inserts
• ProGraphix® multi-colored painted body

SPECIFICATIONS:

• Length: 16.25 inches (413 mm)
• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Weight: 65.3 ounces (1.85 kg)
• Height (overall): 9.5 inches (241 mm)
• Wheelbase: 10.63 inches (270 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires (pre-glued): Talon™ 2.8″
• Rear Tires (pre-glued): Talon™ 2.8″
• Front Wheels: 2.8″ Mirror-Chome (All-Star™)
• Rear Wheels: 2.8″ Mirror-Chome (All-Star™)
• Electronic Speed Control: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-Turn)
• Steering Servo: #2056 High Torque Waterproof
• Transmitter: TQ 2.4GHz Radio
• Receiver: #6519 3-Channel Micro
• Gear Ratio (internal): 2.72 (final drive: 12.34)
• Differential Type: Planetary
• Gear Pitch: 48-Pitch
• Transmission: Magnum 272™
• Steering: Single Point
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Top Speed: 30+mph**With 7-cell battery and included optional 21-tooth pinion gear.
• Skill Level: 1
• *Battery Tray Dimensions: 164 mm x 46 mm x 26 mm
• Required Items: NiMH or LiPo Battery, Charger, 4 “AA” Batteries (Transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS:

• Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: 31 mm x 55 mm x 15.5 mm
• Weight: 2.44 ounces
• Motor Limit:
• 15-turns** (540 Size) Properly Geared
• 12-turns** (550 Size)Properly Geared
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5 inches
• Input Harness Wire: 26 Gauge / 9 inches
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Patented Training Mode: 50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®
