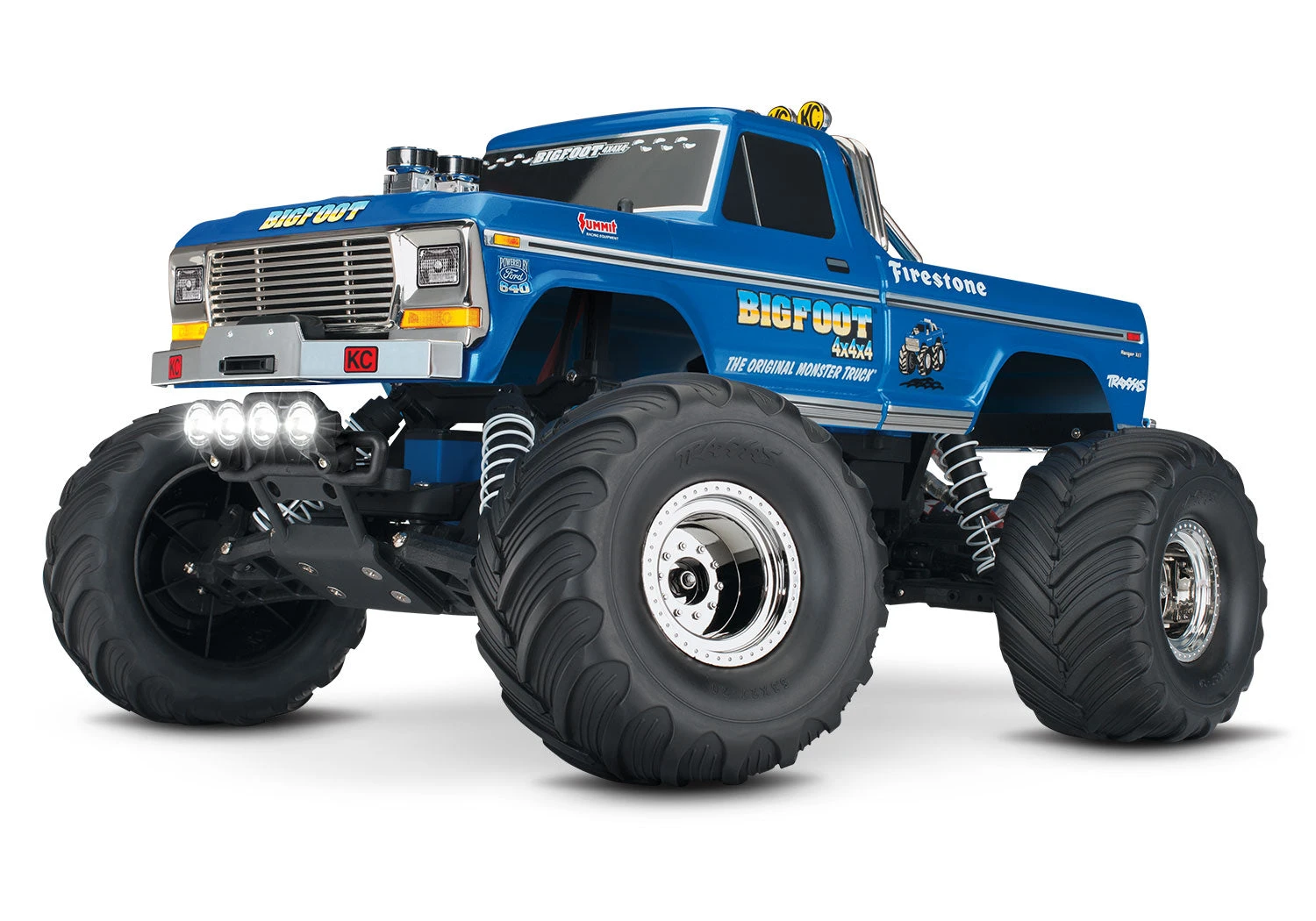

Traxxas 36034-61 XL-5 Brushed 2WD 1/10 BIGFOOT Classic RTR Monster Truck with LED Lights
BIGFOOT® is “The Original Monster Truck”. This is the truck that started the monster truck phenomenon and brought car-crushing fun and excitement to fairgrounds and arenas everywhere. Traxxas faithfully captures the spirit and classic look of BIGFOOT No. 1 in amazing detail with this fully licensed replica. Relive the thrill of your first monster truck event with this classic powerhouse. Hammer the throttle for non-stop wheelies and crush the competition underneath its towering stance. Built Traxxas Tough™ for all-day fun, BIGFOOT comes out of the box fully assembled, waterproof, and Ready-To-Race®.
Switch on the power and drive! That’s all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance. The TQ’s ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.
BIGFOOT includes a 4-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.
The included iD-equipped 3000mAh, 8.4V, Power Cell NiMH battery delivers all the performance that’s been engineered into your Traxxas model. Power Cell batteries deliver free-flowing power and maximum punch with premium quality construction. Optional Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. For even greater speed and runtime, a full line of optional NiMH and LiPo batteries are available.
The waterproof XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. The XL-5 features three throttle profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. The exclusive and patented Training Mode™ reduces the overall power output of the XL-5 by 50%, making it easier for young or new drivers to develop their control skills before unleashing full-power.

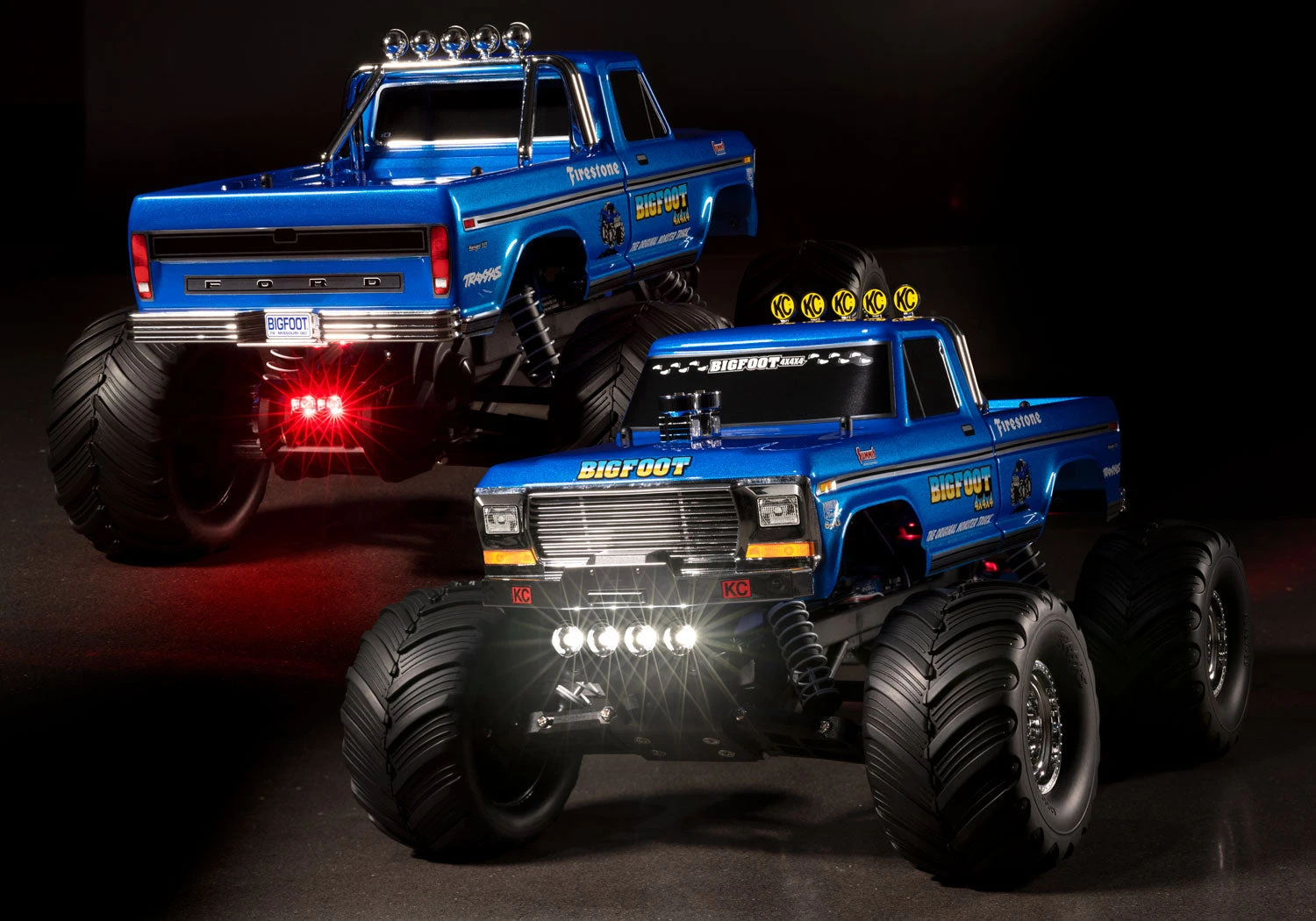

BIGFOOT No. 1 now includes LED lighting as standard equipment for more fun after dark. Thick impact-resistant bumpers protect the lights against crash damage with fully-waterproof construction for all-weather fun.
FEATURES:
- Scale Replica Body of the BIGFOOT® No. 1 Truck
- 4-amp DC Peak Detecting Fast Charger
- Traxxas 7-cell NiMH battery with iDTM
- Front and rear LED lighting
- Traxxas TQ 2.4GHz radio system
- Waterproof electronics permit driving in water, mud and snow
- Traxxas #6519 3-channel micro receiver
- Waterproof receiver box
- High-torque Waterproof Traxxas #2056 steering servo
- Monstrous 4-inches of center ground clearance
- The included optional 19-tooth pinion gear pushes BIGFOOT® to speeds over 30mph*
- Powerful Titan® 12T 550 motor with internal cooling fan
- High-performance waterproof XL-5™ Electronic Speed Control
- Innovative watersealed design
- Three Drive Profiles
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
- 12-Turn motor limit for 550 size motors
- 15-Turn motor limit for 540 size motors
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Efficient Magnum 272™ three-gear transmission with ball bearings
- Sealed gearbox protects the transmission with beefed up motor guard for extra protection
- Torque-Control™ slipper clutch system
- External gear cover with easy slipper access
- Reliable planetary gear differential
- Efficient telescoping U-joint driveshafts
- Fiber-composite monocoque chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks™ with X-ring technology
- Powder-coated shock springs feature a new responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won’t pop off for superior durability
- Bright Chrome Dish dual-profile wheels
- Pre-glued Terra-Groove 2.2″ tires
- ProGraphix® replica BIGFOOT body
SPECIFICATIONS:
- Length: 18.1 inches (459 mm)
- Front Track: 12.75 inches (324 mm)
- Rear Track: 12.75 inches (324 mm)
- Weight: 65.3 ounces (1.85 kg)
- Height (overall): 9.5 inches (241 mm)
- Wheelbase: 10.6 inches (270 mm)
- Front Shock Length: Long
- Rear Shock Length: XXLong
- Front Tires: Terra-Groove 2.2″
- Rear Tires: Terra-Groove 2.2″
- Front Wheels: Bright Chrome Dish (Dual Profile)
- Rear Wheels: Bright Chrome Dish (Dual Profile)
- Electronic Speed Control: XL-5™ Electronic Speed Control
- Motor (electric): Titan® 12T 550 (12-Turn)
- Steering Servo: #2056 High Torque Waterproof
- Transmitter: TQ 2.4GHz Radio
- Receiver: #6519 3-Channel Micro
- Gear Ratio (internal): 2.72 (final drive: 12.34)
- Differential Type: Planetary
- Gear Pitch: 48-Pitch
- Transmission: Magnum 272™
- Steering: Single Point
- Chassis Type: Modified Tub
- Chassis Material: Composite Nylon
- Top Speed: 30+mph**
- Skill Level: 1
- *Battery Tray Dimensions: 164 mm x 46 mm x 26 mm
- Included Charger: 4-amp DC Peak Detecting Fast Charger
- Included Batteries: Traxxas 7-cell NiMH battery with iD®
- Required Batteries: 4 “AA” (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS:
- Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
- Case Size: 31 mm x 55 mm x 15.5 mm
- Weight: 2.44 ounces
- Motor Limit: 15-turns*** (540 Size), 12-turns*** (550 Size)
- On Resistance Forward: 0.007 Ohms
- On Resistance Reverse: 0.014 Ohms
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5 inches
- Input Harness Wire: 26 Gauge / 9 inches
- PWM Frequency: 1600 Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Profile selection:
- Sport Mode:
- 100% FWD, 100% brakes, 100% REV
- Race Mode:
- 100% FWD, 100% brakes, no REV
- Training Mode (patented):
- 50% FWD, 100% brakes, 50% REV
- Single-button setup: Yes, Traxxas EZ-Set®
*Battery expansion kit available (#3725X).
**With 7-cell battery and included optional 19-tooth pinion gear.
25+mph with 6-cell battery and stock installed pinion.
***Properly Geared
