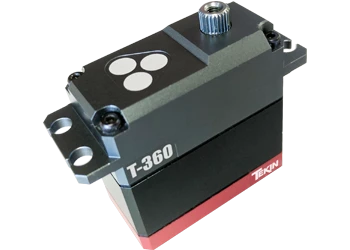

Tekin TT1506 T360 Element Proof Crawler Servo

Hit the trails hard with the Tekin T-360 Crawler Servo. Rocks, Mud, Dirt or Snow. The Element Proof Design means you can tackle any terrain. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you out of a bind. Fine-tune your setup with an extensive set of adjustments via Tekin’s HotWire PC Interface.

SPECIFICATIONS:

• Torque: 8.4 – 7.4 – 6.0V
• 413 – 382 – 344 oz/in
• 29.8 – 27.5 – 24.8 kg/cm
• Dynamic Torque: 8.4 – 7.4 – 6.0V
• 511 – 480 – 453 oz/in
• 36.8 – 34.6 – 32.6 kg/cm
• Speed: 8.4 – 7.4 – 6.0V
• 0.09 – 0.11 – 0.13 sec/60°
• Input Voltage: 4.8V-8.4V
• Gear Set: Full Metal
• Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm
• Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm
• Weight: 2.57oz / 73g

FEATURES:

• Digital Magnetic Position Encoder (DPE)
• ​Specifically Designed for Scale and Crawl Applications
• Included Aluminum 20mm Crowbar HD Clamp Servo Arm
• Full Aluminum Servo Housing
• ​Element Proof Design*
• ​Precision Cut Full Metal Gears
• ​ABEC5 Ball Bearings
• ​High Voltage Capable
• ​High Torque Coreless Motor
• 25T Output Spline
• ​Programmable via HotWire PC Interface
• ​Overload Protection Technology
• ​Thermal Protection Circuitry
• ​Low Voltage Alarm**
• ​Quiet, Efficient, Cool Operation
• ​HDAC: High Density Copper PCB’s

*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.
**Requires HotWire sold separately
