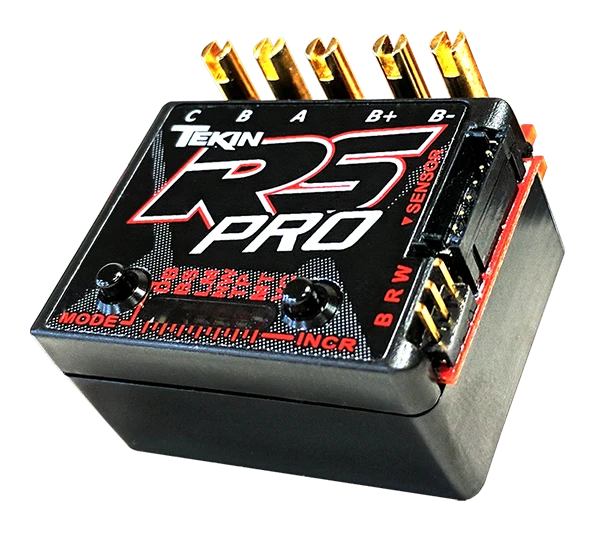

Tekin TT1160 RS Pro Black Edition Brushless Sensored/Sensorless ESC

The RS PRO is back! This RS PRO Black Edition utilizes both hardware and software advances recently developed for our latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a 13.5T, 17.5T or 21.5T SPEC-R motor

for the ultimate Ultra Low Resistance SPEC system! This ESC is not intended to be used with the 6.5T SPEC-R motor.

For 1:10 scale 2WD/4WD Buggy and Stadium Truck and Modified Touring Car we recommend the RSX Modified ESC as these setups tend to run at higher temperatures. The billet housing and fan shroud on the RSX provide sufficient cooling.

SPECS:

• Controls: Forward/Brake/Reverse
• Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*, RS PRO 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
• Motor Limit Brushless Mode: 1S – 2.5T 2-pole 36mm Can, 2S Drag Racing – 2.5T 2-pole 36mm Can, 2S Track Racing – 8.5T 2-pole 36mm Can
• Motor Limit Brushed Mode: 1S – 6 Turn 36mm Can, 2S – 6 Turn 36mm Can
• Max Current: 560amps per phase**
• ON Resistance: .000096ohm**
• BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.0 x 1.3 x .68″ / 24.5 x 33 x 17.25mm
• Weight: 1.23oz / 35g

*RS PRO requires a booster for 1S LiPo operation.
**per manufacturer spec

SPEC OFF ROAD

• ​1:10 2WD Buggy 13.5T / 17.5T
• 1:10 2WD Truck 13.5T / 17.5T
• 1:10 2WD Short Course 13.5T / 17.5T
• 1:10 4WD Buggy 13.5T

SPEC ON ROAD

• ​1:12 2WD SPEC Pan Car 13.5T / 17.5T
• 1:10 2WD SPEC Pan Car 13.5T / 17.5T
• 1:10 World GT 21.5T
• 1:10 2WD Formula 1 21.5 / 25.5T
• 1:10 4WD Touring Car 13.5T / 17.5T

SPEC OVAL

• ​1:10 2WD 13.5T / 17.5T
• 1:10 SK Car 13.5T / 17.5T
• 1:10 Stock Car 13.5T / 17.5T
• 1:10 Winged Sprint 13.5T / 17.5T

DRAG RACING

• 1:10 No Prep
• 1:10 Pro Stock
• 1:10 Pro Mod
• 1:10 Rail

The RS PRO is not recommended for any 2S Modified track racing applications as there is no heat sink or fan. Please see the RSX PRO for your Modified Racing needs!

FEATURES:

• ULR: Ultra Low Resistance Design
• Specifically Designed for Spec & Stock Racing
• RS PRO 1-S equipped with built-in Booster
• 3rd Channel Input for On-The-Fly Drag Brake Adjustments
• QuickTune™ One Touch Programming
• Adjustable Torque Control *
• Adjustable Throttle and Brake Frequencies *
• High Voltage Programmable BEC *
• HotWire™ Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

ON BOARD QuickTune™ PROGRAMMABLE FEATURES

• DB – Drag Brake (13 steps)
• ​BS – Brake Strength (13 steps)
• ​LM – Torque Limiter (7 steps)
• NW – Neutral Width (13 steps)
• TP – Timing Profiles 5 Preset – 2 Custom*
• ​MT – Motor Type Brushless Modes – FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
• Brushed Modes – FWD Only / FWD-REV / FWD-REV Delay
• VC – Voltage Cutoff : RS PRO 2S, 3S, Custom*
• RS PRO 1-S – 1S, Custom*

* requires HotWire™ sold separately.
