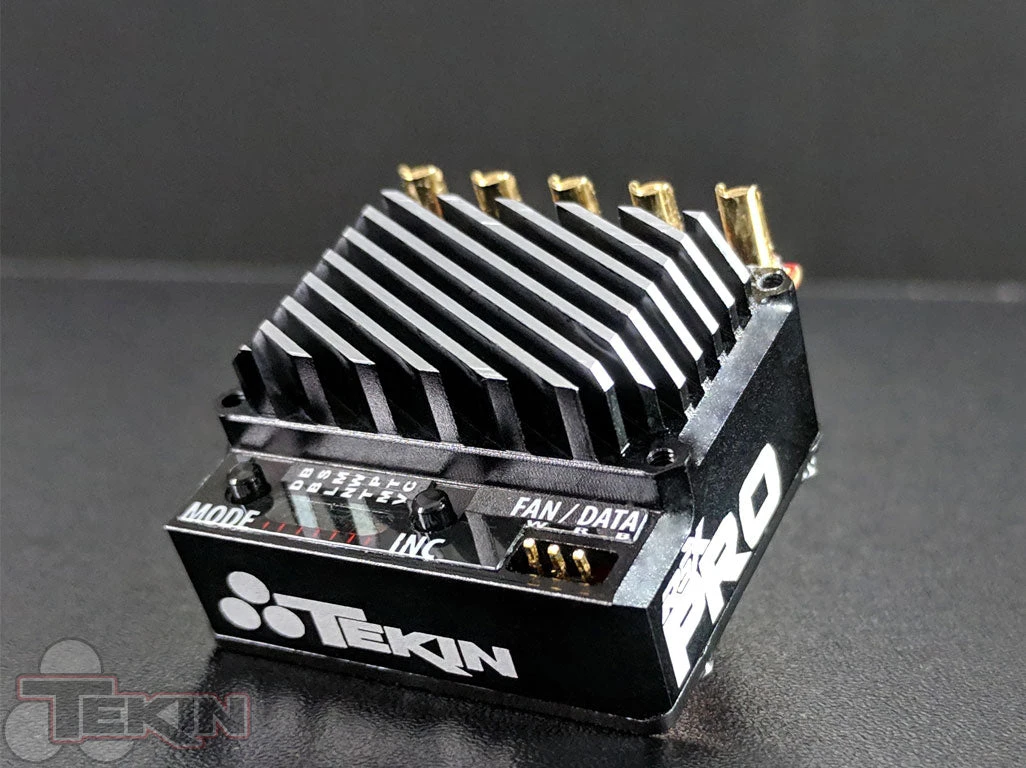

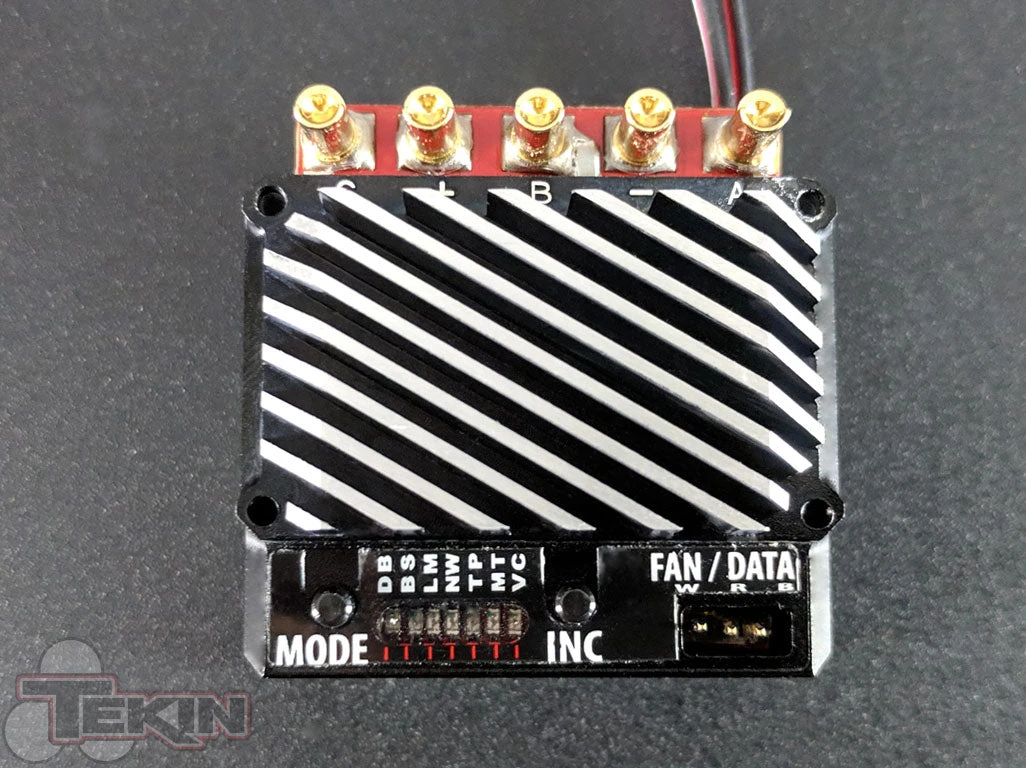

Tekin TT1159 RSXpro Mod Brushless Sensored/Sensorless ESC

The RSX PRO is Tekin’s premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO’s massive power for the win.

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

FEATURES:

• Billet 6061-T6 Aluminum Heat Sink Housing
• NEW FET Package
• ​NEW HD Easy Solder Posts
• ​Optional Shroud and High RPM Cooling Fan
• 3rd Channel Input for On-The-Fly Drag Brake Adjustments
• QuickTune™ One Touch Programming
• Adjustable Torque Control *
• Adjustable Throttle and Brake Frequencies *
• ​HD High Voltage Programmable BEC *
• HotWire™ Programming Port *
• ​On-the-fly Drag Brake Adjustment
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ​ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• ​Brushless and Brushed Motor Drive
• ​Sensored or Sensorless Operation
• ​LiPo Safe with Custom Voltage Cutoffs
• ​Sensor Plug for Precise Commutation
• ​HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

SPECIFICATIONS:

• Controls: Forward/Brake/Reverse
• Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD
• Motor Limit Brushless Mode: : 2S Drag Racing – 3.5T 2-pole 36mm Can
• 2S Track Racing – 3.5T 2-pole 36mm Can
• Motor Limit Brushed Mode: 2S – 6 Turn 36mm Can
• 3S – 12 Turn 36mm Can
• Max Current: 210amps per phase*
• HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.21 x 1.43 x .82″ / 31.2 x 37.2 x 21mm
• Weight: 1.4oz / 40g
