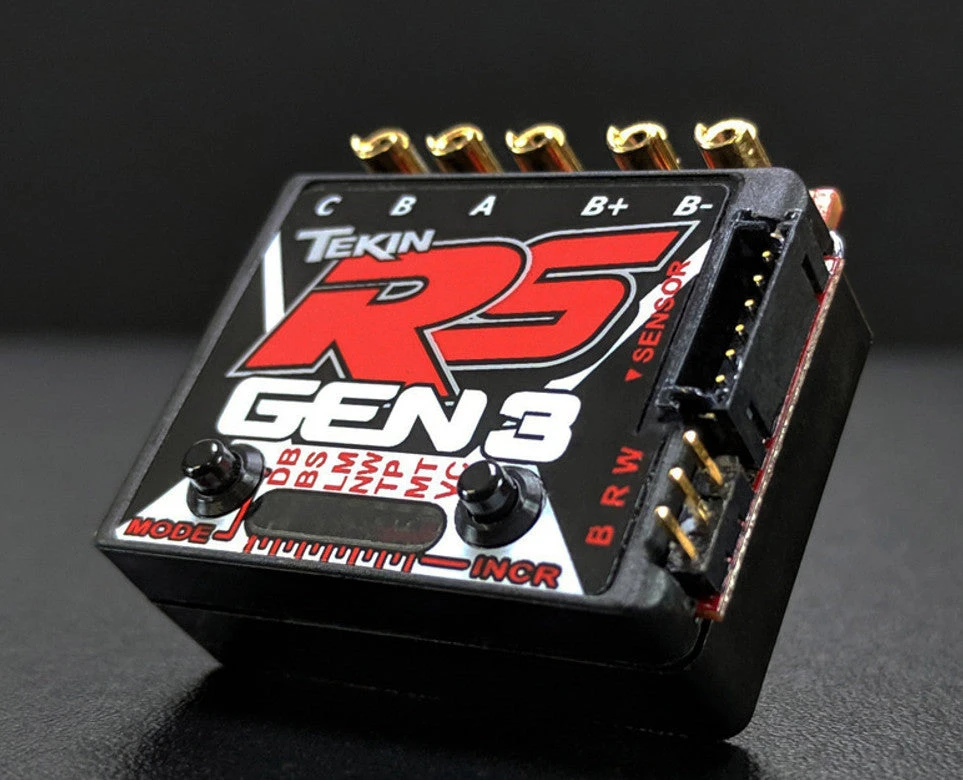

Tekin TT1156 RS Gen3 Brushless Sensored ESC

The RS GEN3 brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

Standard features include an updated HD solder post design for easy soldering, a High Voltage BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and new firmware make the RS GEN3 our smoothest, best-driving RS ever.

FEATURES:

• QuickTune™ One Touch Programming

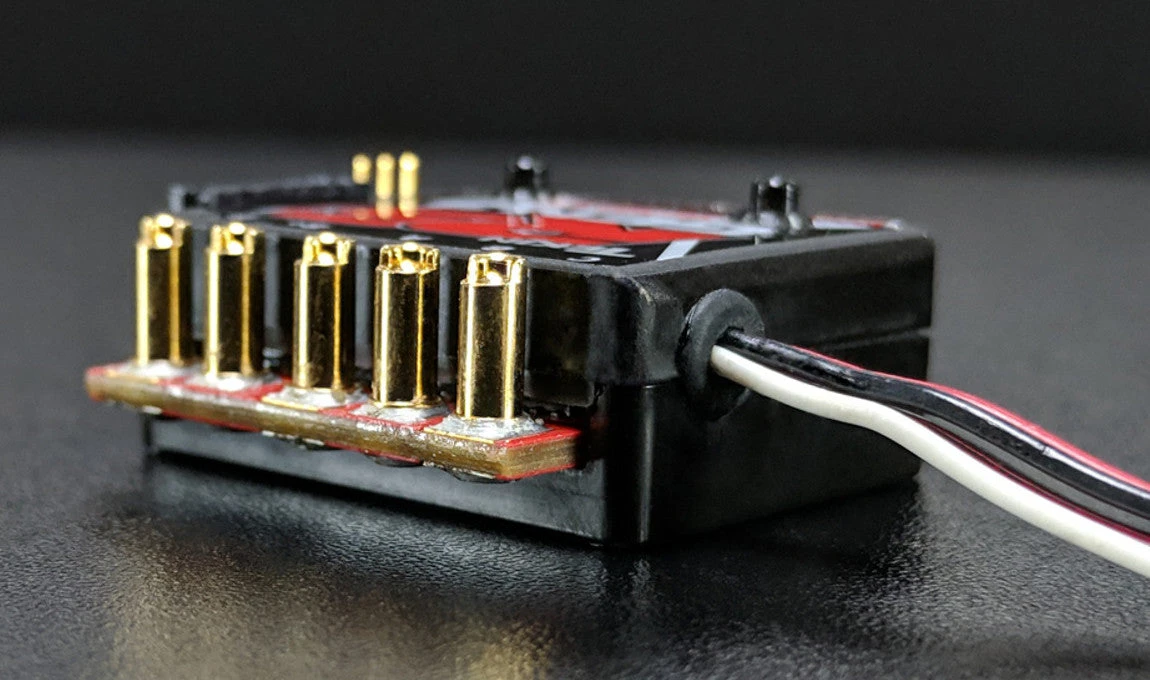

• New HD Solder Post Design
• Adjustable Torque Control
• 3rd Channel Input for On-The-Fly Drag Brake Adjustments
• Adjustable Throttle and Brake Frequencies
• High Voltage Programmable BEC
• HotWire™ Programming Port
• Data Logging Capability
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

SPECIFICATIONS:

• Controls: Forward/Brake/Reverse
• Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD **3S LiPo on 2300kV and down or 10.5T and up ONLY**
• Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
• Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
• Motor Limit Brushed 2S: 12 Turn 36mm Can
• Motor Limit Brushed 3S: 20 Turn 36mm Can
• Max Current: 140amps per phase
• BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
• Weight: .83oz / 23.5g
