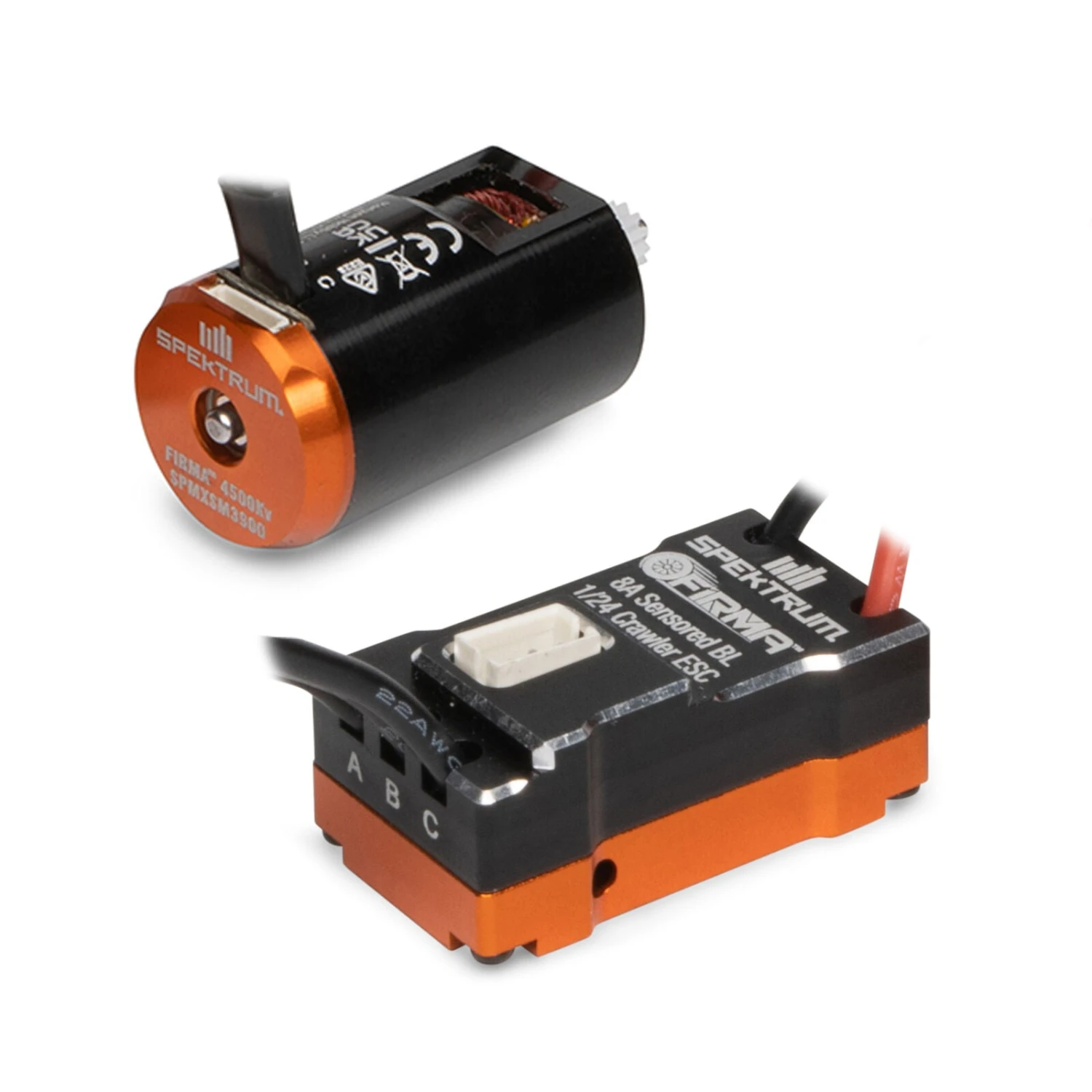

Spektrum SPMXSEMC18 Firma Brushless Crawler Motor Combo for 1/24 Crawlers

The Spektrum™ Firma™ 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.

FEATURES:

• Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
• Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
• *Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)
• All included – includes motor, ESC, sensor wire and pinion gears
• Crawler Mode: Forward and instant reverse with drag brake
• 8 Amp (40 Amp Burst) 1-2S Compatible ESC
• Compact Size and Ready to Install
• JST PH 2.0 connector to fit the Dynamite 7.4V 350mAh 2S Lipo Battery

SPECIFICATIONS:

• Connector Type: PH 2.0 (High-Current Ultra Micro)
• ESC Type: Brushless Sensored
• Product Length: 1.05″ (27 mm)
• Auto Cutoff: Yes
• BEC Continous Current: 0.3A
• Low-Voltage Cutoff Programmable: No
• Number of Poles: 2
• Output Connector: 2mm Bullet
• Overload Protection: Yes
• Product Weight: 10g ESC / 16g Motor
• Water-Resistant: No
• Outer Diameter: 0.6″ (15 mm)
• Product Width: 0.6″ (15 mm)
• BEC: Yes
• BEC Voltage: 5V
• Input Voltage: 1 – 2S LiPo
• Product Height: : 0.46″ (12 mm)
• RPM/Volt (Kv): 4500
• Sensored: Yes
• Forward: Yes
• Reverse: Yes
• Brakes: Integral with ESC
• Programmable: No
• Maximum Burst Current: 40A
• Maximum Continuous Current: 8A
• Motor Type: Brushless Sensored

INCLUDES:

• (1) 4500Kv Sensored Brushless Motor
• (1) 8 Amp (40 Amp Burst) 1-2S Compatible ESC
• (1) Firma SCX24/AX24 Brushless Sensored Combo Instruction Manual
