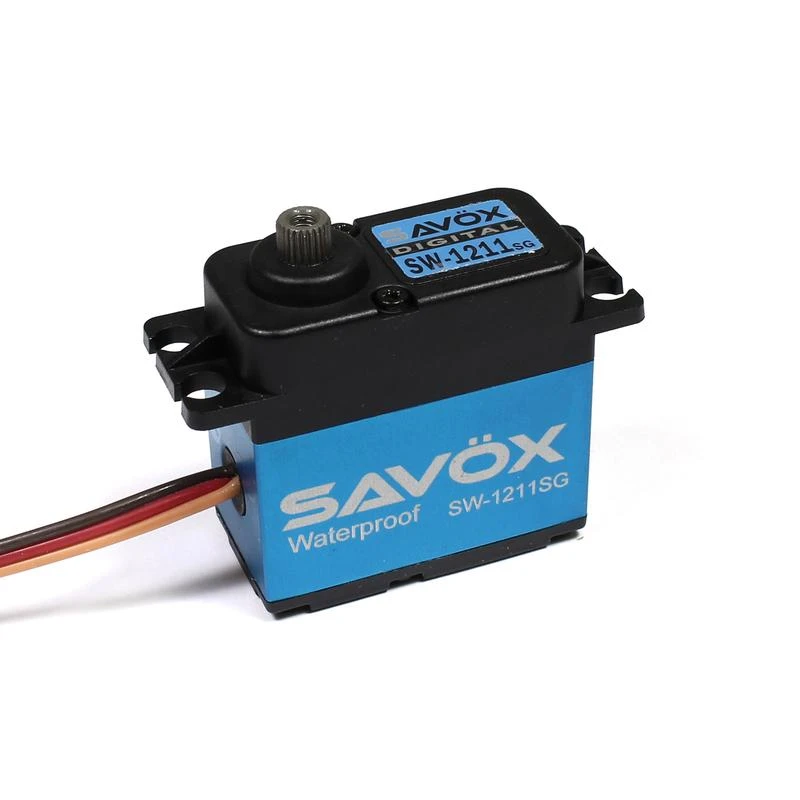

Savox SW-1211SG Coreless Digital Waterproof Servo

The SW-1211SG Servo is an extremely versatile waterproof servo that’s a great updgrade to standard RTR servos and fitsmAny conditions where use is vital in rain, sleet, or snow.

FEATURES:

• Waterproof construction for harsh elements.
• Strong unique steel gears provide durability and assurance.
• Capable of HV operation.
• Ideal for 1/10 vehicles and boats

SPECIFICATIONS:

• Torque @6v – 15.0kg/208.3oz-in
• Torque @7.4v – 25.0kg/347.2.0oz-in
• Speed @6v – 0.10 sec/60 deg
• Speed @7.4v – 0.08 sec/60 deg

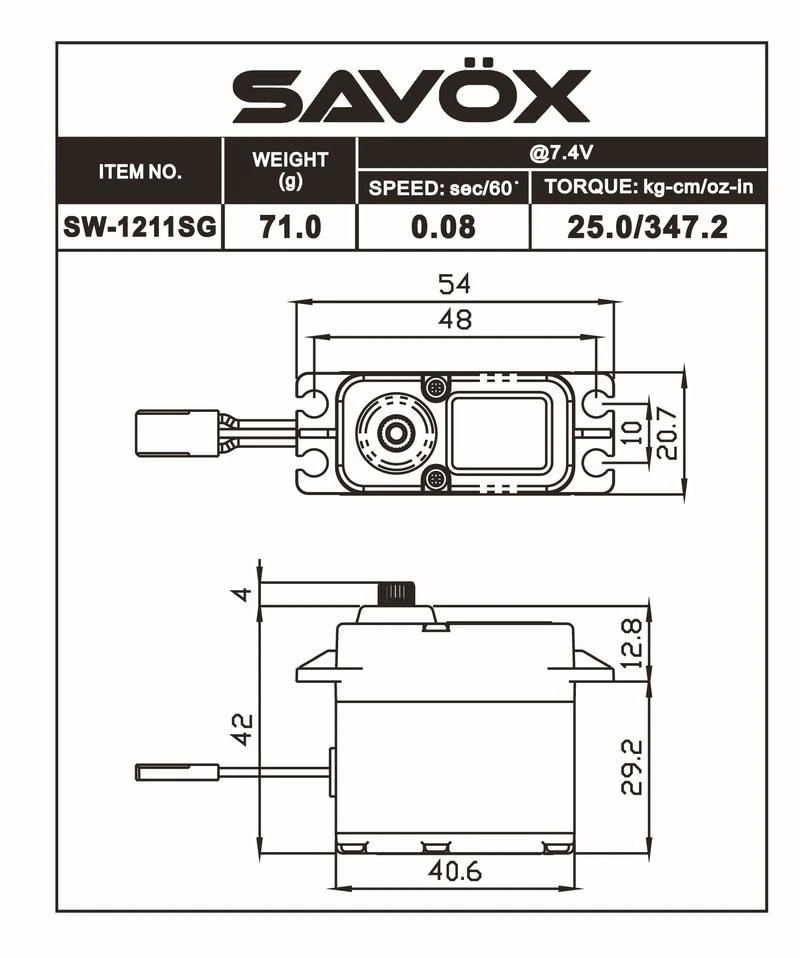

• Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
• Weight: 71.0g
• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 150 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
