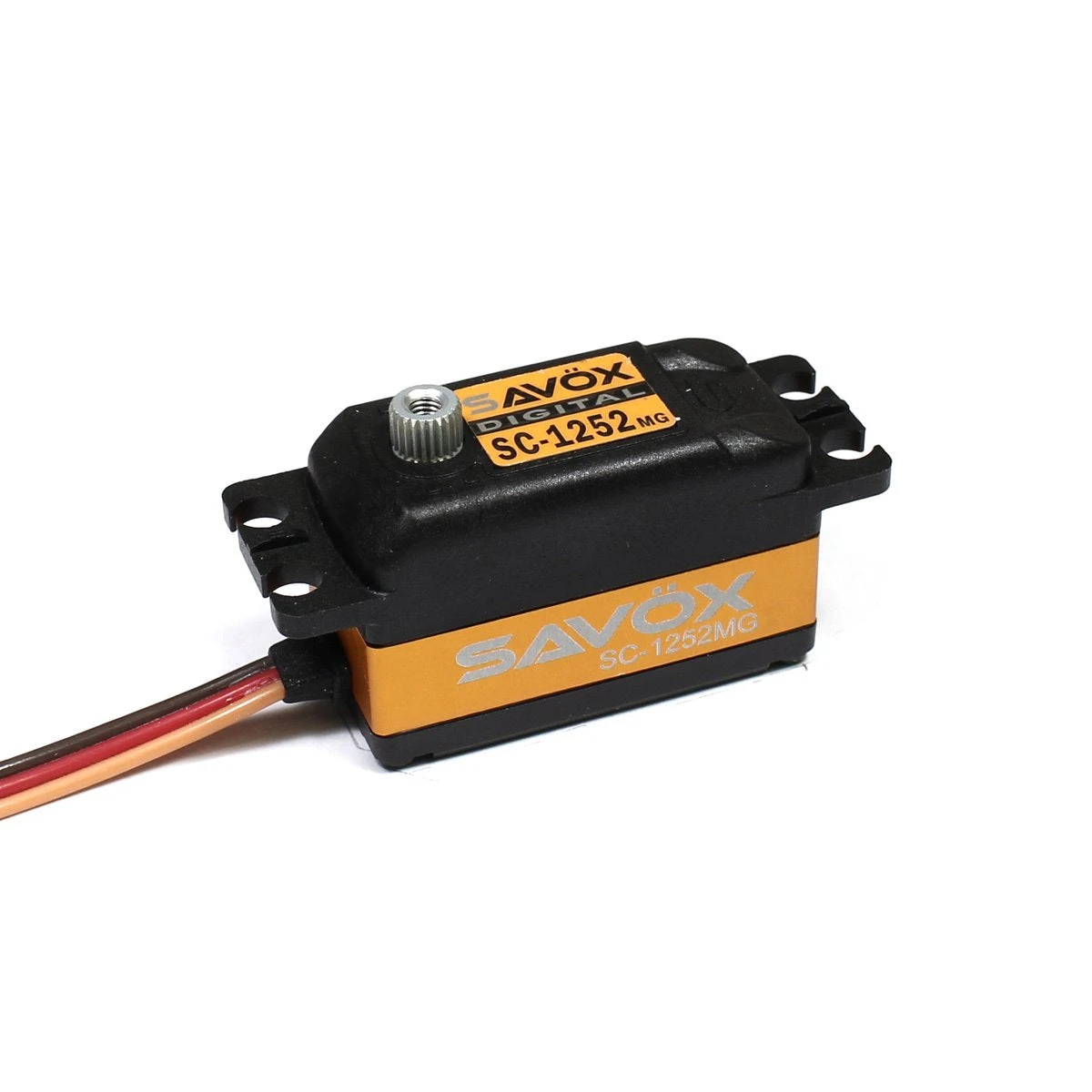

Savox SC-1252MG Low Profile Servo

The SC-1252MG is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.

FEATURES:

• Metal gear train ensures durability under harsh situations.
• Ideal for 1/10 on road vehicles.
• Aluminum case provides cooler operating temperatures.

SPECIFICATIONS:

• Torque @ 4.8v – 4.5kg/62.5oz-in
• Torque @ 6v – 7.0kg/97.2oz-in
• Speed @ 4.8v – 0.08 sec/60 deg
• Speed @ 6v – 0.07 sec/60 deg

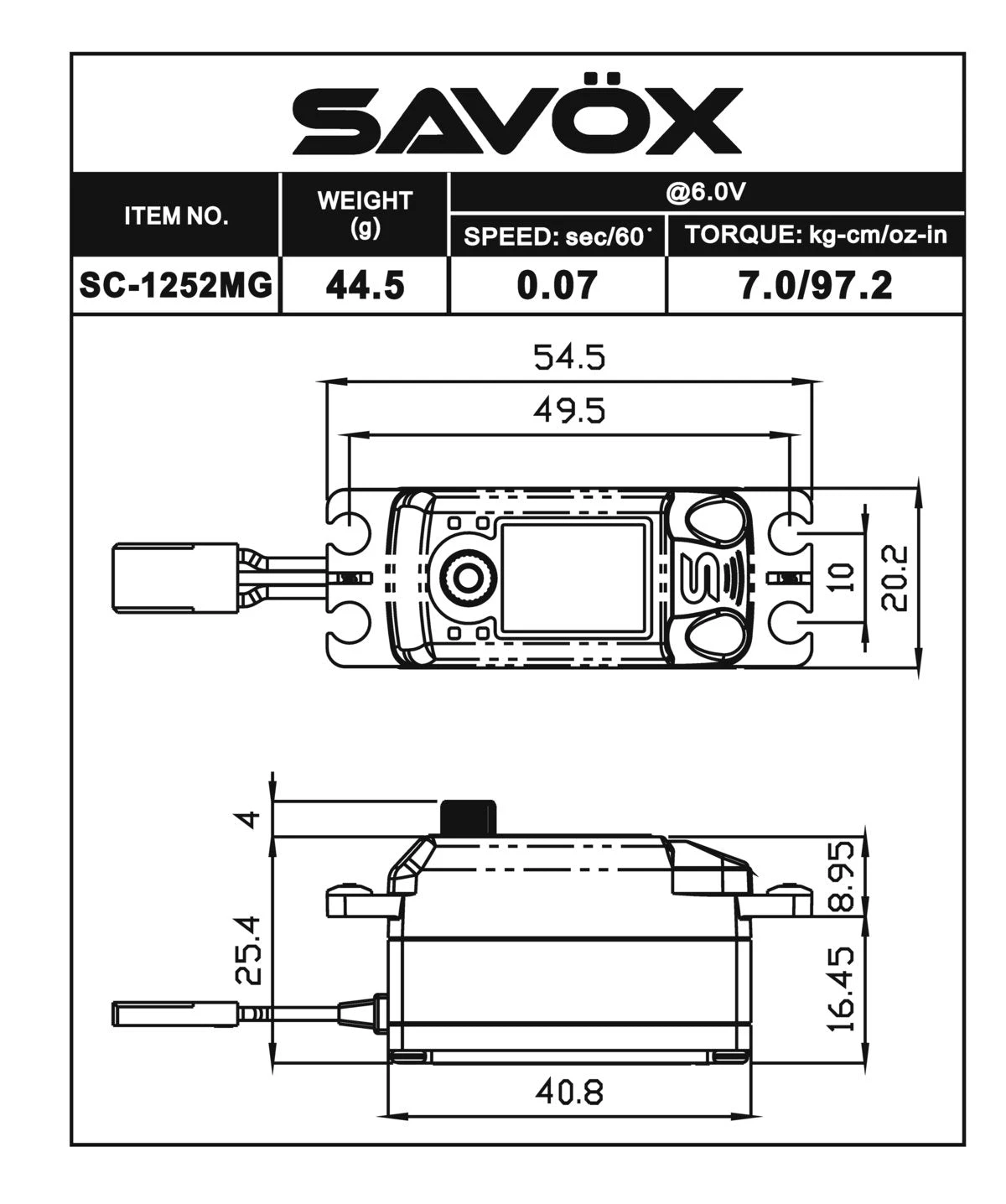

• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 44.5g
• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Appx 160° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
