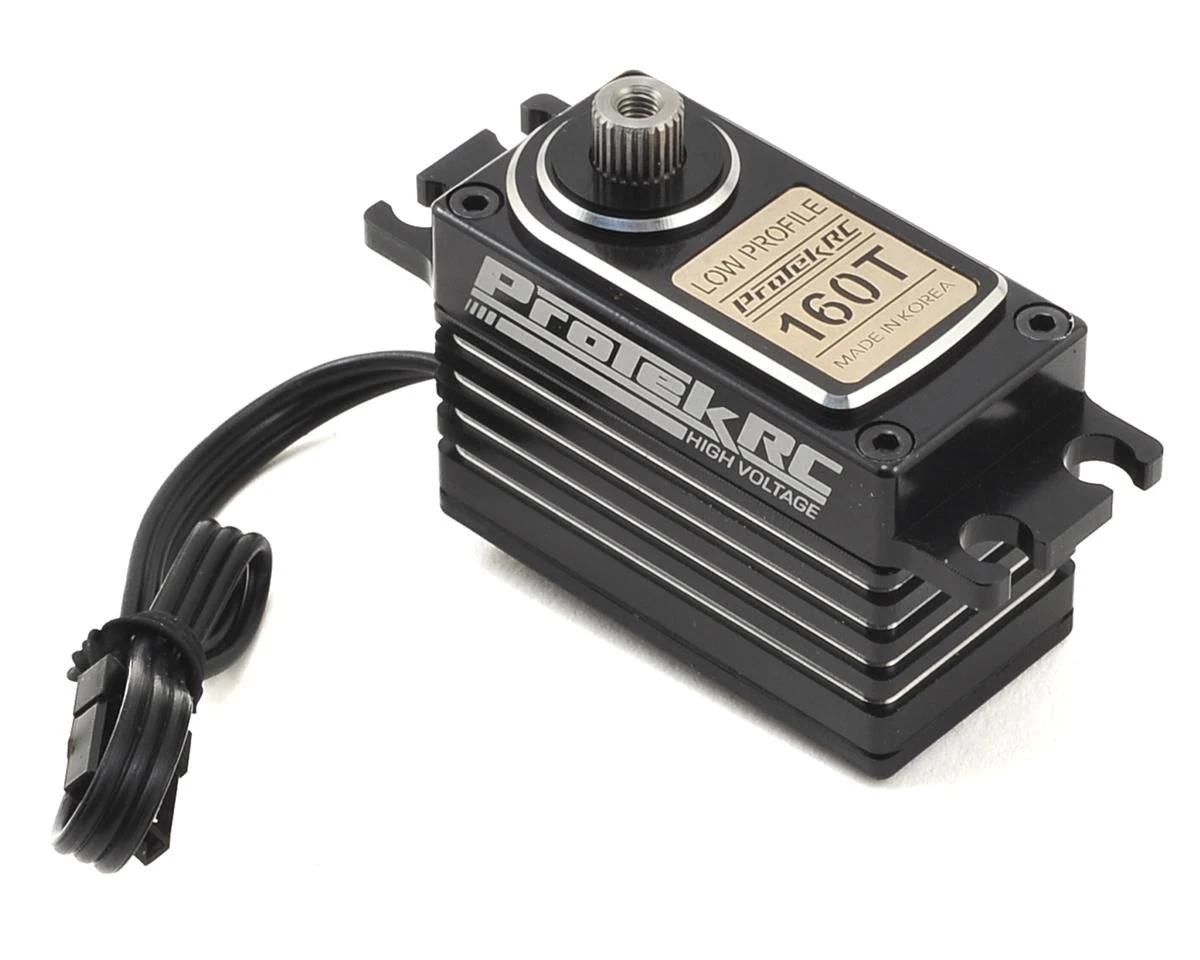

ProTek RC 160T Low Profile High Torque Metal Gear HV Servo

ProTek R/C Servos have been developed to provide enthusiasts with high quality servo’s that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 160T High Voltage Low Profile servo delivers an incredible 216 oz-in of torque and 0.08 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec’s increase to 274 oz-in and 0.06! Spec’s like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.

Plus, instead of a cheap plastic servo horn, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. And for additional rigidity, four blue aluminum servo ear guides are included as alternatives to the rubber grommets. Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don’t look back.

FEATURES:

• Low-Profile case saves space and weight
• Ideal for any 1/12 to 1/10 scale vehicle application
• Full aluminum case
• High voltage circuitry
• 0.08 transit speed, and 216 oz-in of torque @ 6.0V
• 0.06 transit speed, and 274 oz-in of torque @ 7.4V
• Aluminum single arm servo horn
• Full metal gears and dual ball bearings
• 160mm long 22awg connector wire w/gold plated connectors
• Coreless motor

SPECIFICATIONS:

• Servo Model: 160T
• Recommended Application: 1/12 to 1/10 scale Surface
• Operating Voltage: 4.8V – 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.08/60° sec
• Operating Speed @ 7.4V: 0.06/60° sec
• Dynamic Torque @ 6.0V: 216 oz-in (15.5 kg-cm)
• Dynamic Torque @ 7.4V: 274 oz-in (19.7 kg-cm)
• Motor Type: High Efficiency Coreless Motor
• Output Shaft: 25 Tooth
• Gears: Metal
• Weight: 54.5g
• Pulse/Frequency: 1520s / 333hz
