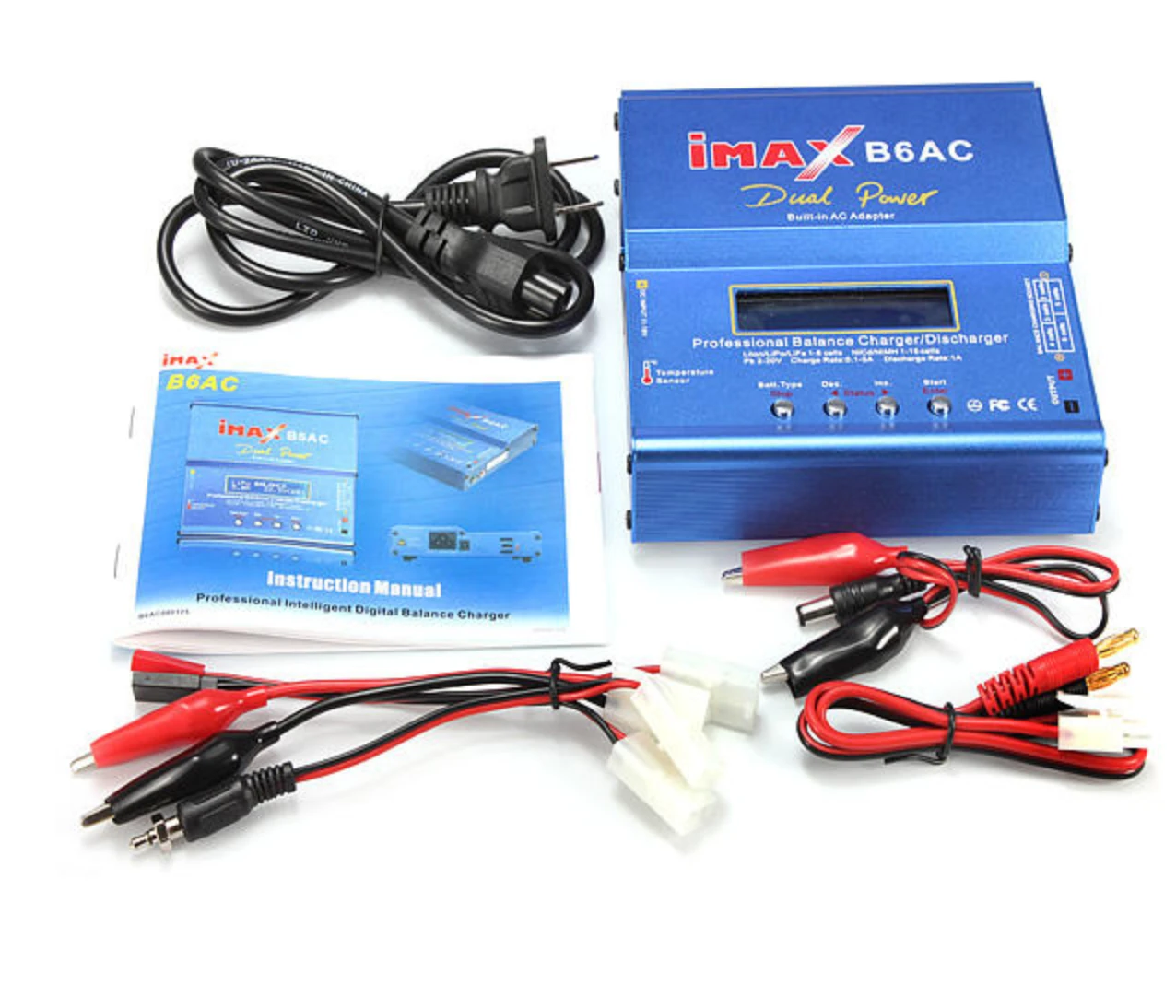

ProLead RC iMAX B6AC 5 Amp LiPo NiMh NiCd LiIon and More RC AC/DC Balancing Charger

This is a perfect charging package for LiPo, LiOn, LiFe, NiMh, NiCd, Pb Batteries!
If you have been searching for just one RC battery charger to handle all of your charging needs, look no further than the iMAX B6AC w/ Built in Power Supply. This charger is AC/DC compatible so it can be plugged into a wall outlet or powered from your power supply or car battery out in the field. This machine can handle charging, discharging, balancing (LiPO/LiON/LiFE cells), cycling and much more. And your charge options are remembered by the charger so it is quick and easy to plug it in and start charging right away.

Optimized operating software
When charging or discharging, the B6AC has an `Auto` function that sets the current automatically. This prevents overcharging of Lithium batteries. Every charging program in the B6AC is controlled with mutual links and communication to eliminate possible errors, introducing maximum charging safety.

High-power and high-performance circuitry
The B6AC employs a circuit that has a maximum output power of 50W.

Cell Balancing
It has an individual-cell-voltage balancer inside. This does not require any extra balancer when charging Lithium batteries (Lilo/LiPO/LiFe) for proper cell voltage balancing.

Lithium Battery `Fast` and `Storage` Modes
Fast charge reduces the charging time of Lithium batteries. Storage mode will charge or discharge the battery to the proper voltage level for when you plan to shelve the battery for an extended period of time.

FEATURES:

• Charges LiPo, LiON, LiFe (1S-6S cells)
• Charges NiMh, NiCd (1-15 cells)
• Charges Lead-Acid (2V-20V)
• Charging, Discharging, Cycling, Balancing (LiPO/LiION/LiFE cells) (1-5 cycles)
• User definable charge rates from 0.1 amps to 5.0 Amps
• 50 Watt max output. Charge Amperage auto adjusts depending on battery voltage. (i.e. Charge rate for 3S LiPo: 50W/11.1V = 4.5A max charge rate)
• Balance Port Built In (Balances 2S-6S Batteries) (Uses Align/E-Flite/CSRC style Balance Plug Port) (Thunder Power adapter available separately, GTP1005)
• Comes with 5 different charging plugs
• Dean’s Plug
• Futaba / Receiver
• JST
• Glow Plug
• Alligator Clip

MENU OPTIONS:

• Lithium (LiPo, LiIo, LiFe)
• Charge
• Balance Charge (Balances cells inside of battery for optimal performance & safety)
• Fast Charge
• Storage Mode (Brings battery to aprox. half charge, best for long term non-use)
• Discharge
• NiMh
• Charge (Auto & Manual Amperage setting)
• Discharge
• Cycle
• NiCd
• Charge (Auto & Manual Amperage setting)
• Discharge
• Cycle
• Pb (Lead Acid batteries such as the battery in your car)
• Charge
• Discharge
• Save Data (Save up to 5 preset battery types w/ charge settings)
• Load Data (Recall the 5 presets and load them for use)
• Program Settings
• Voltage Select (Set the charger to charge LiPo, LiIo, LiFe)
• Check Time
• NiMh Peak Sensitivity
• NiCd Peak Sensitivity
• USB or Tempurature Port (Set the desired use of the side port)
• Waste Time (Down time between cycles)
• Safety Timer (Charge process will stop once time limit reached)
• Capacity Cutoff (Charge process will stop once capacity limit reached)
• Key Beep & Buzzer Setting (On/Off)
• Input Power Cutoff (Charge process will stop if low power source voltage is detected)

SPECIFICATIONS:

• Operating Voltage Range: AC 100 – 240V / DC 11 – 18V
• Circuit Power: Max. 50W for charging, Max. 5W for discharging
• Charge Current Range: 0.1 – 5.0A (Amperage auto adjusts to 50W max based on battery voltage) (50W / Battery Voltage = Max Charge Amperage)
• Discharge Current Range: 0.1 – 1.0A
• Current Drain for Balancing:: 300mAh/cell
• NiCd/NiMH Battery Cell Count: 1 – 15 Cells
• Lithium Battery Cell Count: 1 – 6 Series
• Pb Battery Voltage: 2 to 20V
• Dimensions: 135mm x 144mm x 40mm
