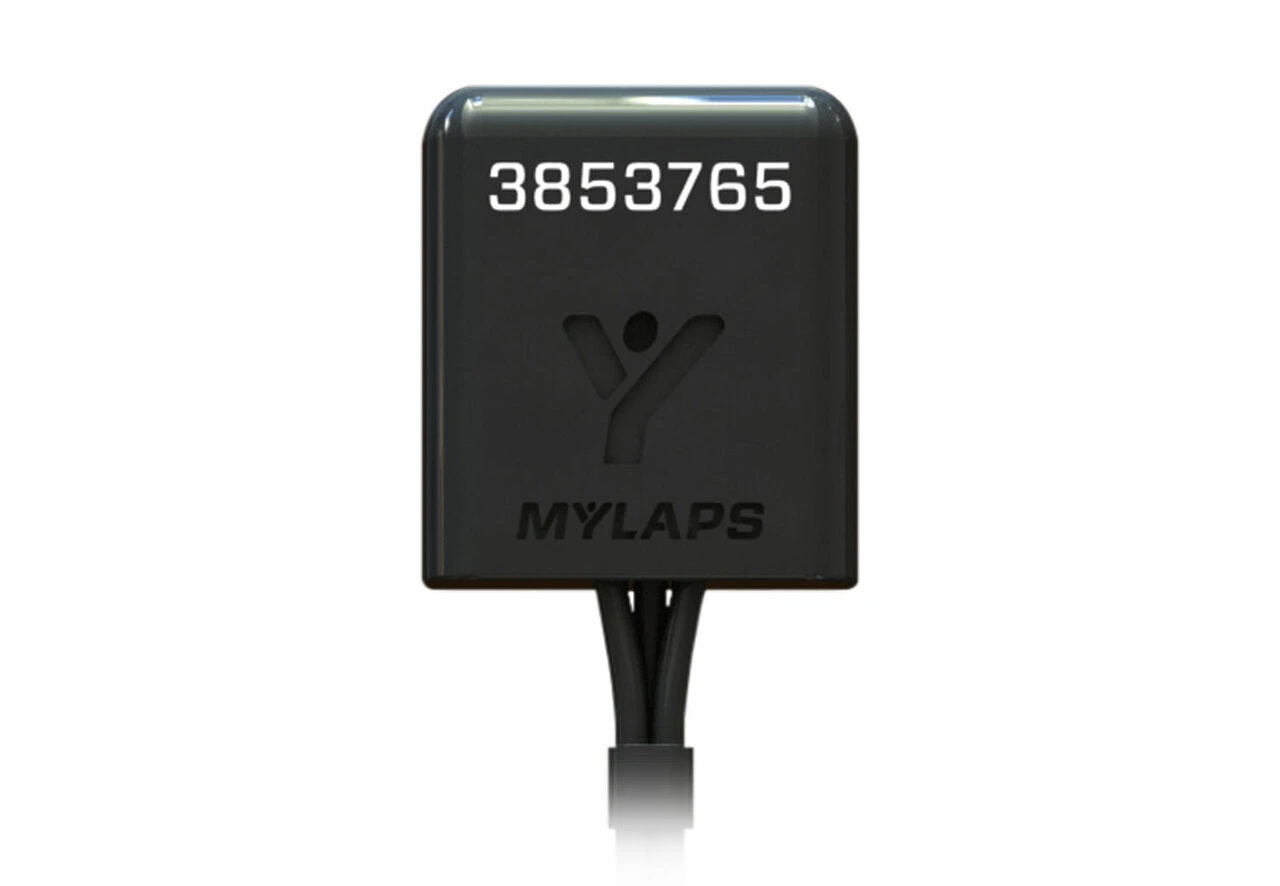

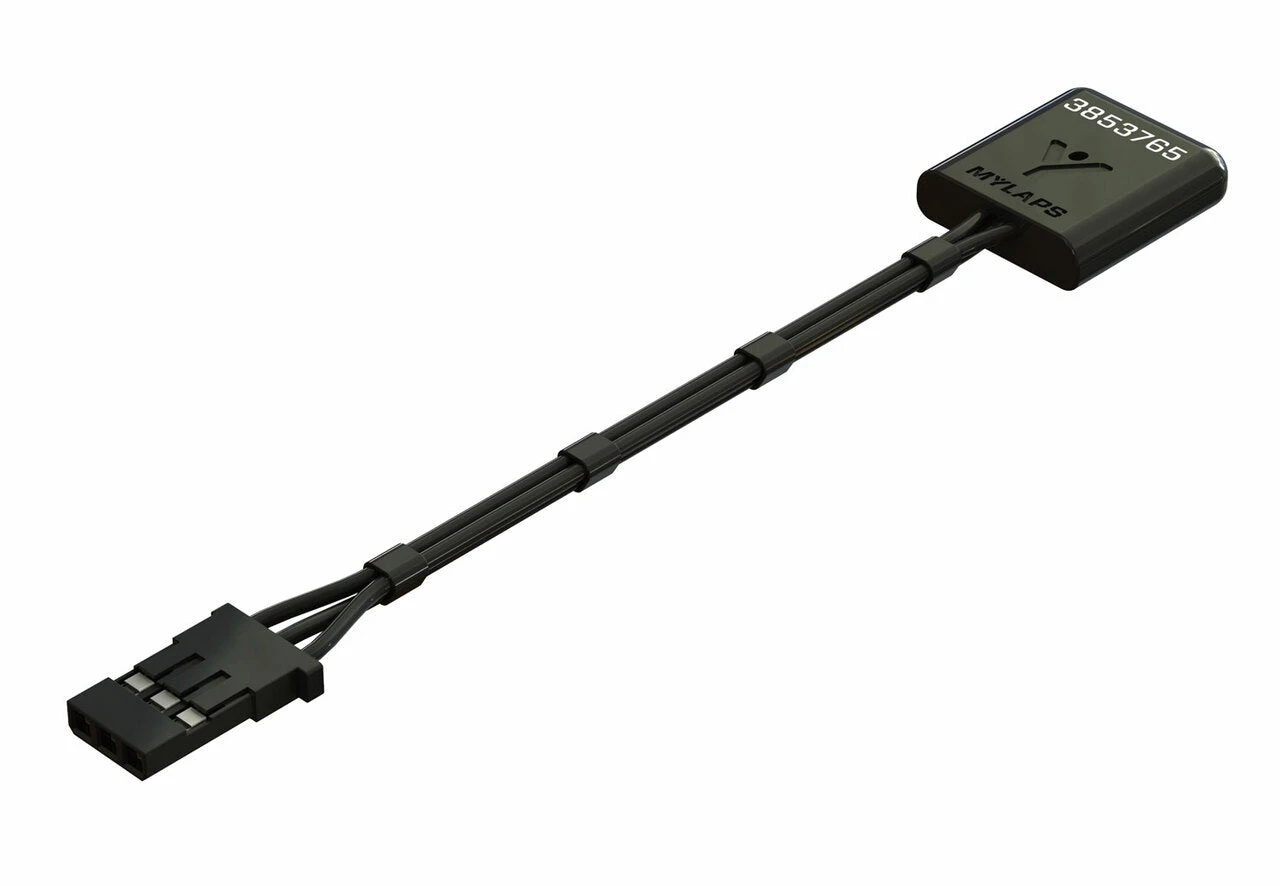

MyLaps RC4 Pro Transponder

3-wire

The RC4 Pro (3-wire) transponder is the latest in the line of transponders from MyLaps. The standard RC4 transponder supports car ID numbers so you can have the same transponder number in all your cars, with a different ID for each. The standard RC4 transponder also gives additional telemetry data such as voltage to the transponder and transponder temperature each time the loop is crossed. The RC4 “Pro” edition transponder features all the same features as the standard RC4 transponder, except it is 25% smaller, lighter, all black with black wires, and shortened lead wires. This transponder will only work on RC4 decoder boxes with version 4 firmware or higher.

SPECIFICATIONS:

• Max speed 120 km/h (75 mph)
• Temperature range 0 – 50 °C (32 – 122 °F)
• Dimensions
• Weight incl. holder 3 g
• Operating voltage 3.0 – 16 VDC
• Humidity Max. 90% relative
• Signal transfer Magnetic induction
• Code resolution 1.5 ms
• Power Feed from free receiver channel (ch3 or batt)
• Connection plug Connect using a standard Servo plug
• Power consumption 14mA @ 6 VDC
• Wire insulation Aerospace/MIL-spec high-temp PTFE (Gasoline/Nitro resistant)
• Quick change holder Yes
• Works with RC4 Timing System only!
• Compatible with Practice RC4 Lite app
