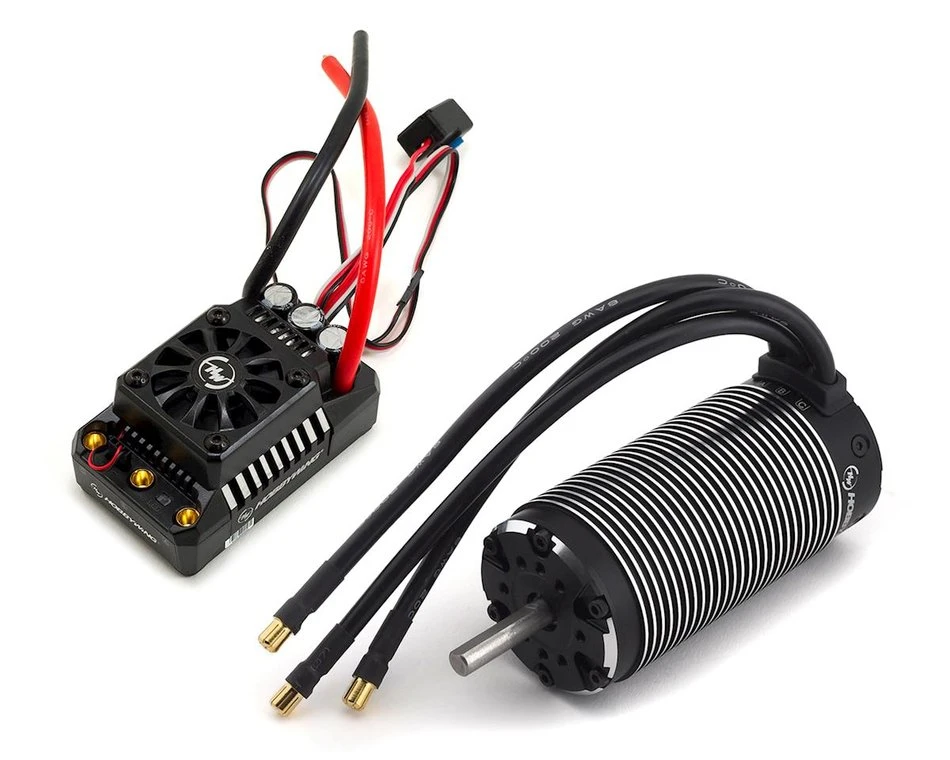

HOBBYWING 38010600 EZRUN SL 56113 800KV Motor with MAX5 ESC – Brushless Combo

EZRun MAX5 V3 Sensorless Brushless ESC & Motor Combo includes the 56113SL 1/5 scale, 800kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.

MOTOR SPECIFICATIONS:

• Model: 56113-800KV
• Pole: 4
• KV (No-load): 800KV
• Resistance: 0.00049 Ω
• Current (No-load): 3.2 A
• Max. Output Power: 5800 W
• Current at the point of M.O.P: 200 A
• Motor Diameter: 56mm
• Motor Length: 113mm
• Shaft Diameter: 8.0mm
• Shaft Length: 31.0mm
• LiPo Cells: 3-8
• Weight: 1210g (42.68oz)
• Application: 1/5th RC Vehicles, Truck/Dragster

ESC SPECIFICATIONS:

• Continuous Current: 200A
• Peak Current: 1,300A
• Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
• Applications: 1/5th Touring Car, Buggy, Truggy and Truck
• Motor Limit: With 8S LiPo/24-Cell NiMH: KV ≤1000 (58110 size motor)
• LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
• Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
• Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
• Size (LxWxH): 93.35×58.12×47.81mm
• Weight: 342g
• Programming Port: FAN /PRG Port
