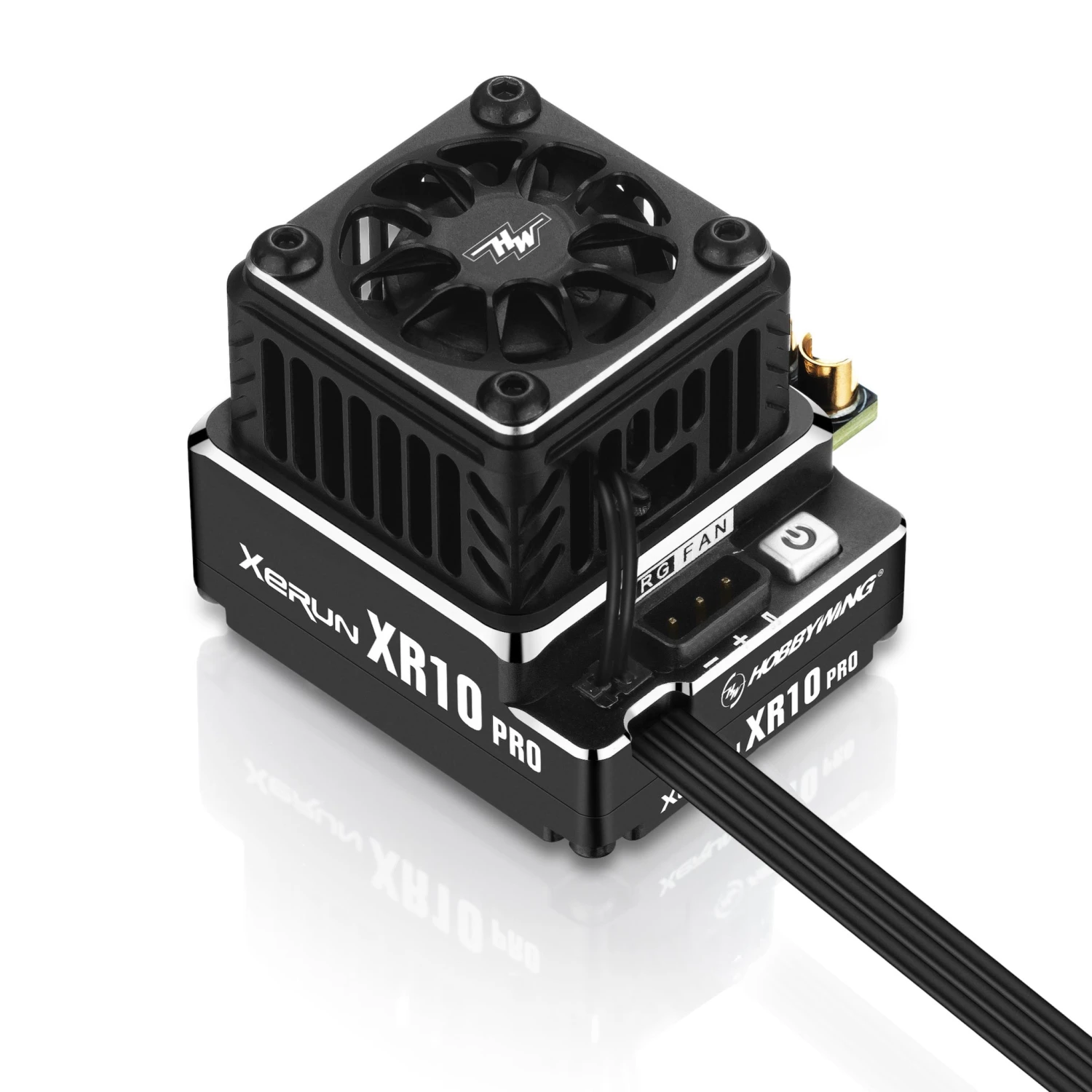

HOBBYWING 30112613 XERUN XR10 Pro G2S Brushless ESC – Stealth

Ultra high performance 32bit M4 microprocessor usage ensures that the ESC is able to deal with anything that even the fastest racers may need. This makes the ESC more precise and have the needed ultra fast response to showcase the hardware and talents of the racer.

HOBBYWING’s patented FCD system. The focus of the XR10 Pro G2S, is the all new, and patented fan technology. Cooling to the ESC increases performance and reliability. The cooler the ESC can stay, the better it works. For many years, racers simply bolted on a larger or faster fan. This did move more air, however it also increased the power demands of the ESC’s internal BEC. This creates internal temperature rises and wear and tear on the ESC’s BEC that lead to reliability and performance losses. By allowing more air to flow through the frameless design, loads from the fan actually go down (less power draw) while the airflow and cooling are increased. This new cooling system ensures maximum airflow with no losses through higher fan power draw.

Durable Frameless Fan -Damage to a fan can be devastating for a racer. Something that Hobbywing’s design team took into serious consideration was creating a fan that did not break even in the most demanding conditions. New design, materials, and guards ensure the fan will live a long healthy life and not be damaged by even the most demanding racers.

FEATURES:

• 32 Bit, M4 microprocessor for ultimate performance
• Frameless fan design for extreme cooling
• Reverse polarity protection
• Precise adjustments to throttle and brake PWM
• Optimized programmable parameters
• Extended brake force
• Drag Brake Acceleration and Softening Function
• High output BEC

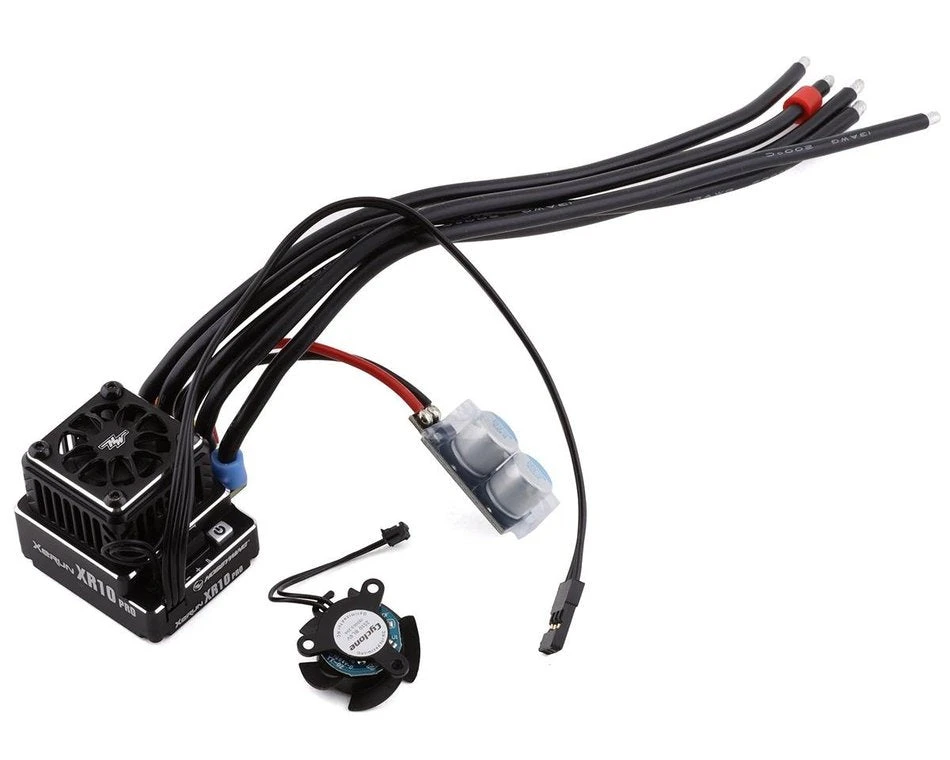

INCLUDES:

• (1) Xerun XR10 Pro G2S 160A Sensored Brushless ESC
• (1) Cooling Fan
• (1) Capacitors
• Decals
• Accessory package

SPECIFICATIONS:

• Wire gauge: 13 AWG Lightweight Ultra-flex (2) power wires & (3) Phase wires
• Application: 1/10th Touring car & Buggy racing, 1/10th drift car & F1
• Cont./Peak Current: 160A/1200A
• Input Voltage: 2S LiPo/4-6S Cell NiMH
• BEC Output: BEC voltage of 5-7.4V
• Programming device: LCD program box/OTA programmer
• Firmware: LCD Program box via USB software (PC only)OTA (iOS / Android)
• Size & Weight: 37.5×30.9×32.5mm (w/Fan & Fan Shroud)
• Weight: 88g (w/ wires)
• Motor spec recommendation: Touring Car T≥4.5T / Buggy: T≥5.5T

*FFD=Frameless Fan Design (Patented)
