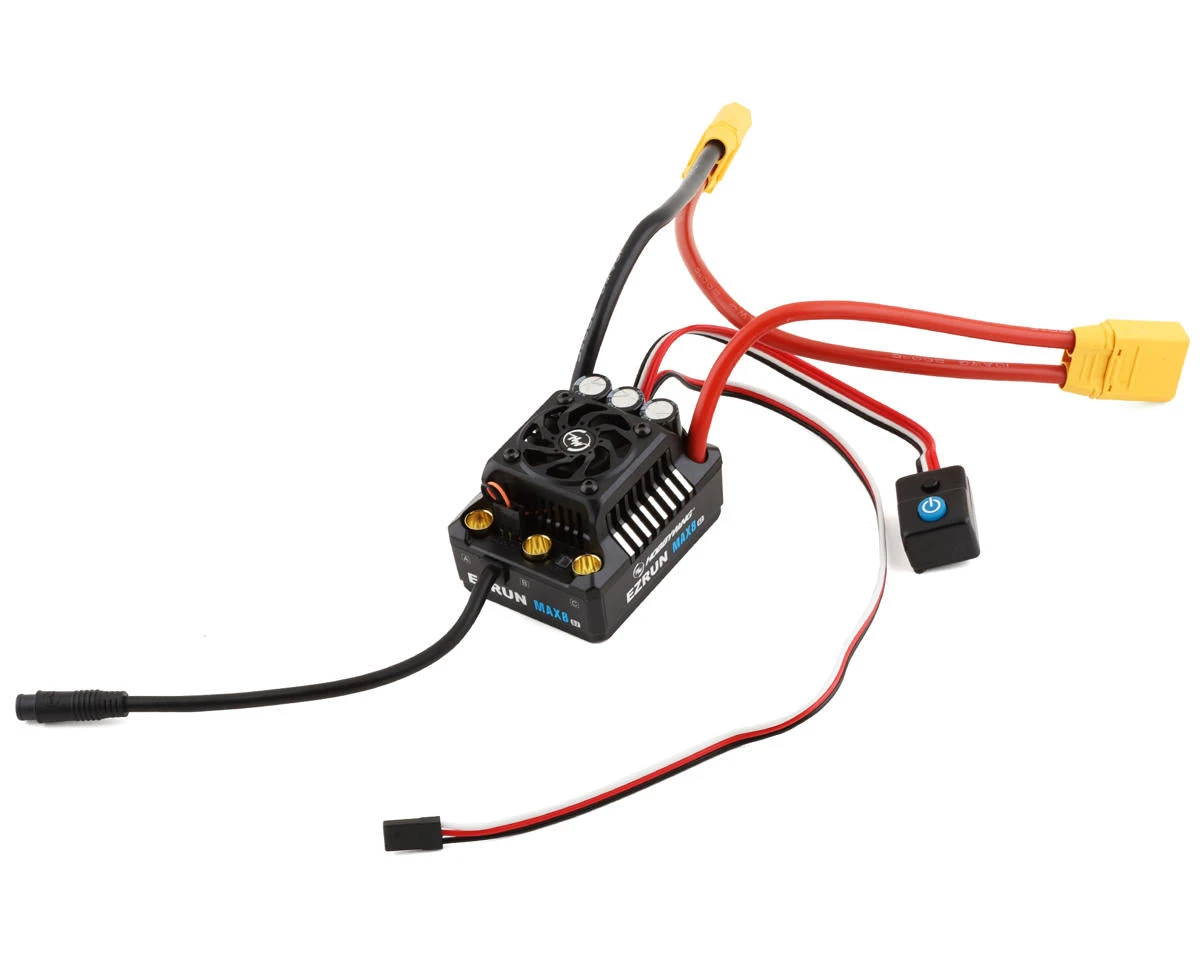

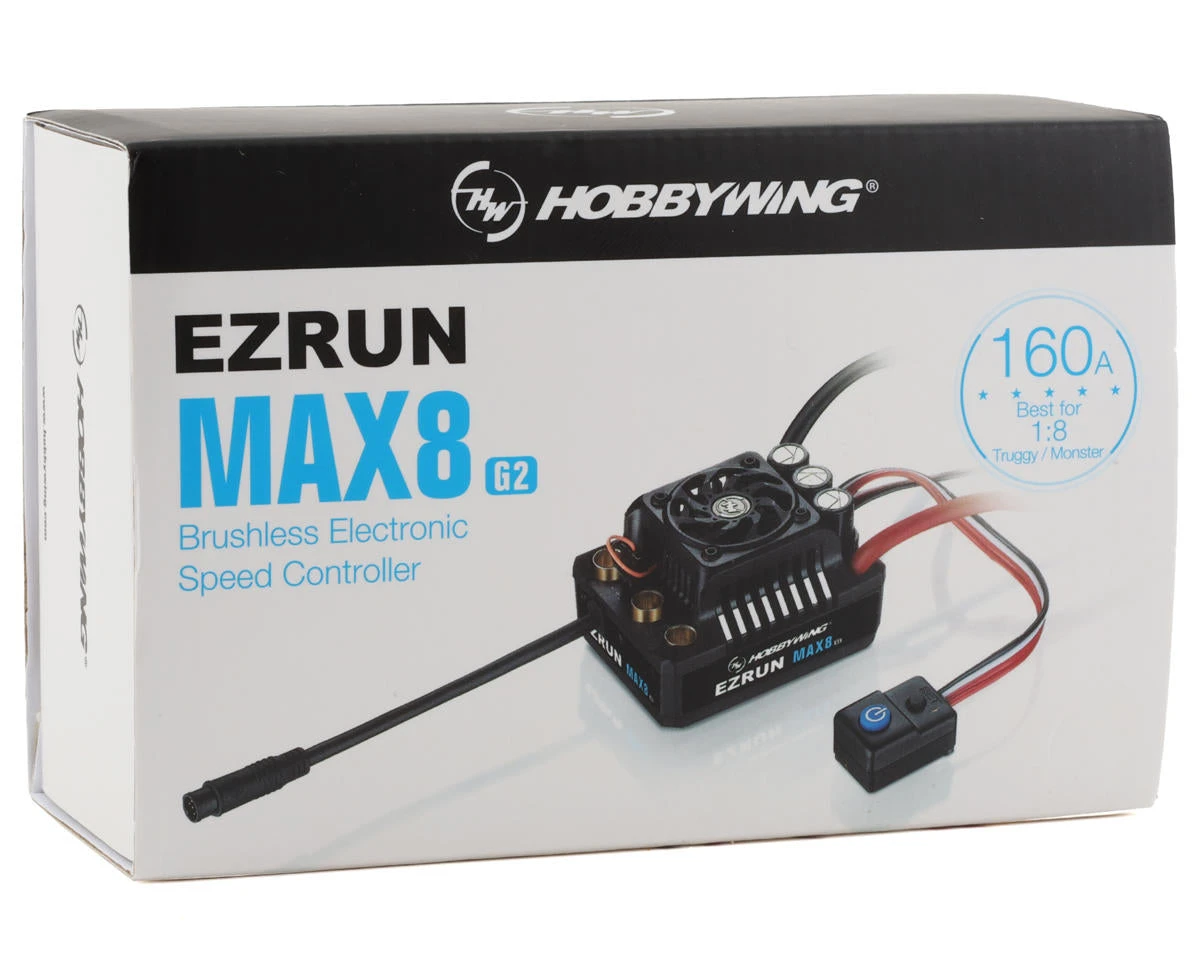

HOBBYWING 30103203 Max8 ESC with XT90 Plugs

The Hobbywing EZRun Max8 G2 Waterproof Brushless ESC with XT90 Plug has been designed to provide aggressive launches, high speed and extreme efficiency. Hobbywing’s own SMART system creates higher drive efficiency at a lower operating temperature. The adjustability of this ESC allows turbo parameters to be adjusted up to 32° when paired with the 4268 or 4278 SD motor. This ESC is dust proof and waterproof allowing to keep the fun going no matter the terrain. These features and functions all lead to a more reliable ESC that is performance driven.

FEATURES:

• Designed specifically for 1/8 Truck or Truggy
• SMART systems allow for lower operating temperatures with greater efficiency
• Turbo adjustable up to 32°
• Dust proof and waterproof
• Updated sensor cable design is compatible with the Hobbywing 4278 G2 and 4268 G2 motors

SPECIFICATIONS:

• ESC:
• Scale: 1/8
• Application: Truck / Truggy
• Voltage: 3-6S
• Continuous Current: 160A
• Peak Current: 1050A
• BEC Output: 6-8.4V @ 6A
• Size: 60x48x40.5mm
• Weight: 192g
• Motors: Sensor or Sensorless
• Motor Size:
• 4S LiPo: Greater than 3000kV
• 6s LiPo: Greater than 2400kV (4278 size motor)
• Fan:
• Size: 30x30x10mm
• Voltage Range: 6-8.4V
