HiTEC 36485 D485HW Wide Voltage Karbonite Gear Servo

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Performance Specifications

• Operating Voltage Range (Volts DC)4.8V ~ 7.4V
• Speed (Second @ 60°)0.20 ~ 0.15
• Maximum Torque Range oz. / in.72 ~ 104
• Maximum Torque Range kg. / cm.4.8 ~ 7.4
• Current Draw at Idle30 mA
• No Load Operating Current Draw320mA
• Stall Current Draw1,500mA
• Dead Band WidthN / A

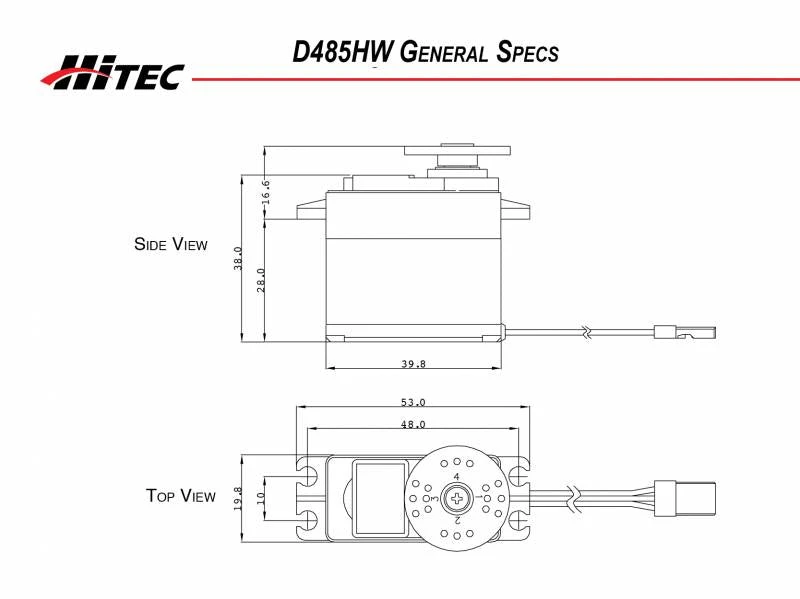

Physical Specifications

• Dimensions (Inches)1.57 x 0.78 x 1.49
• Dimensions (Metric)39.8 X 19.8 X 38.0
• Weight (Ounces)1.59
• Weight (Gram)45.0
• Circuit Type32 bit Programable Digital
• Motor Type3 Pole Cored Carbon Brush
• Gear MaterialMK 1st Gear & 3 Karbonite
• Resin Gears
• Bearing TypeTop Ball Bearing
• Output Shaft (type / Ømm)25 / 6
• Case MaterialPlastic
• Dust / Water ResistanceN / A
• Connector Gauge (AWG) / Strand CountN / A

Radio Control Applications

• ParkflyerN / A
• Sport Plane50 – 64 oz.
• Sailplane 2 meters and up
• 3D PerformanceN / A
• Scale50 – 64 oz
• Electric HelicopterN / A
• Gas HelicopterN / A
• On RoadN / A
• Monster TruckN / A
• BuggiesN / A
• TruggiesN / A
• Short Course / TruckN / A
• CrawlersN / A
• Sail Boat< 1M
• Power Boat1/10th
