Gmade 22307 XD Diaphragm Shocks 75mm Length

2 Pack

This is the Gmade 75mm XD Diaphragm Shock Set.

Features:

• Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys (such as Associated B4/B44 front)
• CNC machined Aluminum shock bodies and caps
• Titanium gray anodized shock bodies and caps
• Lower shock ends includes red anodized aluminum balls
• Fully threaded for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy load shock seal assembly
• Laser engraved for authenticity

Specifications:

• Length (Mounting hole to hole): 75mm
• Shock Body Diameter: 14mm
• Spring Diameter: 19mm
• Spring Length: 40mm
• Full Shaft Travel Range: 17mm (without Rubber bump stop)
• Shaft Diameter: 3.5mm

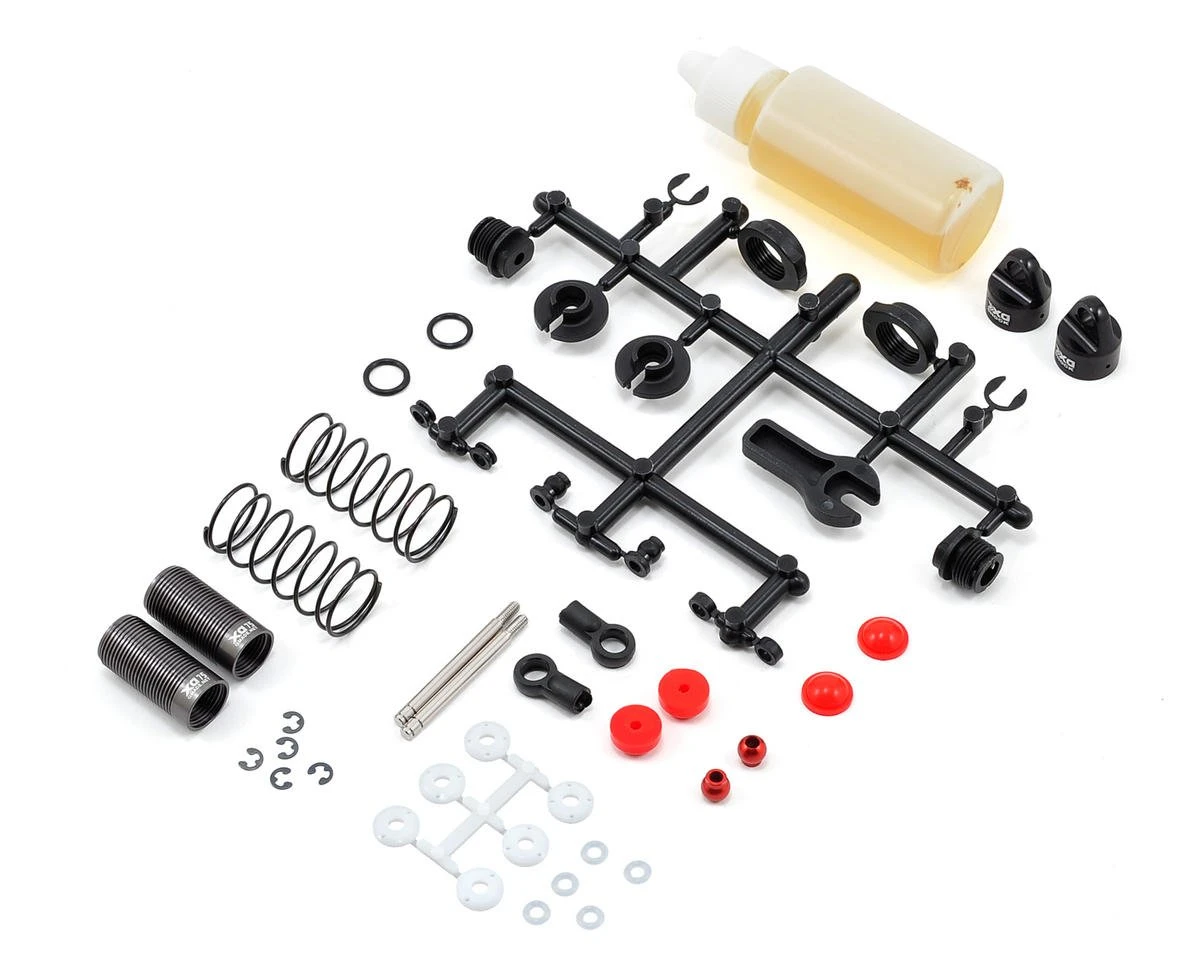

Includes:

• (2) Titanium gray anodized aluminum shock bodies
• (2) Titanium gray anodized aluminum shock caps
• (2) Diaphragms
• (2) Shock springs
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil
