Futaba 1102246-3 R334SBS T-FHSS/SR/S.Bus2 4-Channel 2.4GHz Receiver

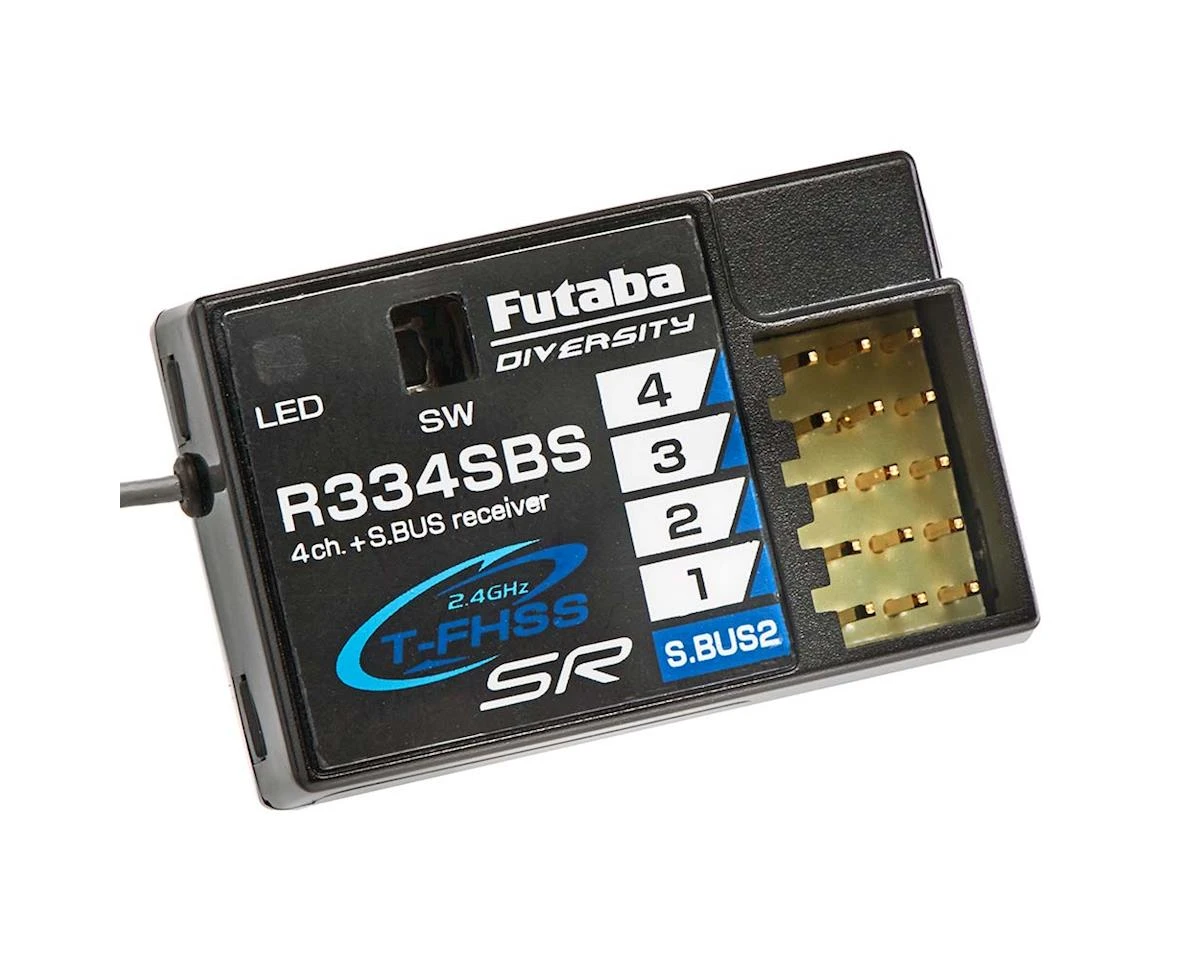

This is the Futaba R334SBS 2.4GHz TFHSS 4-Channel SBus-2 Receiver. The R334SBS is designed for use with the Futaba T-FHSS SR/T-FHSS system transmitter. The R334SBS receiver has adopted the newly developed high-speed response system “T-FHSS SR”.

FEATURES:

• Designed for use with Futaba surface transmitters using TFHSS and
• TFHSS-SR technology
• TFHSS bidirectional telemetry
• Programmable and compatible with S.Bus2 systems
• Normal/high-speed modes (auto detection), normal mode accepts any
• type of servo, high-speed mode only accepts digital servos
• including BLS servos
• High voltage
• Dual antenna diversity
• Battery fail safe
• One year limited manufacturer warranty through Hobby Services beginning at date of purchase

SPECIFICATIONS:

• Operating Voltage: 3.7-7.4V
• Size: 1.3 x 0.88 x 0.44″ (33.9 x 22.3 x 11.3mm)
• Weight: 0.26oz (7.3g)
